VESA Adapter compatible with Huawei Monitor (MateView SE Standard Edition 24) - 75x75mm

1 - 4 | 15,99 € |
5 - 9 | 15,67 € |
10 - 19 | 15,35 € |
20 - 39 | 14,71 € |
> 40 | 14,39 € |
Are you looking for a simple and stable solution to attach your Huawei monitor to a VESA monitor arm or wall mount? Discover our VESA adapter for the Huawei monitor, an uncomplicated and reliable solution for flexibly attaching your screen to a VESA mount. Experience maximum adaptability and stability for your working environment!
Compatibility
This VESA adapter has been specially developed for the following Huawei monitor:
Quality
Our VESA adapters not only impress with their easy installation, but also with their exceptional stability. Thanks to a high-quality stainless steel part, the adapter is particularly robust. Find out more about our product safety standards.
Easy installation
Installing the adapter is very simple: all you have to do is slide it into the monitor mount. You can find all the necessary information in our detailed operating instructions and the PDF version.
Graduated prices
Benefit from our attractive discounts when ordering multiple adapters, both for private customers and for companies.
VESA standard
Our adapter complies with the VESA MIS-D 75x75mm standard, giving you maximum flexibility when positioning your Huawei monitor.
Table of contents
The VESA adapter is compatible with the following HUAWEI products (huawei.com) compatible:
MateView SE Standard Edition 24
With the VESA adapter, you can easily attach your HUAWEI monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the supplied screws and nuts for this.
Direct wall mounting is NOT possible, as the VESA adapter already contains metric threads through which no screws can be inserted for mounting to the wall.
Here you can download the manual as a PDF
![]() |
Please read this manual carefully and keep it for future reference. If you pass the product on to third parties, this manual should always be included. Ignoring these instructions may result in injuries or damage to people and products, for which we cannot accept any liability. |
||||||
IMPORTANT - KEEP FOR FUTURE REFERENCE.
• The use of this product should always be in accordance with the specified safety instructions.
• Do not install your VESA adapter in combination with the monitor in places where people are located below.
• Do not exceed the maximum weight of the compatible monitor models, as this may result in serious injuries or property damage.
• Pay attention to the maximum ambient temperature of 35°C when using the product.
• Do not mount the VESA adapter near a heat source or in direct sunlight, as this may cause the adapter to overheat.
• Check if your mounting point (e.g., monitor arm) can support the weight of the monitor with the VESA adapter.
• The product is designed exclusively for mounting with a hole pattern of 75x75 / 100x100mm / 200x200mm.
• After installing the VESA adapter, the position of the monitor must be readjusted to ensure proper ergonomics.
⚠ WARNING
Ensure that the device is turned off and disconnected from the power supply before installation to avoid possible injuries or damage.
Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.
⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.
2.1 Maintenance
- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.
2.2 Cleaning
- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.
For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.
3idee S.à r.l.
19 Rue de Bitbourg
L-1273 Luxembourg
Luxembourg
mail: info@3idee.eu
If you need help with your article, we are here for you. We also appreciate any feedback.
https://help.3idee.eu/en/contact

4x M4x14 screw with cross recess (SP2)

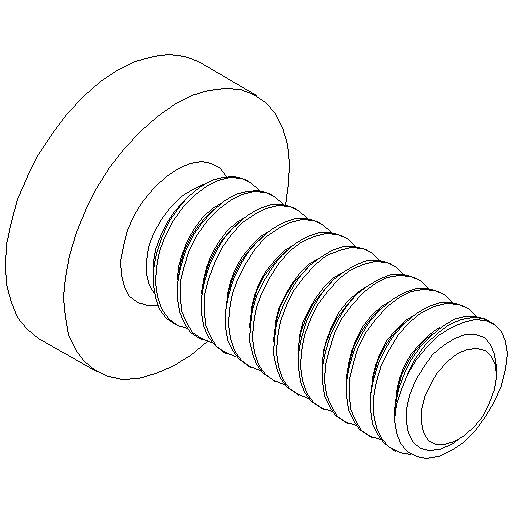

2x M4x10 screw with cross recess (SP4)
Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly.
We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.
However, monitors are designed for horizontal alignment by default.
Horizontal Mounting: YES

Vertical Mounting: YES

Place your HUAWEI monitor on a safe, soft surface to avoid damaging it during assembly.
In the next step, we start by removing the stand.

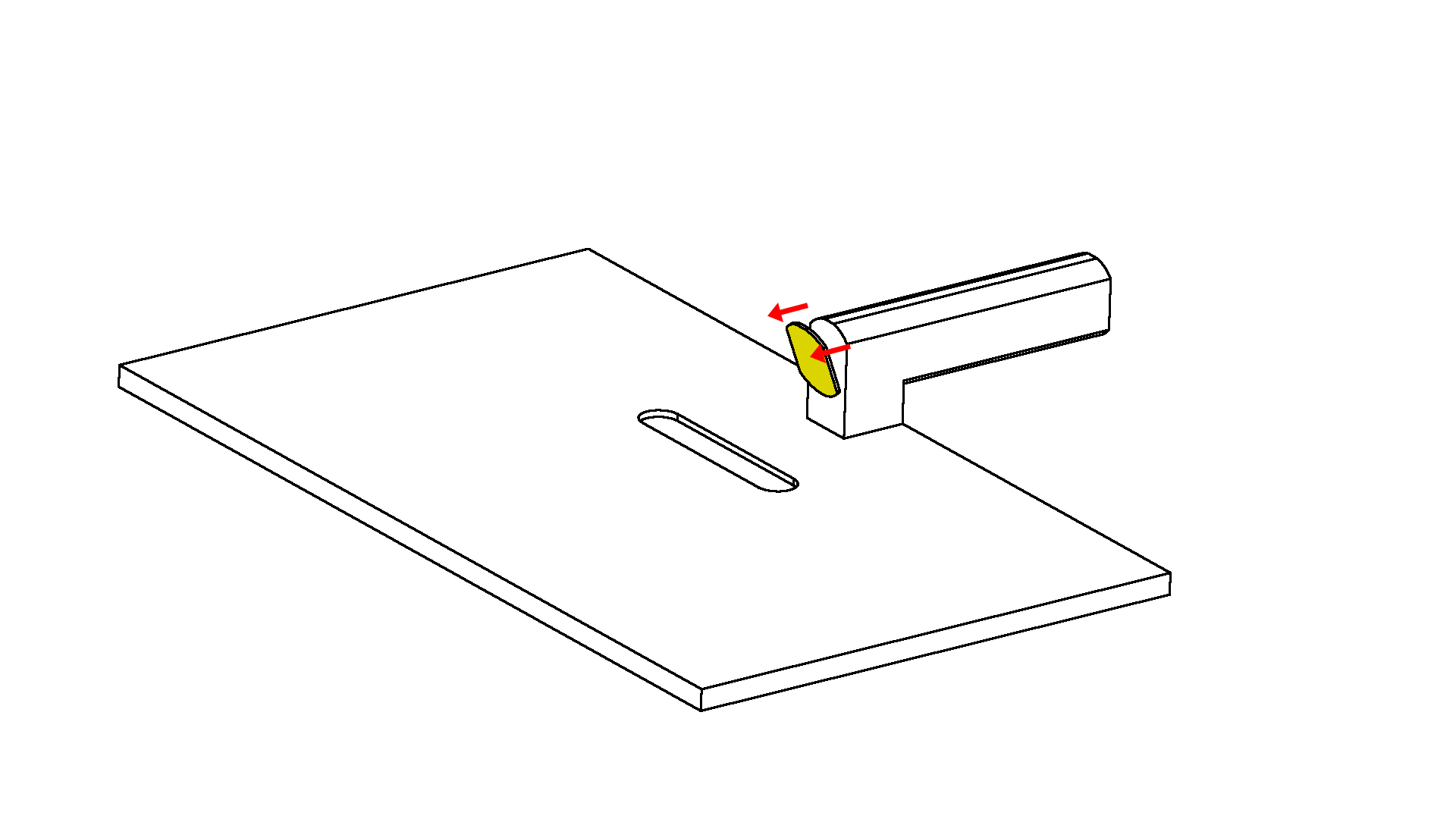

To do this, loosen the plastic cover with your fingernail as shown. (Figure 1)
K_hw-se24-pic1.jpg)

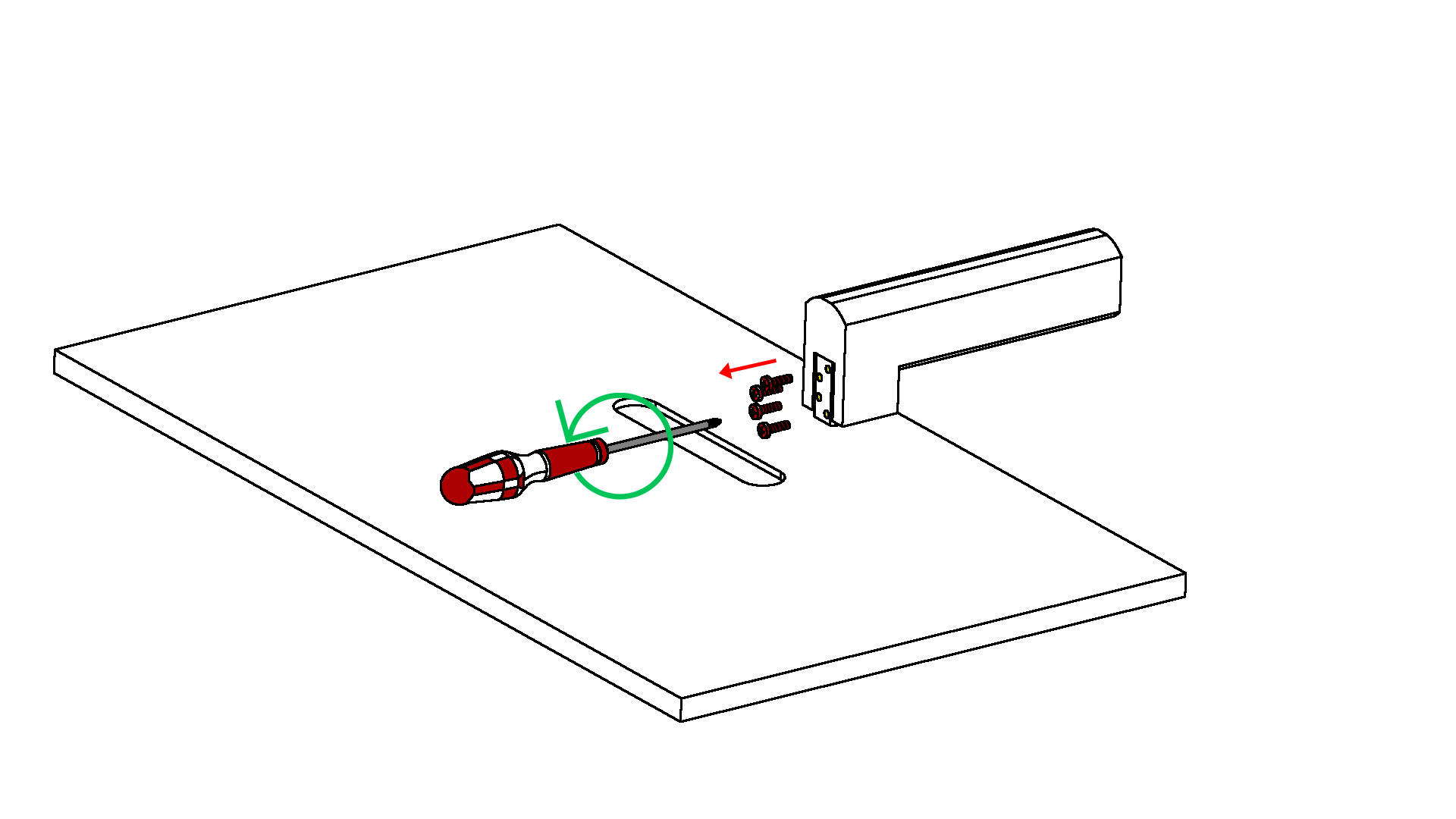

Now loosen the 4 screws as shown. (Figure 2)
K_hw-se24-pic2.jpg)

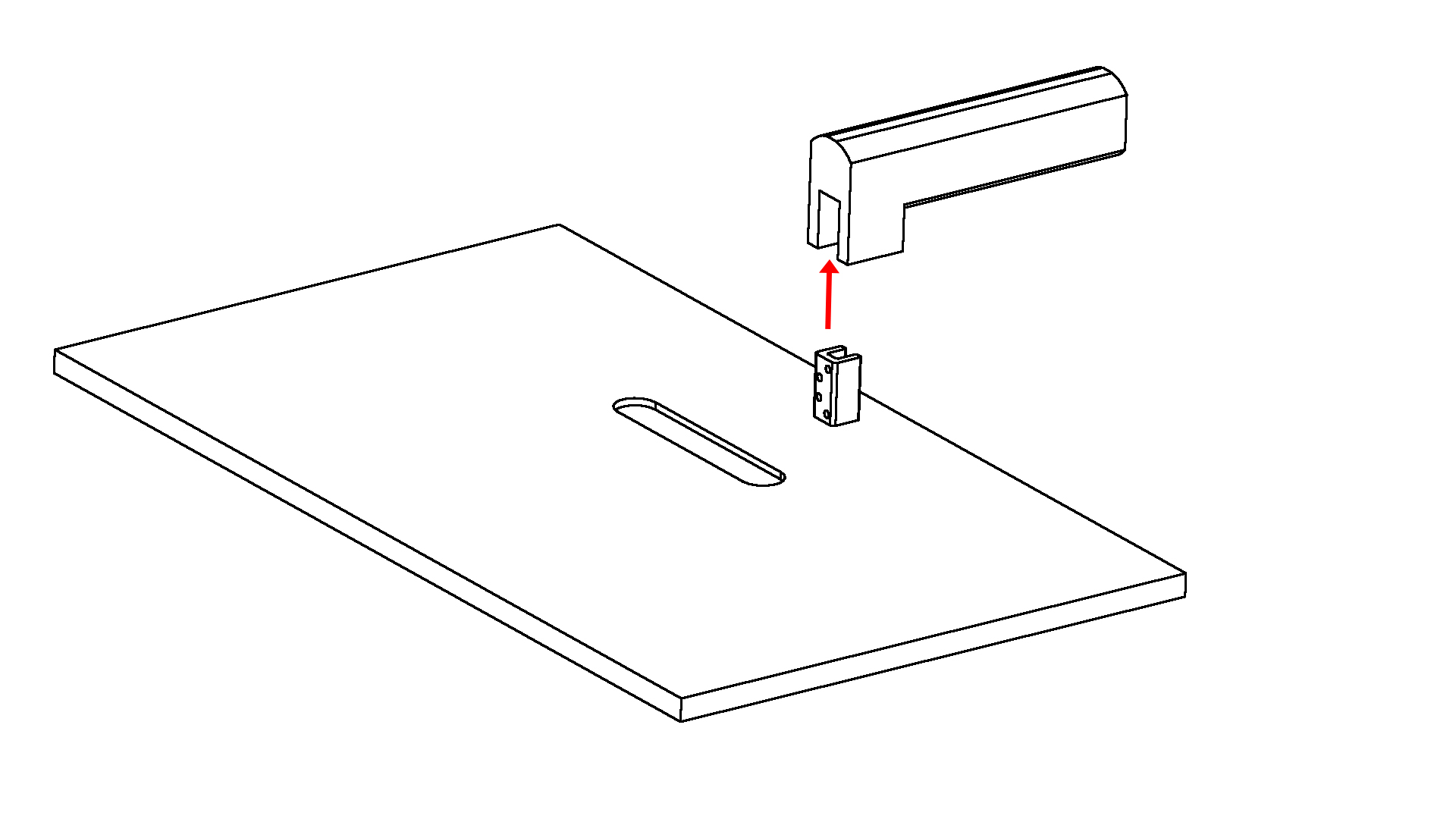

Now remove the stand from your monitor as shown.
(Figure 3)
K_hw-se24-pic3.jpg)

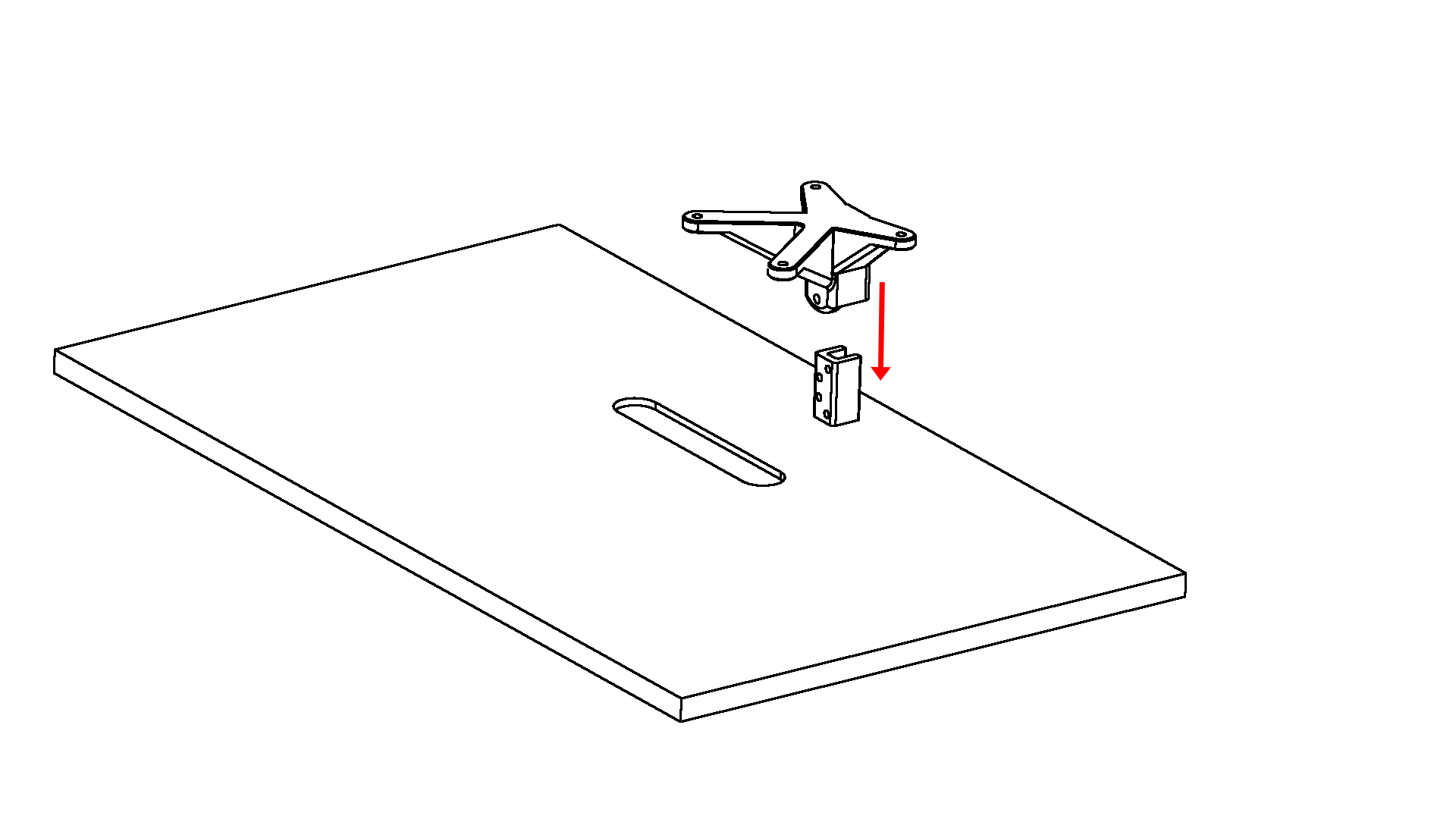

Now attach the VESA adapter to the monitor as shown. (Figure 4)
K_hw-se24-pic4.jpg)

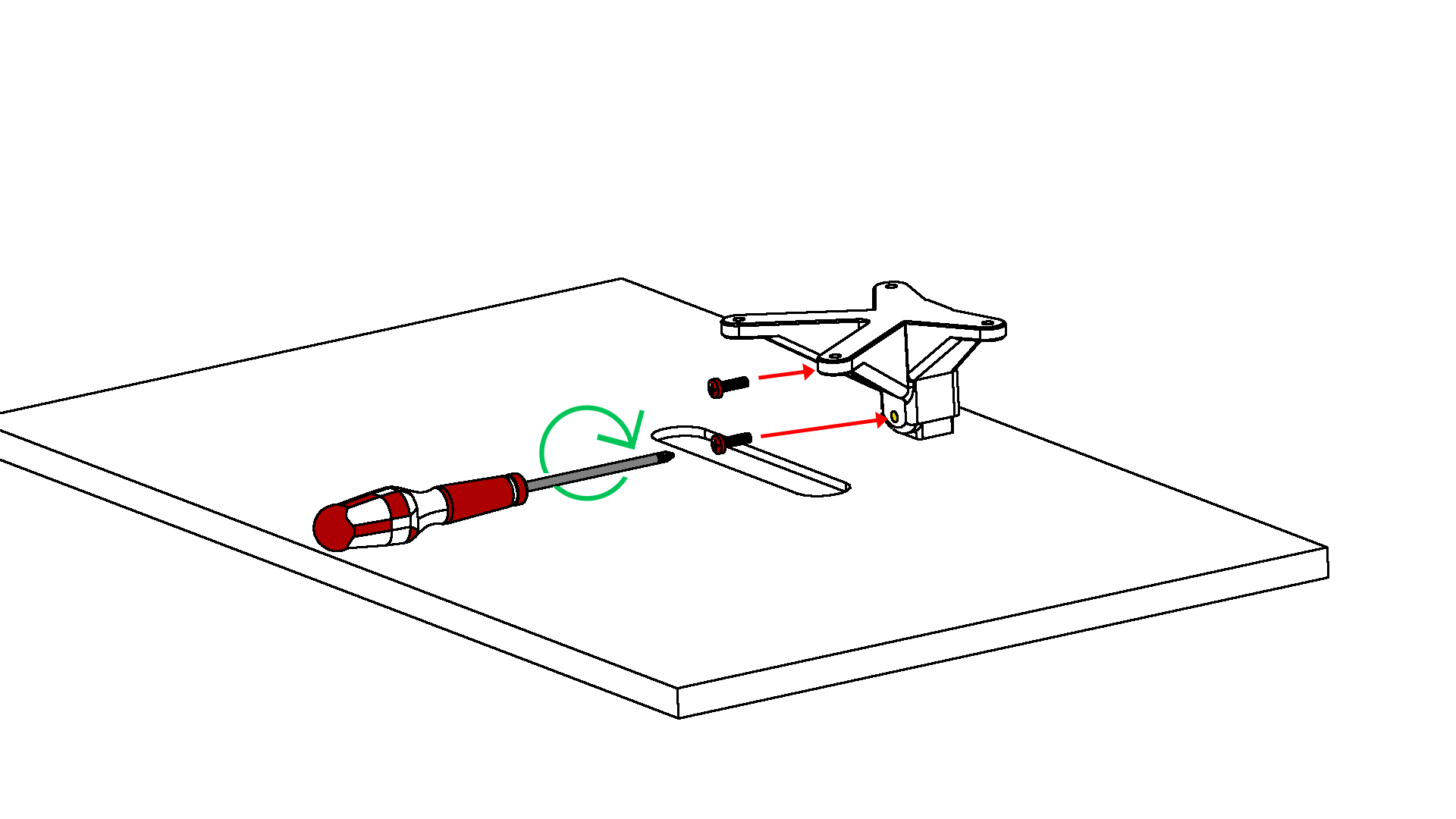

Now use 2x M4x10 from the SP4 bag and attach the VESA adapter to your monitor. (Figure 5)
K_hw-se24-pic5.jpg)
⚠ Important: If the instructions in this step are not suitable for your device, please follow the mounting guidelines of the manufacturer of your monitor arm or swivel arm to mount the monitor to the wall or swivel arm.
We recommend a second person for this step.

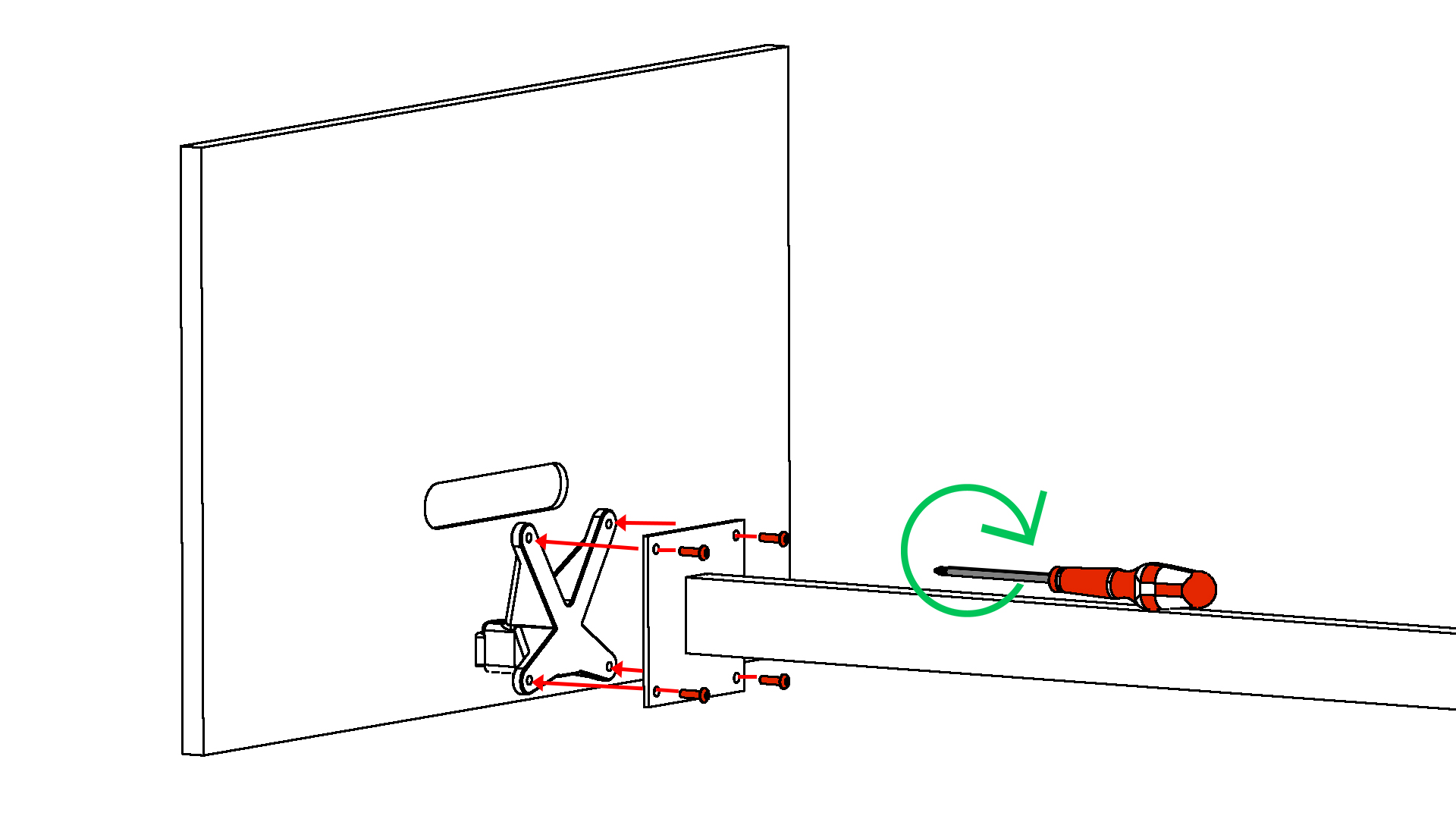

Now lift the monitor and hold it against your monitor mount. Attach the VESA adapter using the 4 M4x14 screws supplied (screw bag: SP2).
It is best to fasten 2 screws diagonally first so that the monitor can no longer fall down and you can fasten the remaining screws easily.
ATTENTION: Make sure you use the right screws!
(Figure 3)
K_hw-se24-pic6.jpg)

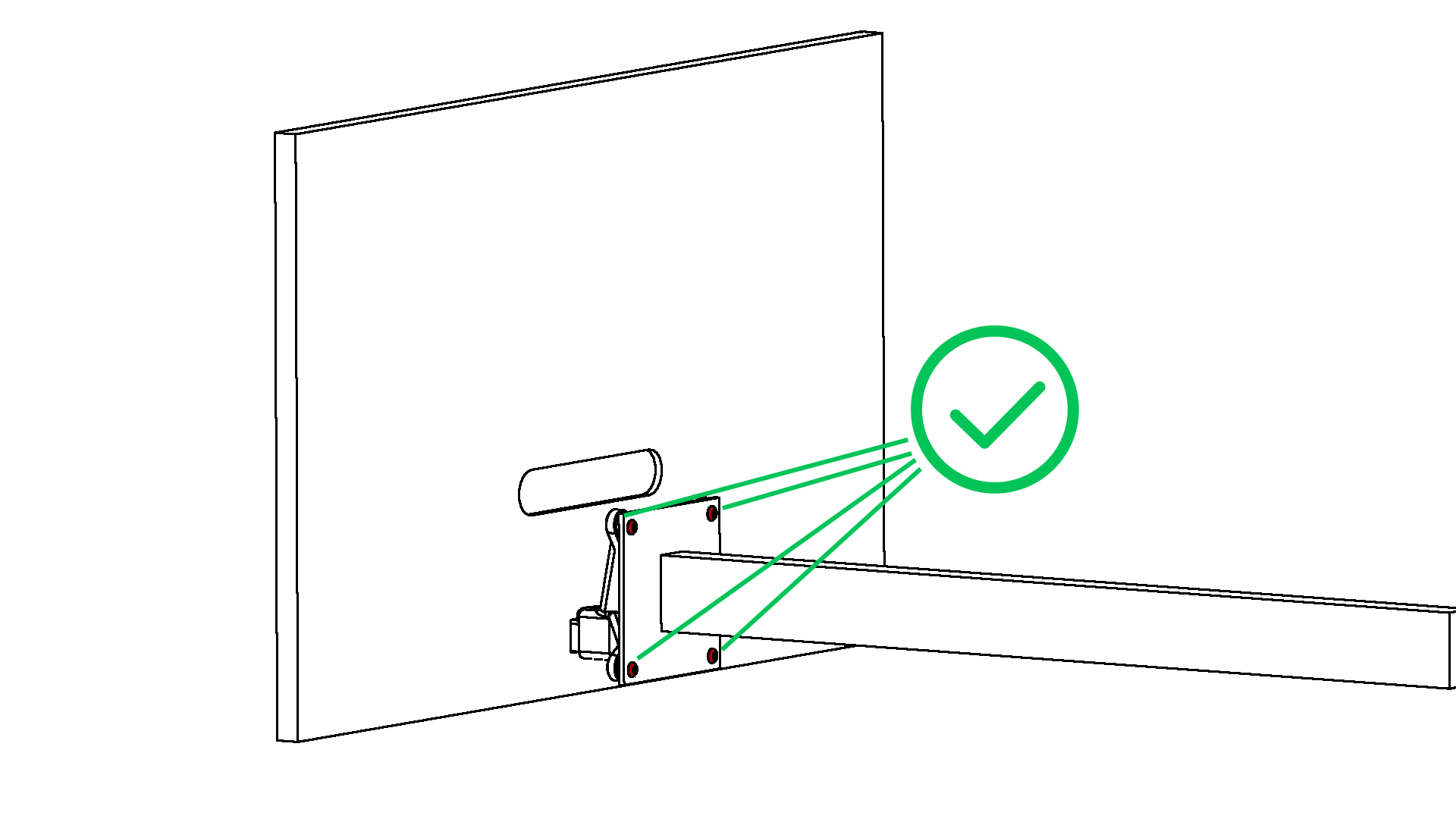

Please check that all 4 screws are firmly tightened. (Figure 7)
K_hw-se24-pic7.jpg)
