VESA Adapter  /  HP Omen

VESA adapter compatible with Omen by HP 25 (Z7Y57AA) Monitor - 75x75mm

(4 reviews)
3idee Your gaming area, your rules: The VESA adapter for the HP Omen 25 brings flexibility and space.
SKU:
AV1079
EAN:
5430002906355
Manufacturer:
3idee
Graduated prices:
1 - 4 14,74 €
5 - 9 14,45 €
10 - 19 14,15 €
20 - 39 13,56 €
> 40 13,27 €
14,74 €
incl. VAT, plus Shipping
In stock

Support

E-Mail:

Mon - Fri: 09:00 - 16:00

Payment methods

Paypal amazon pay Visa Mastercard American Express Discover Diners Club Carte Bancaire JCB UnionPay eps iDeal bancontact Przelewy24

Shipping

DHL DHL Warenpost GLS UPS Amazon Logisticx

Get the most out of your HP Omen 25 gaming monitor by making it VESA-ready with our 75x75mm VESA adapter. Easily attach it to a VESA mount and immerse yourself in a customized gaming experience.

Compatibility

This VESA adapter is specifically designed for the following HP Omen:

25 inch
  OMEN 25 (Z7Y57A9)
  OMEN 25 (Z7Y57AA)

Quality

Our VESA adapter stands for quality and stability. Each adapter is individually tested to ensure maximum load. Learn more about our product safety standards.

Easy installation

Installation is child's play. The monitor is simply clicked into the VESA adapter. All necessary screws are included in the scope of delivery. A detailed instruction manual and PDF version are available.

Graduated prices

Benefit from attractive discounts when ordering more than one adapter as a private customer and company.

VESA standard

Our adapter complies with the MIS-D VESA standard 75x75mm, giving you maximum flexibility when positioning your monitor.

The VESA adapter is compatible with the following products from hp (hp.com):

OMEN 25 (Z7Y57A9)

OMEN 25 (Z7Y57AA)

With the VESA adapter, you can easily attach your HP monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the supplied screws and nuts for this.

Direct wall mounting is NOT possible, as the VESA adapter already contains metric threads through which no screws can be inserted for mounting to the wall.


Here you can download the manual as a PDF

Download as PDF

  • Maximum monitor weight: 7 kg / 15.4 lbs
  • VESA standard compatibility: 75x75 mm
  • Material: plastic
  • Pivot angle: not compatible
  • Maximum operating temperature: 35°C / 95°F
  • Maximum ambient temperature: 35°C / 95°F

⚠ WARNING

Exceeding the maximum load capacity, operating temperature or ambient temperature can lead to serious injury or damage.

Please read this manual carefully

Please read this manual carefully and keep it for future reference. If you pass the product on to third parties, this manual should always be included. Ignoring these instructions may result in injuries or damage to people and products, for which we cannot accept any liability.

IMPORTANT - KEEP FOR FUTURE REFERENCE.

The use of this product should always be in accordance with the specified safety instructions.
Do not install your VESA adapter in combination with the monitor in places where people are located below.
Do not exceed the maximum weight of the compatible monitor models, as this may result in serious injuries or property damage.
Pay attention to the maximum ambient temperature of 35°C when using the product.
Do not mount the VESA adapter near a heat source or in direct sunlight, as this may cause the adapter to overheat.
Check if your mounting point (e.g., monitor arm) can support the weight of the monitor with the VESA adapter.
The product is designed exclusively for mounting with a hole pattern of 75x75 / 100x100mm / 200x200mm.
After installing the VESA adapter, the position of the monitor must be readjusted to ensure proper ergonomics.

⚠ WARNING
Ensure that the device is turned off and disconnected from the power supply before installation to avoid possible injuries or damage.

1. Before First Use

Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.

⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.

2. Maintenance and Cleaning

2.1 Maintenance

- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.

2.2 Cleaning

- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.

3. Waste Disposal

For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.

4. Manufacturer Information

3idee S.à r.l.
19 Rue de Bitbourg
L-1273 Luxembourg
Luxembourg

mail: info@3idee.eu

5. Help and Feedback

If you need help with your article, we are here for you. We also appreciate any feedback.

https://help.3idee.eu/en/contact

M4x14 Screw with cross recess (SP2)

4x M4x14 Screw with cross recess (SP2)

⚠ NOTE: Not all VESA adapters and monitors are designed for a vertical (portrait) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can be quickly exceeded if not mounted properly.

We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

By default, however, monitors are designed for a horizontal orientation.

Horizontal Mounting: YES

hp2x-o VESA Adapter (V2)

Vertical Mounting:  YES

hp2x-o VESA Adapter (V2)
Step 1

Please remove the base of your monitor if it is already attached by pressing the "button" on the bottom to pull out the base.


Step 2

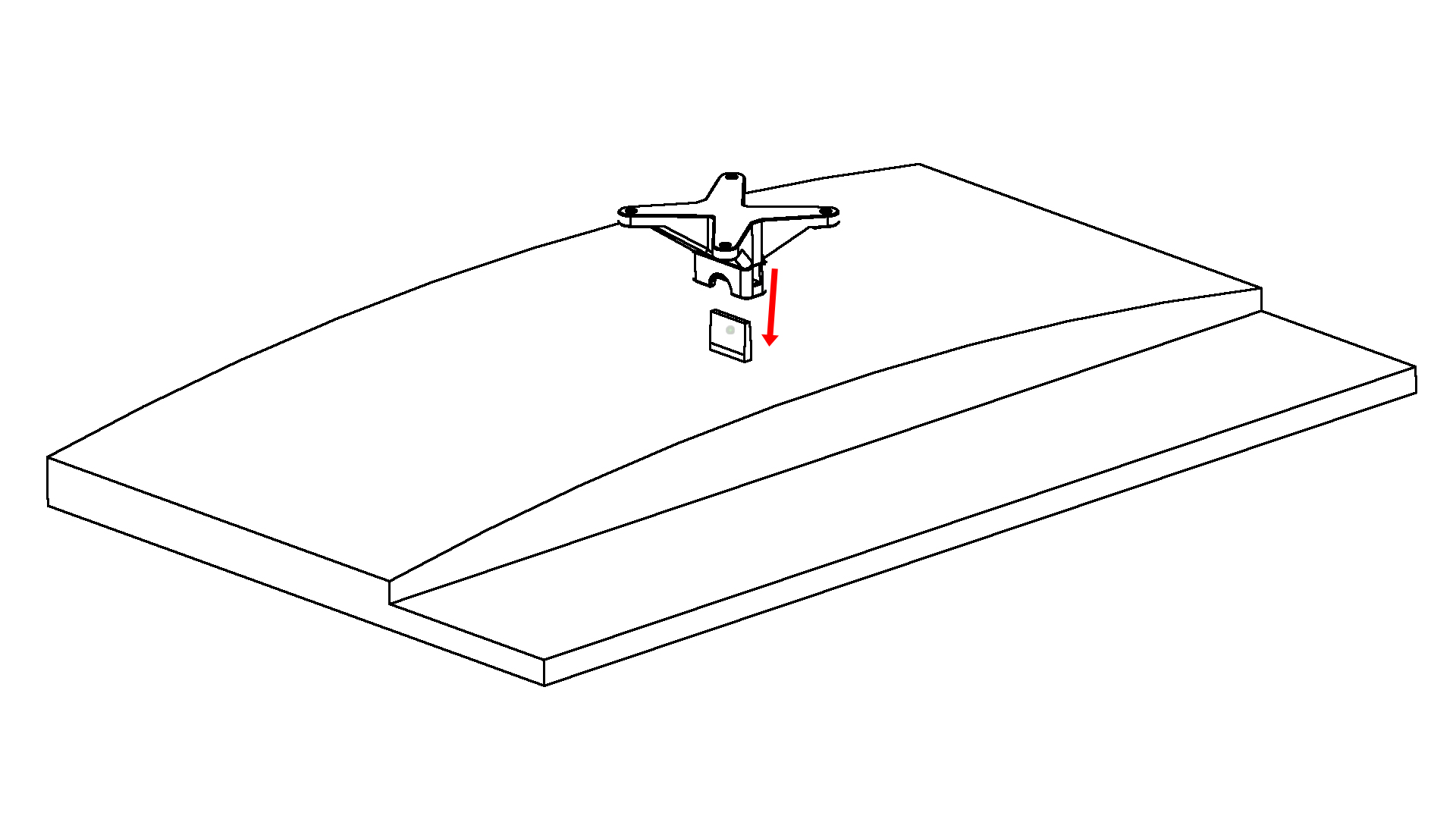

Attach the VESA adapter to the bracket on the back of your monitor as shown in the illustration. Make sure that the adapter audibly clicks into place. (Figure 1)

Figure 1 Figure 1

Step 3

⚠ Important: If the instructions in this step are not suitable for your device, please follow the mounting guidelines of the manufacturer of your monitor arm or swivel arm to mount the monitor to the wall or swivel arm.



We recommend a second person for this step.

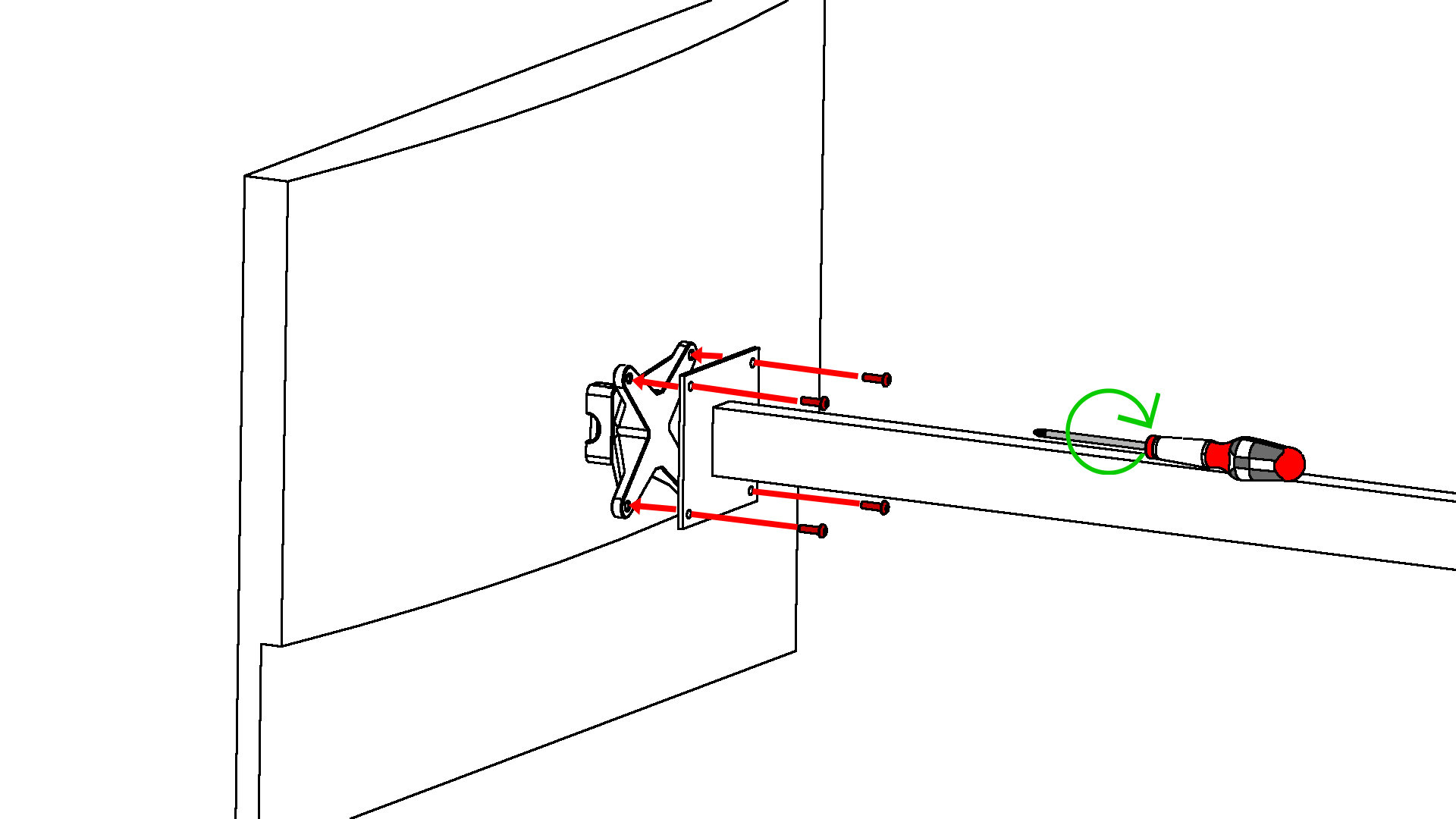

Now lift the monitor and hold it against your monitor mount. Attach the VESA adapter using the 4 M4x14 screws supplied (screw bag: SP2).

It is best to fasten 2 screws diagonally first so that the monitor can no longer fall down and you can fasten the remaining screws easily.

ATTENTION: Make sure you use the right screws!

(Figure 2)

Figure 2 Figure 2

Step 4

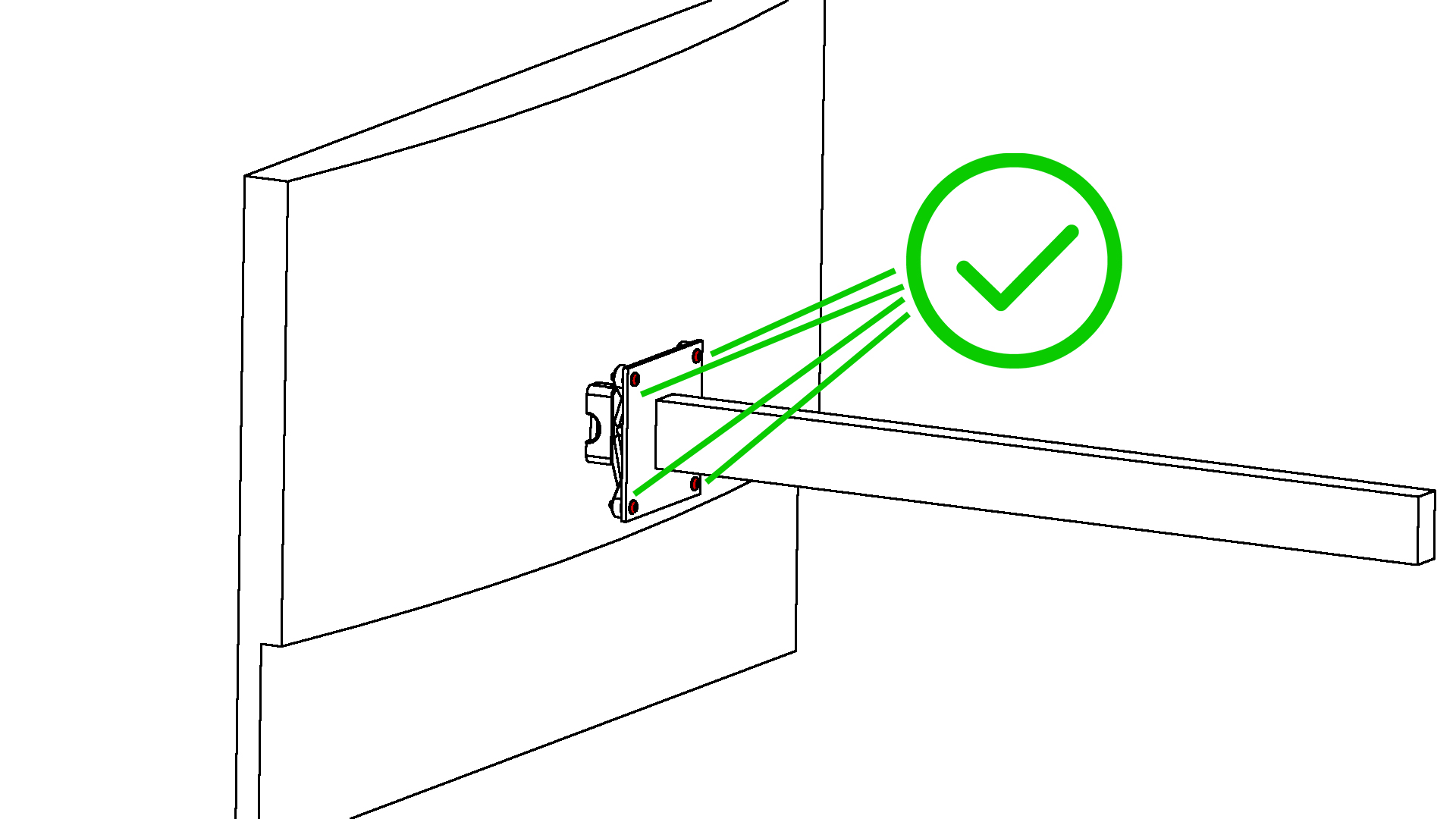

Now check that you have tightened all screws properly. (Figure 3)

Figure 3 Figure 3
