VESA Adapter  /  HP

VESA adapter compatible with HP Monitor (M22f, M24f, M24fd, M24fw, M27f, M27fe, M27fd, M27fq, M27fw, M32f, M32fw, 524sa, 524sf, 524sw, 527, 527sa, 527sf, 527sw, 532, 532 sf) - 75x75mm

(17 reviews)
3idee VESA adapter for various HP monitors of the Mf series.
SKU:
AV1005
EAN:
5430002906362
Manufacturer:
3idee
Graduated prices:
1 - 4 14,44 €
5 - 9 14,15 €
10 - 19 13,86 €
20 - 39 13,28 €
> 40 13,00 €
14,44 €
incl. VAT, plus Shipping
In stock

Support

E-Mail:

Mon - Fri: 09:00 - 16:00

Payment methods

Paypal amazon pay Visa Mastercard American Express Discover Diners Club Carte Bancaire JCB UnionPay eps iDeal bancontact Przelewy24

Shipping

DHL DHL Warenpost GLS UPS Amazon Logisticx

VESA Adapter for HP Monitors

With the 3idee VESA adapter for HP monitors M22f, M24f, M24fd, M24fw, M27f, M27fe, M27fd, M27fq, M27fw, M32f, M32fw, 524sa, 524sf, 524sw, 527, 527sa, 527sf, 527sw, 532, 532 sf, you can easily mount your monitor to a compatible VESA monitor arm. Featuring 75x75mm compatibility, this adapter offers the perfect solution! Whether you prefer a wall mount or a monitor arm, our adapter fits your HP monitor perfectly. Discover the versatility of our VESA mounts and arrange your workspace according to your personal needs.

Compatibility

This VESA adapter contains a screw to secure your monitor, as some HP monitors use different mounts despite having the same model name. The adapter is compatible with the HP models

22 inch
  M22f
24 inch
  524
  524sa
  524sf
  524sw
  M24f
  M24fd
  M24fw
27 inch
  527
  527sa
  527sf
  527sw
  M27f
  M27fd
  M27fe
  M27fq
  M27fw
  Serie 5
32 inch
  532
  532 sf
  M32f
  M32fw

Quality

Our VESA adapters for HP monitors are not only practical, but also sustainable and robust. Made from recycled PLA plastic using the latest 3D printing technology, they meet the highest quality standards. Each adapter is individually tested to ensure maximum durability. Learn more about our product safety standards.

Easy installation

Installing the adapter is child's play. It is simply clicked into the monitor. All necessary screws are included in the scope of delivery. A detailed instruction manual and PDF version are available.

Graduated prices

Benefit from our attractive discounts when ordering multiple adapters, both for private customers and companies.

VESA standard

Our adapter complies with the MIS-D VESA 75x75mm standard, giving you maximum flexibility when positioning your HP monitor.

This VESA adapter is compatible with the following HP monitors :

524

524sa

524sf

524sw

527

527sa

527sf

527sw

532

532 sf

M22f

M24f

M24fd

M24fw

M27f

M27fd

M27fe

M27fq

M27fw

M32f

M32fw

Serie 5

⚠ WARNING

To minimize the risk of injury, it is important to carefully read all instructions before installation. We accept no liability for personal or material damage caused by improper use of this product.
Also, be sure to pay attention to the technical specifications of the product.

1. Read all instructions thoroughly.

2. A faulty installation can lead to damage or serious injury. Ensure that the product and the monitor are securely mounted before use.

3. Make sure that the mount to which the product is attached can easily support the total weight of the monitor, computer, and adapter.


Here you can download the manual as a PDF

Download as PDF

Please read this manual carefully

Please read this manual carefully and keep it for future reference. If you pass the product on to third parties, this manual should always be included. Ignoring these instructions may result in injuries or damage to people and products, for which we cannot accept any liability.

IMPORTANT - KEEP FOR FUTURE REFERENCE.

The use of this product should always be in accordance with the specified safety instructions.
Do not install your VESA adapter in combination with the monitor in places where people are located below.
Do not exceed the maximum weight of the compatible monitor models, as this may result in serious injuries or property damage.
Pay attention to the maximum ambient temperature of 35°C when using the product.
Do not mount the VESA adapter near a heat source or in direct sunlight, as this may cause the adapter to overheat.
Check if your mounting point (e.g., monitor arm) can support the weight of the monitor with the VESA adapter.
The product is designed exclusively for mounting with a hole pattern of 75x75 / 100x100mm / 200x200mm.
After installing the VESA adapter, the position of the monitor must be readjusted to ensure proper ergonomics.

⚠ WARNING
Ensure that the device is turned off and disconnected from the power supply before installation to avoid possible injuries or damage.

1. Before First Use

Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.

⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.

2. Maintenance and Cleaning

2.1 Maintenance

- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.

2.2 Cleaning

- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.

3. Waste Disposal

For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.

4. Manufacturer Information

3idee S.à r.l.
19 Rue de Bitbourg
L-1273 Luxembourg
Luxembourg

mail: info@3idee.eu

5. Help and Feedback

If you need help with your article, we are here for you. We also appreciate any feedback.

https://help.3idee.eu/en/contact

M4x14 screw with cross recess (SP2)

4x M4x14 screw with cross recess (SP2)

Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly.

We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

However, monitors are designed for horizontal alignment by default.

Horizontal Mounting: YES

hp-mf VESA Adapter

Vertical Mounting:  YES

⚠ ATTENTION
Vertical mounting is only possible up to (including) 27 inch monitors.

hp-mf VESA Adapter

Step 1

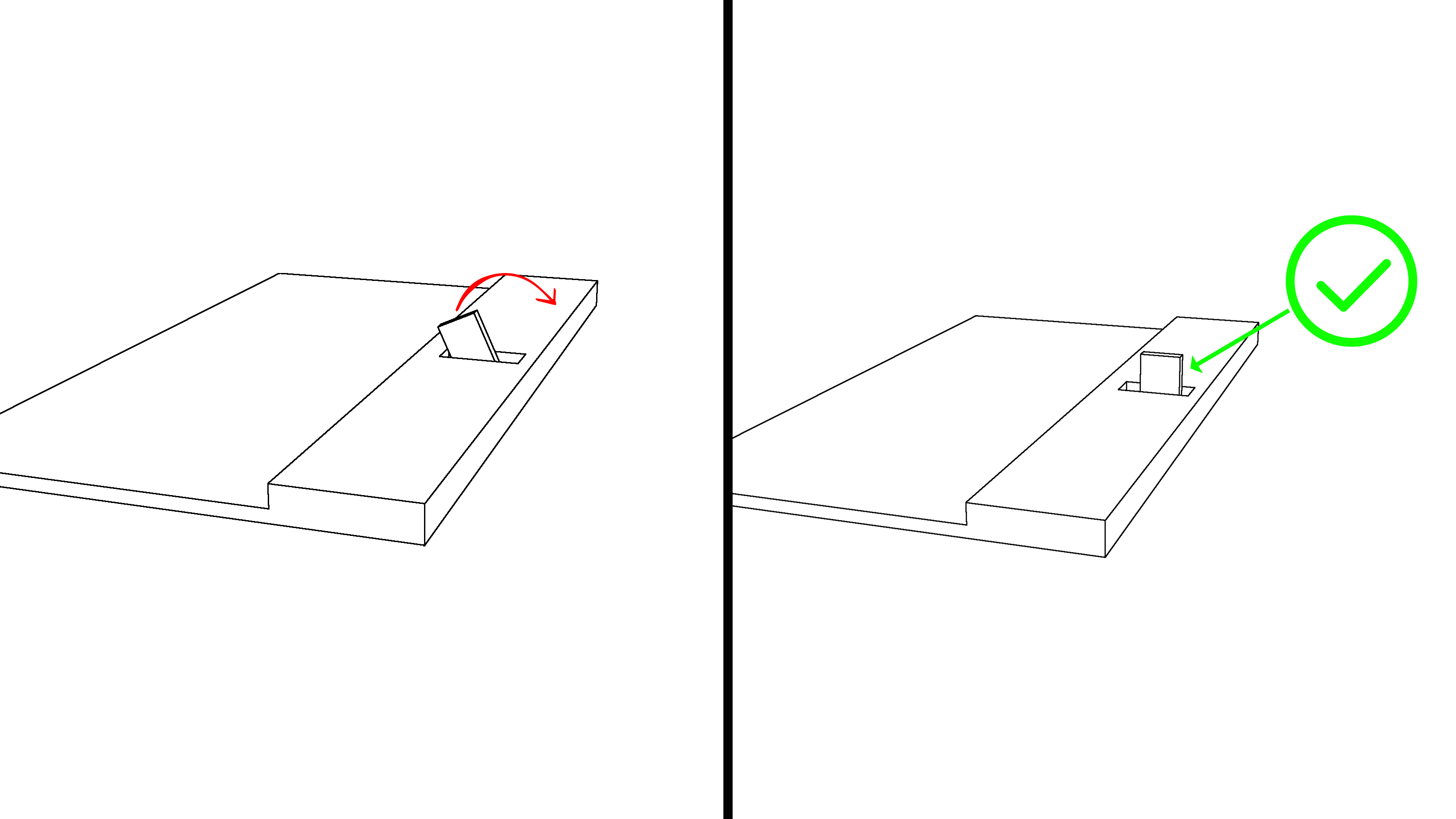

Lay your HP monitor flat on a safe and soft surface. Now remove the stand of your monitor. Press the white clip at the bottom of the monitor mount.

Move the white clip of your HP monitor to the position shown. (Figure 1)

Figure 1 Figure 1

Step 2

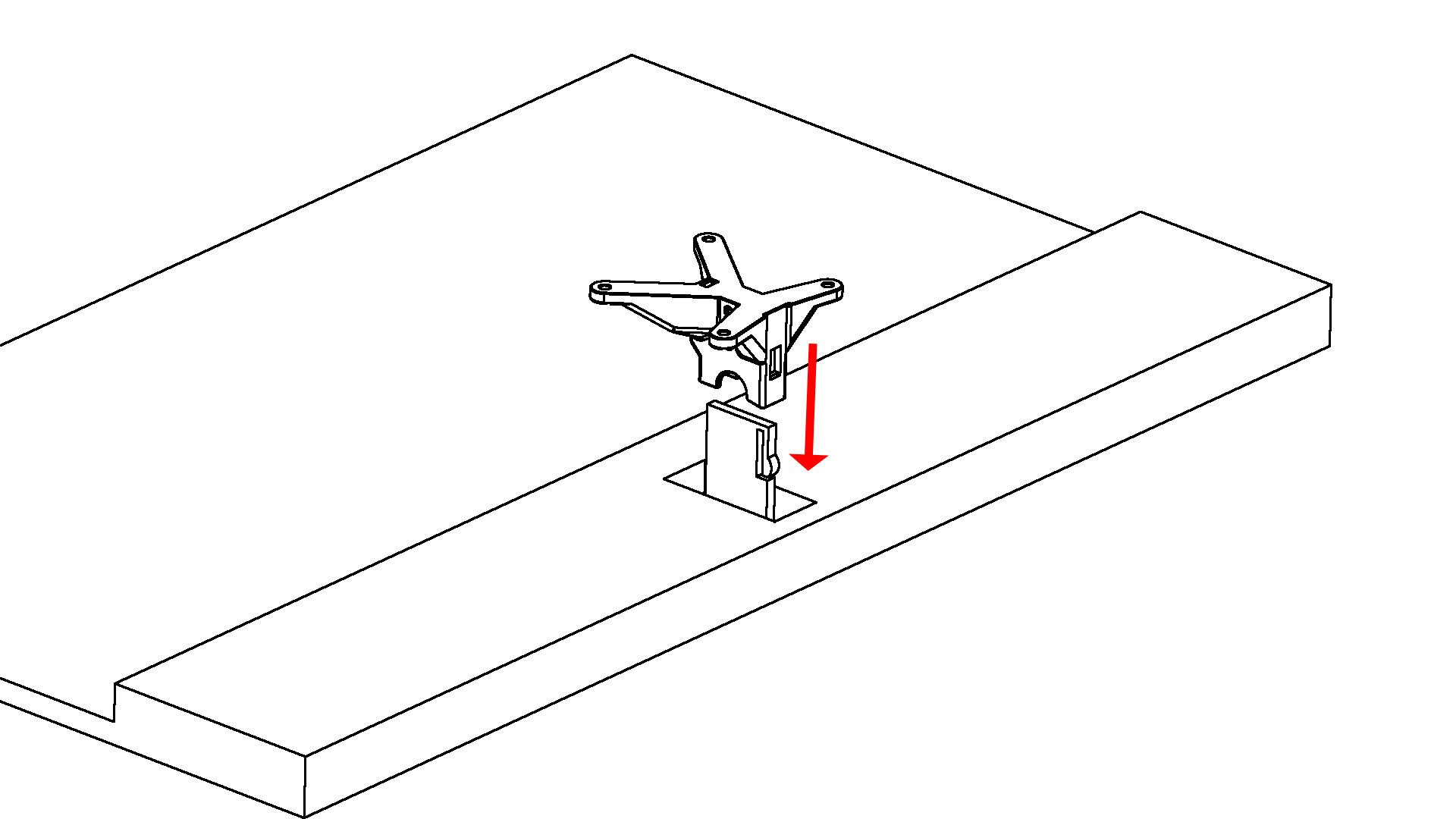

Attach the VESA adapter to the mount of your HP monitor as shown. (Figure 2)

Figure 2 Figure 2

Step 3

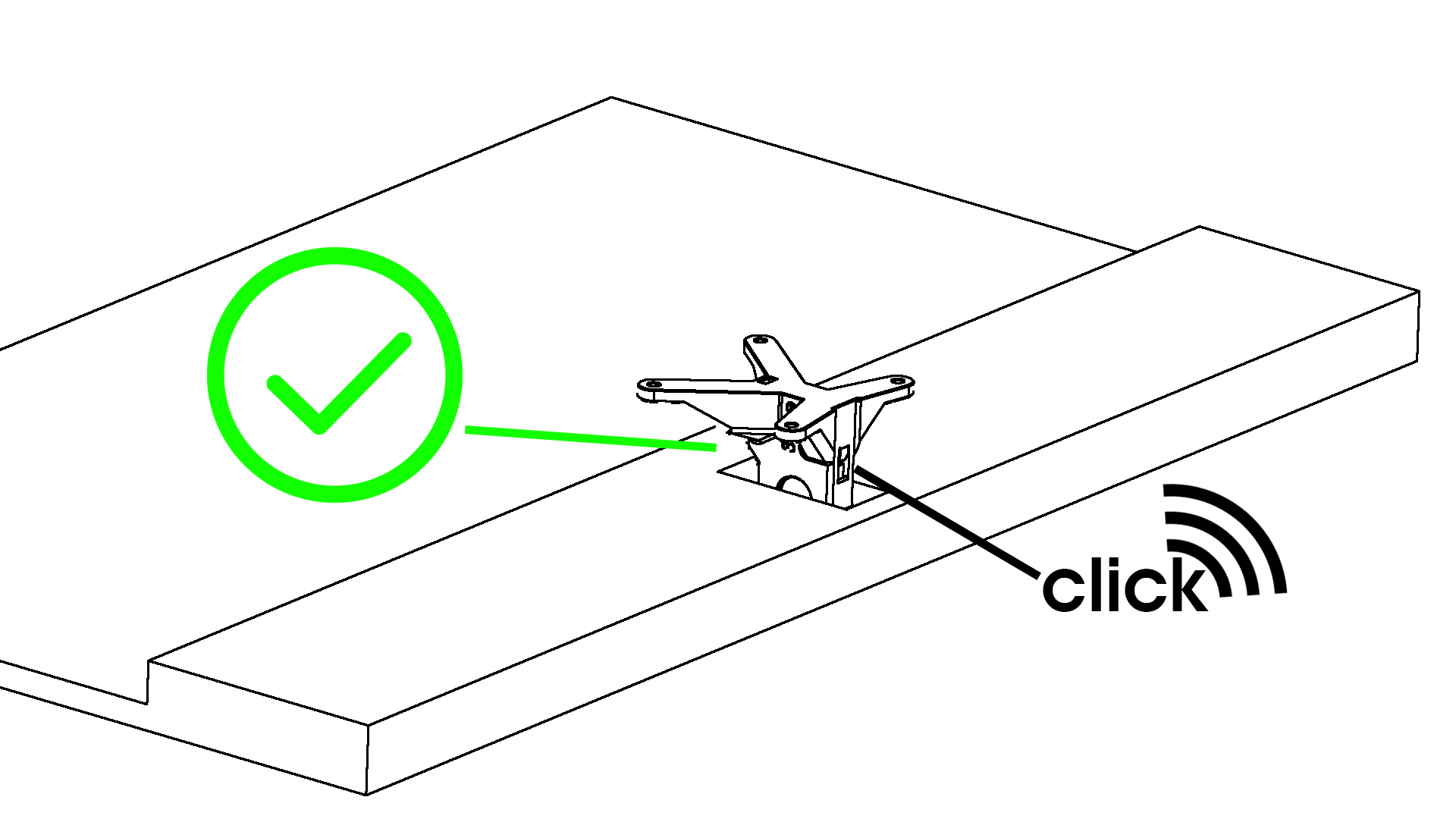

Please double check that all screws are properly tightened. You should hear a "click" when the screws snap into the mount of the monitor. (Figure 3)

Figure 3 Figure 3

Step 4

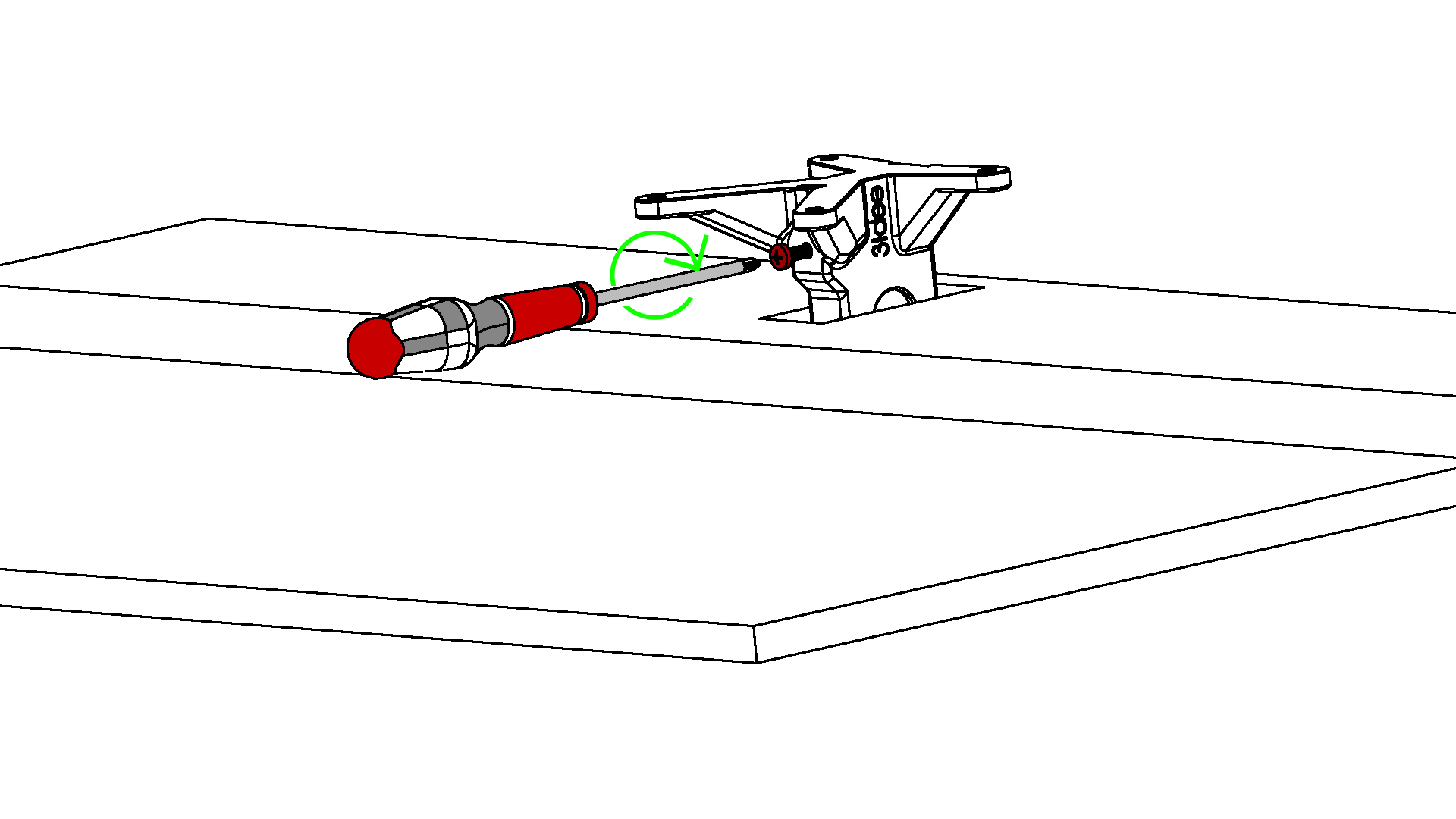

Make sure that the VESA adapter is correctly positioned in the mount, then gently tighten the indicated screw until the adapter is stable. (Figure 4)

This particular screw is essential to ensure compatibility with both mounting options of the HP Monitor Series Mf.

Figure 4 Figure 4

Step 5

⚠ Important: If the instructions in this step are not suitable for your device, please follow the mounting guidelines of the manufacturer of your monitor arm or swivel arm to mount the monitor to the wall or swivel arm.



We recommend a second person for this step.

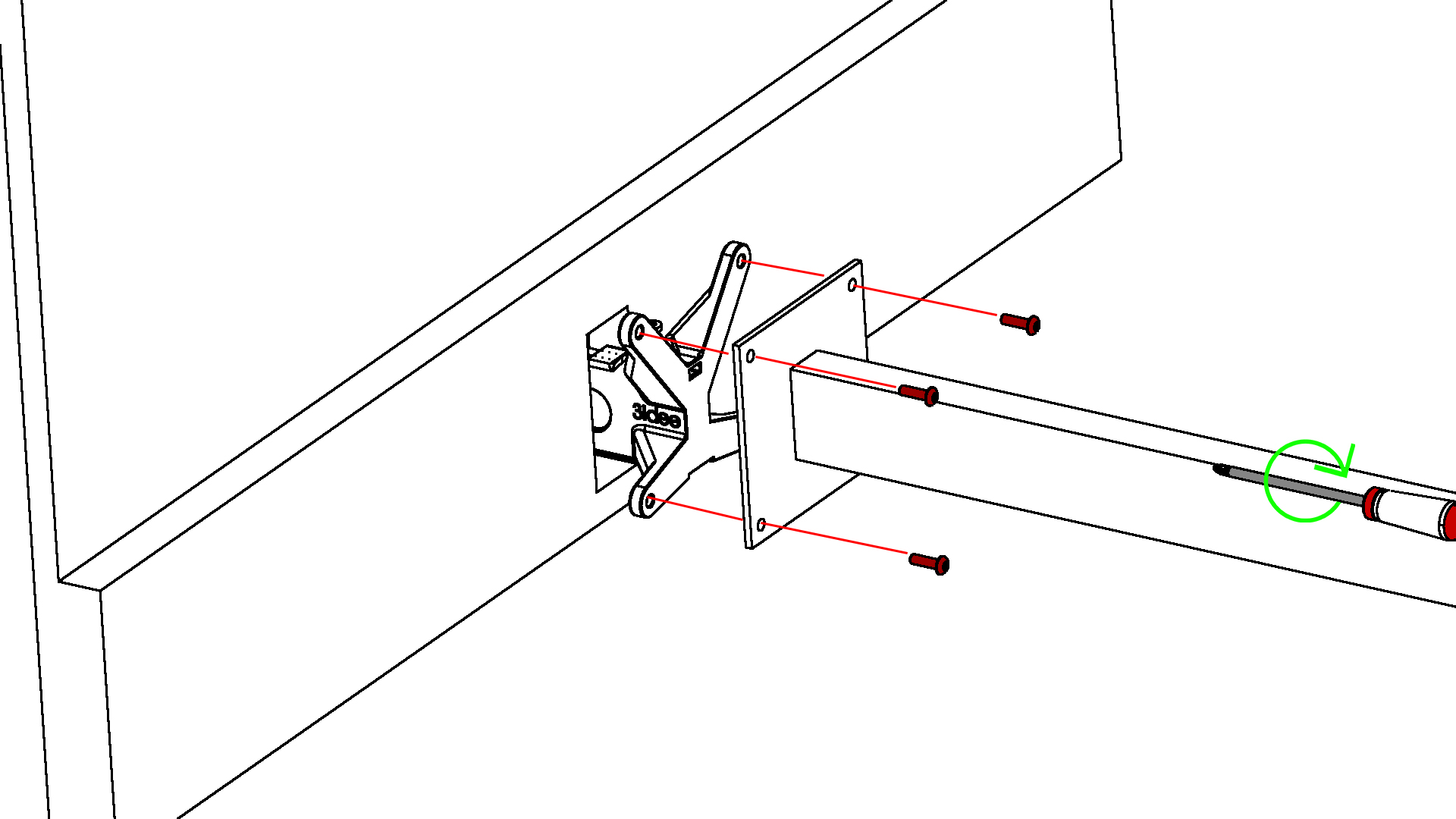

Now lift the monitor and hold it against your monitor mount. Attach the VESA adapter using the 4 M4x14 screws supplied (screw bag: SP2).

It is best to fasten 2 screws diagonally first so that the monitor can no longer fall down and you can fasten the remaining screws easily.

ATTENTION: Make sure you use the right screws!

(Figure 5)

Figure 5 Figure 5

Step 6

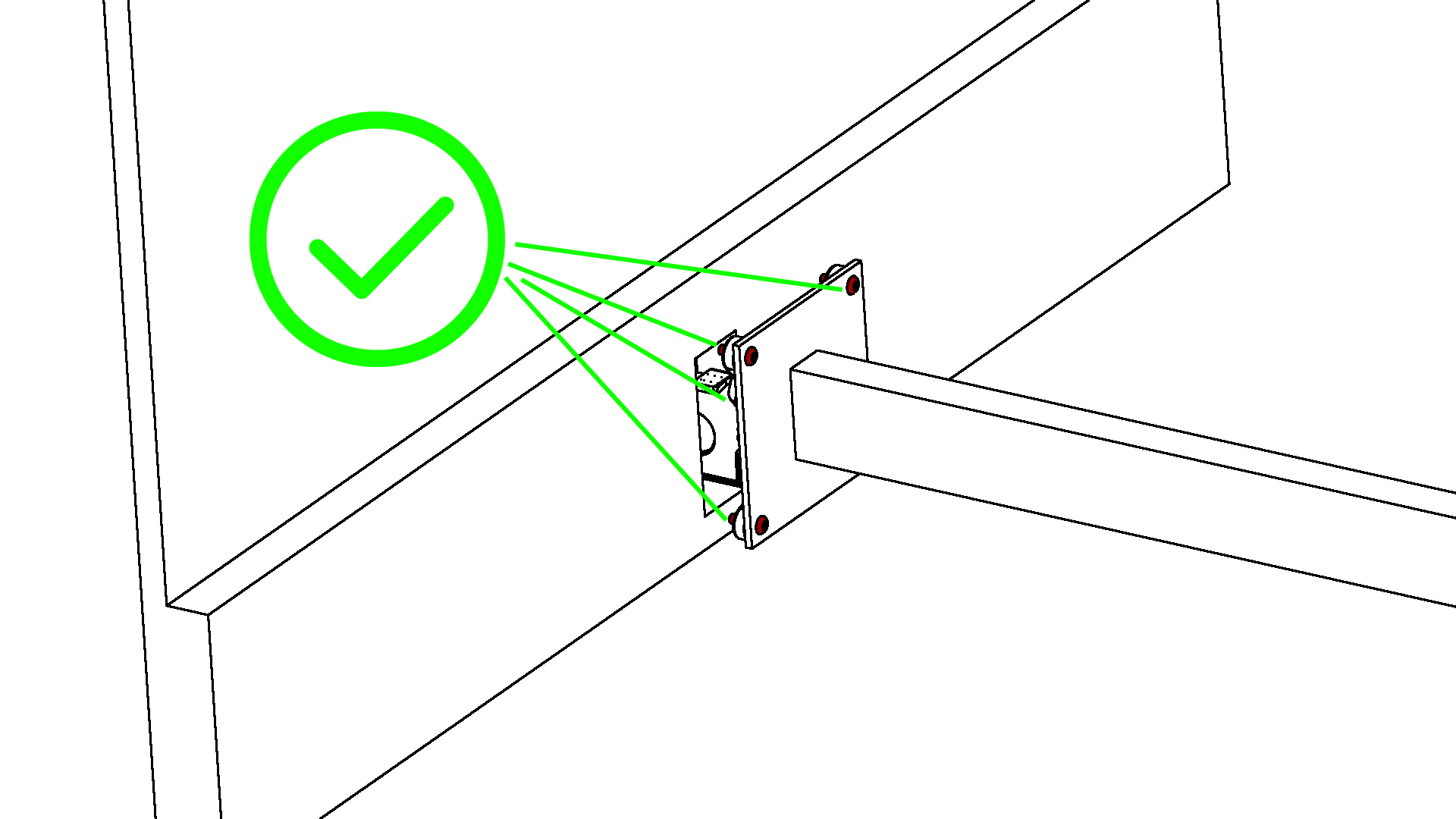

Please make sure that all 4 screws are tight. (Figure 6)

Figure 6 Figure 6

Simple à installer, correspond exactement.

Isabelle - 2029-10-24

Arrivato come da previsione. Imballo consistente. Si adatta molto bene al monotor (hp m24f). Utilizzato in aggiunta al sostegno da scrivania Bontec fa pienamente il suo dovere.

Marco C. - 2029-10-24

The delivery was on time, the part is a really great quality 3d printed adaptor with the correct fit on the HP screen.

P S - 2024-11-05

Die Adapter sind bei den oben genannten Monitoren passgenau und von guter Qualität.

nordkap - 2024-10-28

Schnelle Lieferung. Vielen Dank!

knecht-ruprecht66 - 2024-10-25

Auch wenn der Adapter genau so aussieht, ist die Bildschirmhalterung des HP Gaming 25 Monitors ein bisschen "kleiner" (schmaler). Das ist mein Fehler gewesen, möchte aber anderen helfen nicht den gleichen Fehler zu machen. Dafür gibt es eine andere passende Halterung.
Die 3 Sterne beziehen sich aber auf das Produkt, wenn es passt. Ich finde die Qualität für den Preis so naja. Die Fertigung mithilfe 3D-Druck ist relativ grobschlächtig und wirkt wenig wertig. Außerdem sollte der Adapter meiner Meinung nach kompakter sein, damit der Hebel auf den Adapter und demnach auf den Monitorhalter geringer ist. Für mich ist das eher ein 10€ Produkt.

SK - 2024-10-24

Endlich passenden Adapter für Montage gefunden, der qualitativ sehr hochwertig ist und zudem eine optimale Passgenauigkeit hat ! Nur zu empfehlen !

Kunde - 2021-03-22

Perfekt! Genau wie erwartet.

Kunde - 2021-03-22

Die Passform des Adapters ist nicht optimal. Im Vergleich zum Original Standfuß lässt sich der Adapter nur schwer aufstecken. Der Sitz ist sehr stramm, so stramm dass das Gegenstück nicht Einrasten kann. Allerdings ist das auch so stramm, das es ohne Einrasten hält. Für Monitore die viel mit der Halterung bewegt werden sollen nicht zu empfehlen.

Sebastian - 2017-02-24

Muy caro

JAVIER PAREJA - 2012-05-24

Der Adapter ist als 3D-Druck gut und stabil gearbeitet und passt zu meinem HP M27f Monitor, den ich als Ersatzmonitor für einen ausgefallenen HP 27fw an einem Dual-Monitor-Halter hatte. Ich hatte schon für den HP 27fw einen extra Vesa-Adapter benötigt, den ich auch hier bestellt hatte - mit gleicher Qualität.

Leider ändert HP seine Halterungen und Ständerformate je nach Wetterlage. Daher war wieder ein neuer Adapter nötig. Dem Verkäufer wird es gefallen - ist ja sein Geschäft, HP und anderen Herstellern sollte man aber langsam eine Vesa-Norm zur Montage gesetzlich vorschreiben. Ich war echt sauer, als der Monitor kam und der vorhandene Adapter nicht passte.

Der Verkäufer hat schnell etwas Gutes geliefert und ich bin zufrieden mit dem Ergebnis - als Helfer in der Not sehr empfehlenswert.

G.S. - 2010-06-23

Das 3IDEE VESA Adapter Bundle für HP Monitore hat meine Erwartungen übertroffen! Die Installation war einfach und problemlos, und die Adapter passen perfekt zu meinem HP Monitor. Endlich konnte ich meinen Monitor an meine VESA-Halterung montieren, was mir mehr Flexibilität bei der Positionierung und Anpassung meines Arbeitsplatzes bietet. Die Qualität des Materials ist hervorragend und sorgt für eine sichere Befestigung. Dieses Bundle ist eine großartige Lösung für HP Monitor-Besitzer, die ihre Bildschirme individuell anpassen möchten. Ich kann es wärmstens empfehlen!

Miroslav - 2010-02-24

Schnelle Lieferung.
Leider fehlten in beiden Sätzen (2 Halter in einem Satz) ein Satz Schrauben!
8 wären nötig, nur 4 Schrauben erhalten!
Zum Glück hatten wir Passende Schrauben.
Darum nur 4 Sterne. Produkt sonst gut.

Sigrist Ulrich - 2007-07-23

I recently purchased the 3IDEE VESA Adaptor for my HP M24fw monitor, and I couldn’t be happier with the results. If you own a monitor like mine that doesn’t come with VESA mounting holes, this adapter is a must-have. The installation was straightforward, and it came with clear instructions. The adapter fit perfectly onto my monitor without any issues, and all the necessary screws and tools were included in the package. It took me about 15 minutes to get everything set up. The build quality of the 3IDEE VESA Adaptor is excellent. It’s made of sturdy materials that feel durable and secure. Once attached, the adapter holds the monitor firmly in place, and there’s no wobbling or instability. The black finish matches well with the monitor, giving it a clean and professional look. The adapter is designed specifically for monitors like the HP M24fw that lack a VESA mount, and it works as advertised. The 75 x 75 mm VESA pattern is universal, so I was able to easily mount the monitor onto my existing monitor arm without any compatibility issues.
I’ve been using the adapter for a few weeks now, and it’s holding up perfectly. My monitor is securely mounted, and I’ve regained valuable desk space by using an adjustable monitor arm. The adapter has not impacted the screen's stability or viewing angle, and the overall experience is much improved. For me the only downside was the price. It’s little bit expensive. If the price was little bit lower, it will be the best option to have.

John Snow - 2006-09-24

Perfecto para poder poner el monitor en un soporte. Fácil de instalar.

lurdst - 2001-11-24

Der Adapter ist super leicht anzubringen und der Monitor hält ohne Probleme.

Siulvia Schöppler - 2001-11-23

Per monitor HP 27F: il monitor si adatta perfettamente senza forzare. Attenzione che HP per modelli di monitor apparentemente simili usa attacchi differenti sia verticale sia orizzontale. Verificare sempre anche se le specifiche dichiarano la compatibilità! Un primo adattatore acquistato perchè compatibile per questo tipo di monitor ha dovuto essere sostituito.

Arialdo - 2001-09-24
