VESA Adapter  /  HP

VESA adapter compatible with HP All-in-One PCs (EliteOne 840, 870 G9) - 75x75 mm

3idee Modernize your HP All-in-One PC with our VESA adapter.
SKU:
AV2068
EAN:
5430003772010
Manufacturer:
3idee
Graduated prices:
1 - 4 19,65 €
5 - 9 19,26 €
10 - 19 18,86 €
20 - 39 18,08 €
> 40 17,69 €
19,65 €
incl. VAT, plus Shipping
In stock

Support

E-Mail:

Mon - Fri: 09:00 - 16:00

Payment methods

Paypal amazon pay Visa Mastercard American Express Discover Diners Club Carte Bancaire JCB UnionPay eps iDeal bancontact Przelewy24

Shipping

DHL DHL Warenpost GLS UPS Amazon Logisticx

Adaptateur VESA pour PC tout-en-un HP

Vous souhaitez aligner parfaitement vos PC tout-en-un HP – y compris les modèles EliteOne 840 et EliteOne 870 G9 – et optimiser votre espace de travail ? Avec notre adaptateur VESA spécialement conçu, vous pouvez monter facilement ces PC tout-en-un sur des bras de moniteur, des supports muraux ou d'autres fixations compatibles VESA. Découvrez l’univers des fixations VESA et améliorez l’efficacité de votre poste de travail.

Compatibility

This VESA adapter is suitable for the HP All-in-One PCs of the EliteOn series:

23,8 inch
  EliteOne 840 G9 All-in-one-PC
27 inch
  EliteOne 870 G9 All-in-one-PC

Quality

Our VESA adapters are not only practical, but also sustainable and robust. Made from recycled PLA plastic using the latest 3D printing technology, they meet the highest quality standards. Each adapter is individually tested to ensure maximum load for all compatible HP PC models. Learn more about our product safety standards.

Easy installation

Installation is simple and straightforward: Remove the base of the original monitor and loosen the screws of the black mount that secures the base. All necessary screws are included in the scope of delivery. A detailed instruction manual and PDF version are available.

Graduated prices

Benefit from our attractive discounts when purchasing more than one adapter, for both private customers and businesses.

VESA standard

Our adapter complies with the MIS-D VESA standard 75x75mm, giving you maximum flexibility when positioning your HP All-in-One PC.

The VESA adapter is compatible with the following monitors from hp (hp.com):

EliteOne 840 G9 All-in-one-PC

EliteOne 870 G9 All-in-one-PC

With the VESA adapter, you can easily attach your HP monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the supplied screws and nuts for this.

Direct wall mounting is NOT possible, as the VESA adapter already contains metric threads through which no screws can be inserted for mounting to the wall.


Here you can download the manual as a PDF

Download as PDF

  • Maximum monitor weight: 7 kg / 15.4 lbs
  • VESA standard compatibility: 75x75 mm
  • Material: plastic
  • Pivot angle: compatible (90°)
  • Maximum operating temperature: 35°C / 95°F
  • Maximum ambient temperature: 35°C / 95°F

⚠ WARNING

Exceeding the maximum load capacity, operating temperature or ambient temperature can lead to serious injury or damage.

Please read this manual carefully

Please read this manual carefully and keep it for future reference. If you pass the product on to third parties, this manual should always be included. Ignoring these instructions may result in injuries or damage to people and products, for which we cannot accept any liability.

IMPORTANT - KEEP FOR FUTURE REFERENCE.

The use of this product should always be in accordance with the specified safety instructions.
Do not install your VESA adapter in combination with the monitor in places where people are located below.
Do not exceed the maximum weight of the compatible monitor models, as this may result in serious injuries or property damage.
Pay attention to the maximum ambient temperature of 35°C when using the product.
Do not mount the VESA adapter near a heat source or in direct sunlight, as this may cause the adapter to overheat.
Check if your mounting point (e.g., monitor arm) can support the weight of the monitor with the VESA adapter.
The product is designed exclusively for mounting with a hole pattern of 75x75 / 100x100mm / 200x200mm.
After installing the VESA adapter, the position of the monitor must be readjusted to ensure proper ergonomics.

⚠ WARNING
Ensure that the device is turned off and disconnected from the power supply before installation to avoid possible injuries or damage.

1. Before First Use

Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.

⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.

2. Maintenance and Cleaning

2.1 Maintenance

- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.

2.2 Cleaning

- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.

3. Waste Disposal

For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.

4. Manufacturer Information

3idee S.à r.l.
19 Rue de Bitbourg
L-1273 Luxembourg
Luxembourg

mail: info@3idee.eu

5. Help and Feedback

If you need help with your article, we are here for you. We also appreciate any feedback.

https://help.3idee.eu/en/contact

M4x14 Phillips head screw (SP8 or SP2)

4x M4x14 Phillips head screw (SP8 or SP2)

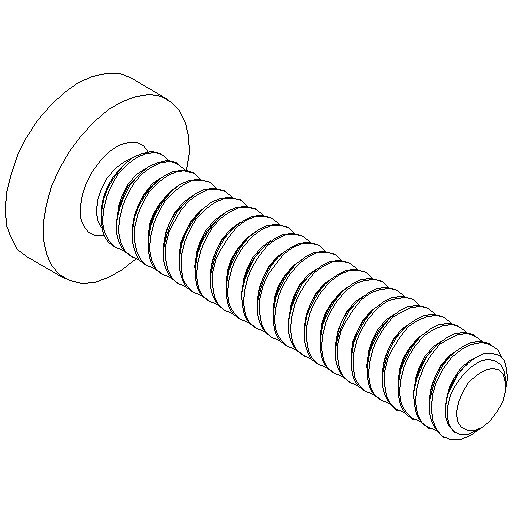

M4x20 Phillips head screw (SP8)

2x M4x20 Phillips head screw (SP8)

⚠ NOTE: Not all VESA adapters and monitors are designed for a vertical (portrait) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can be quickly exceeded if not mounted properly.

We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

By default, however, monitors are designed for a horizontal orientation.

Horizontal Mounting: YES

hp-eo-g9 VESA Adapter

Vertical Mounting:  YES

hp-eo-g9 VESA Adapter

Step 1

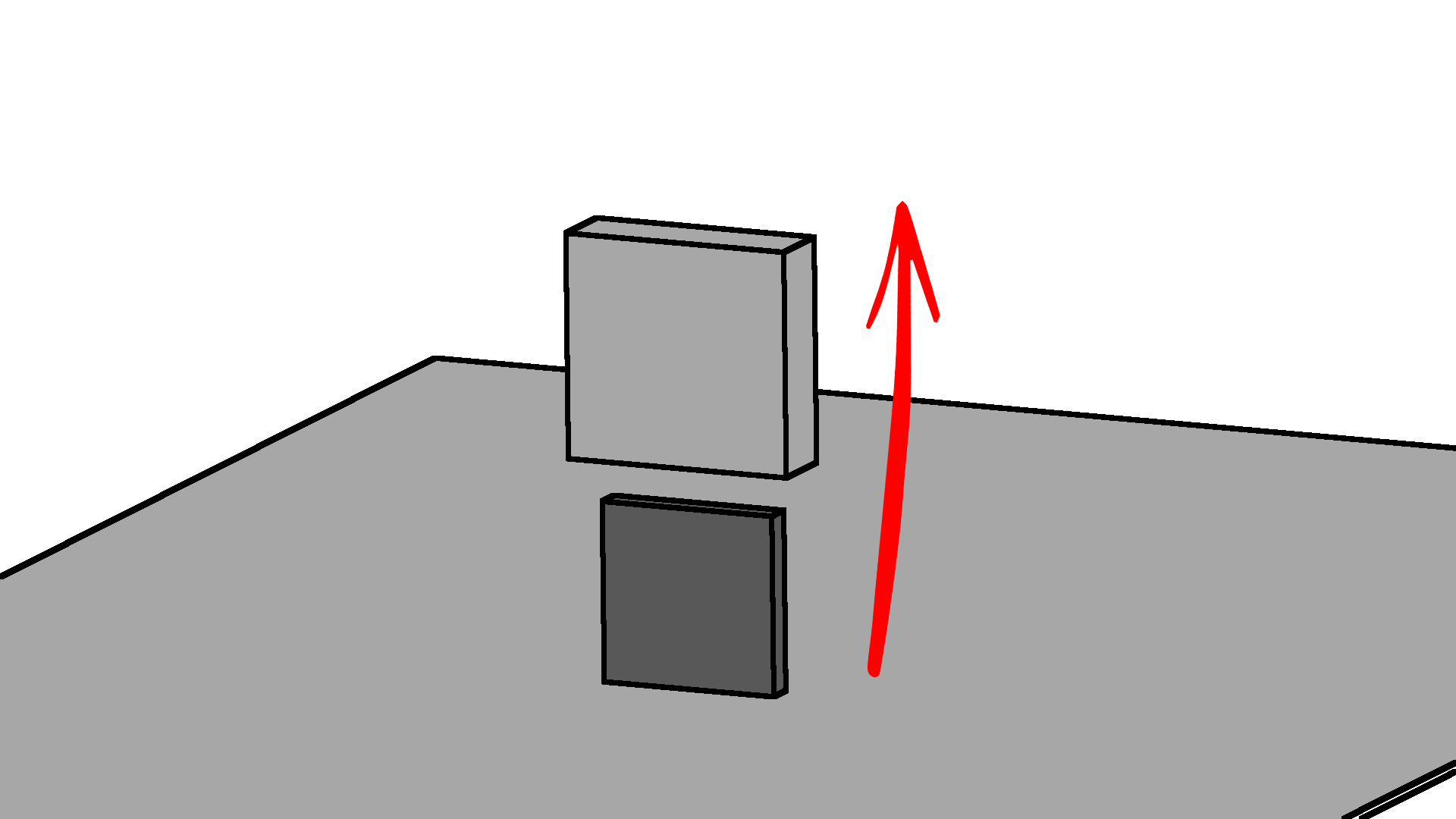

Remove the base of your HP All-in-One PC by first pulling off the base and then unscrewing the black plastic holder.

We have also published an assembly help video.

hp-eo-g9 VESA Adapter

Step 2

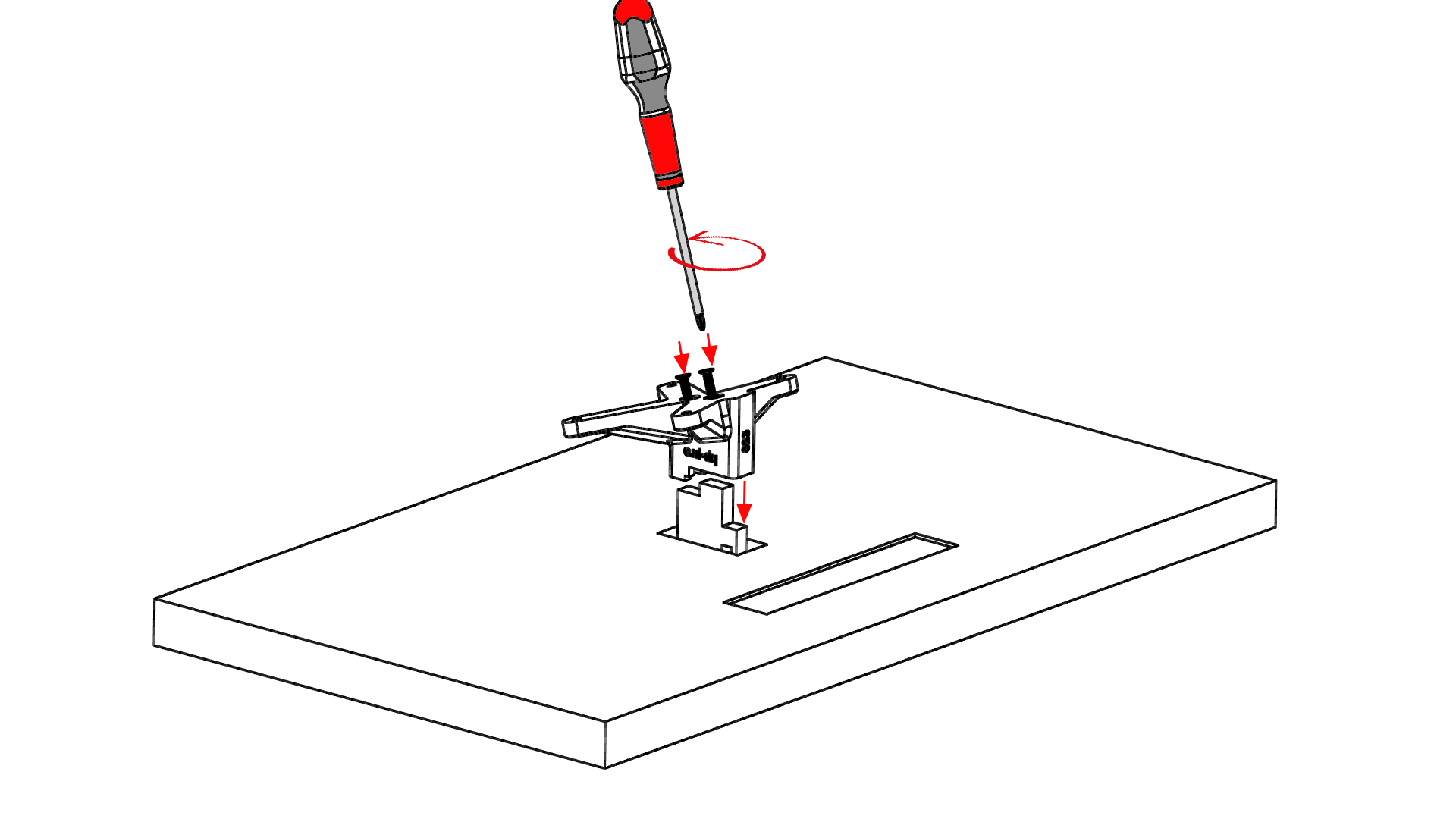

Now attach the 3idee VESA adapter to the metal mount and screw it tight with the supplied M4x20 countersunk screws (SP8). (Figure 1)

Figure 1 Figure 1

Step 3

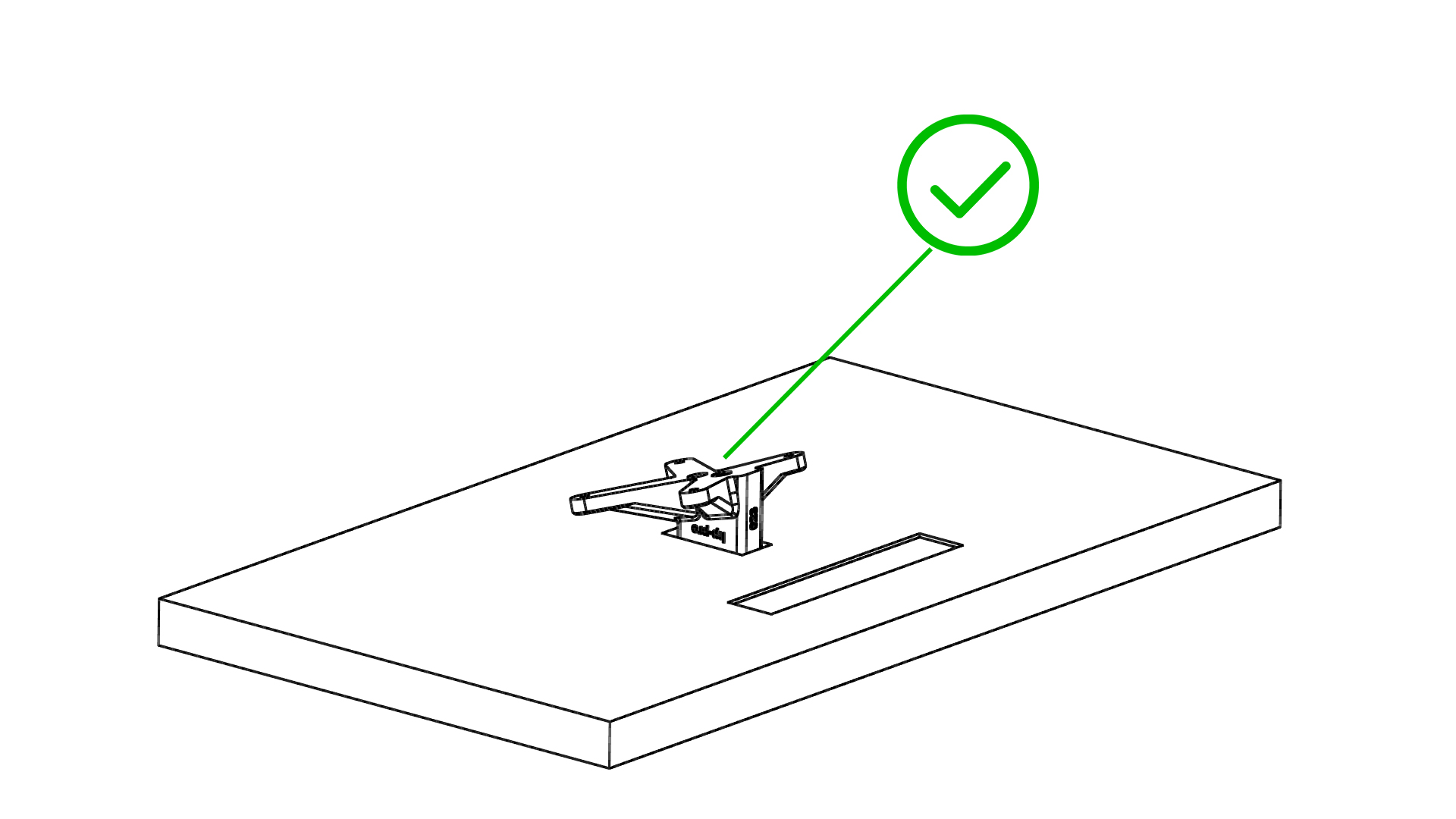

This is how the mounted VESA adapter should look now. Please make sure that you have tightened both screws. (Figure 2)

Figure 2 Figure 2

Step 4

⚠ Important: If the instructions in this step are not suitable for your device, please follow the mounting guidelines of the manufacturer of your monitor arm or swivel arm to mount the monitor to the wall or swivel arm.



We recommend a second person for this step.

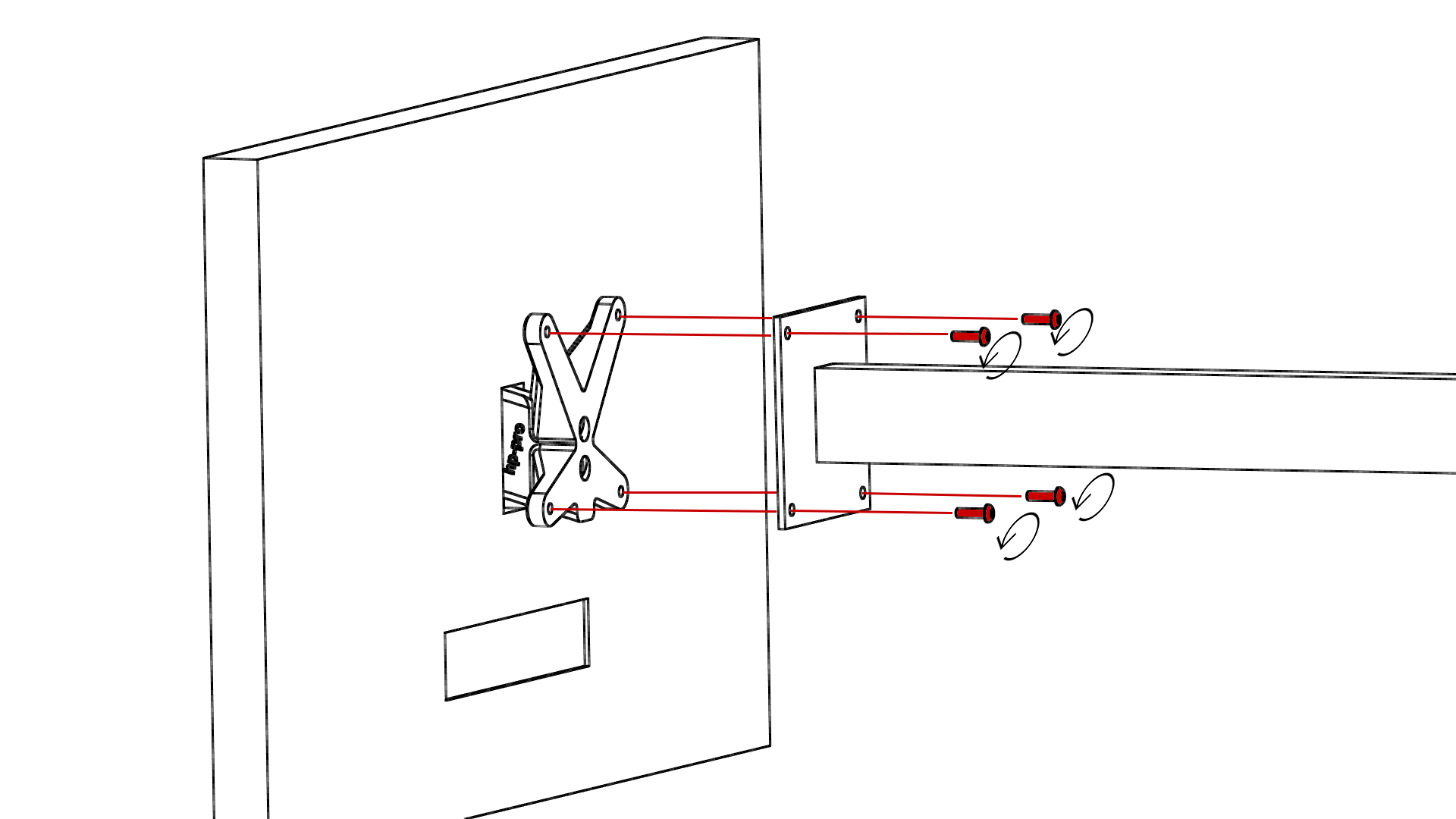

Now lift the monitor and hold it against your monitor mount. Attach the VESA adapter using the 4 M4x14 screws supplied (screw bag: SP8 or SP2).

It is best to fasten 2 screws diagonally first so that the monitor can no longer fall down and you can fasten the remaining screws easily.

ATTENTION: Make sure you use the right screws!

(Figure 3)

Figure 3 Figure 3

Step 5

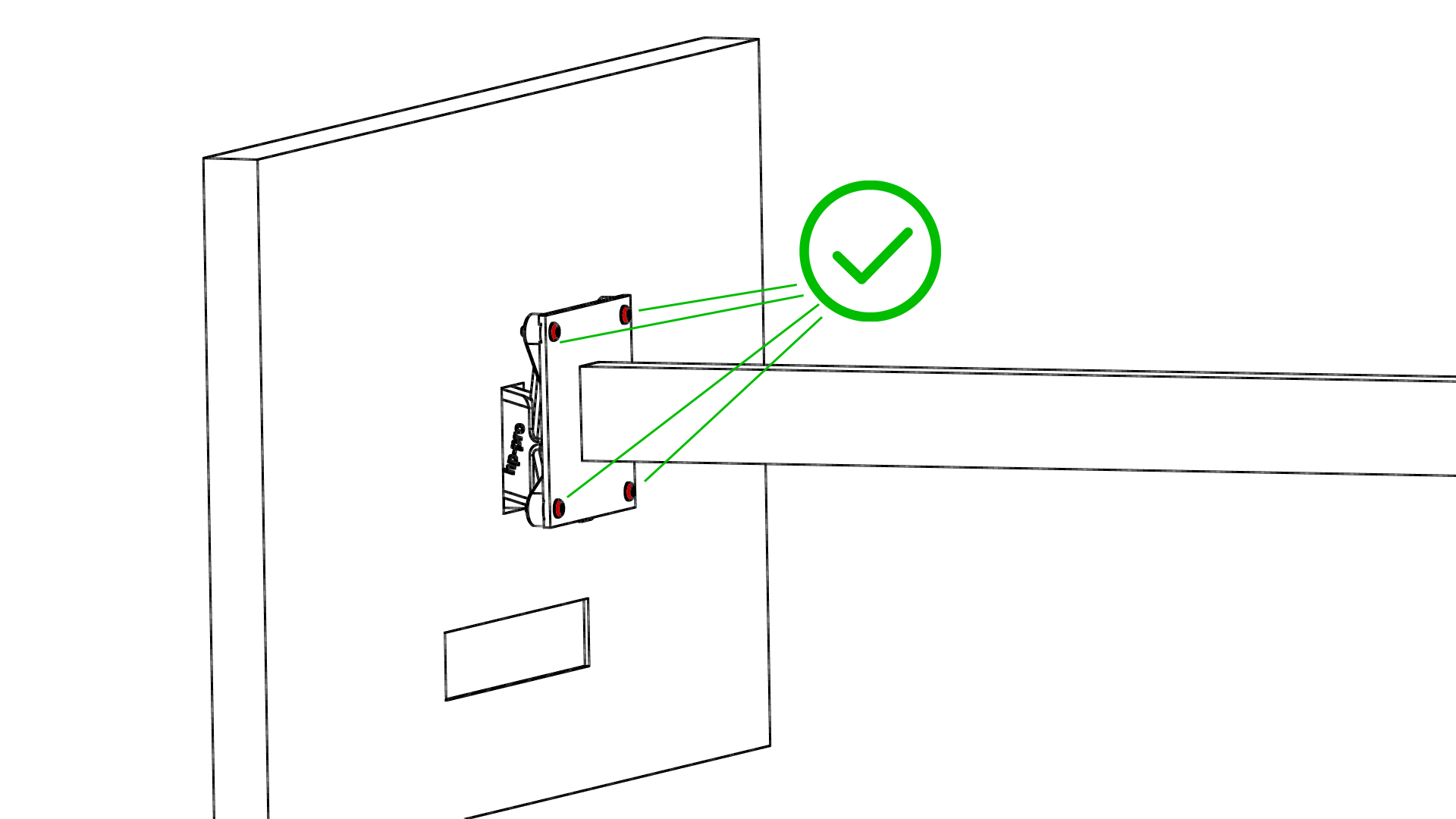

Please make sure that all 4 screws are tight. (Figure 4)

Figure 4 Figure 4
