VESA Adapter  /  DELL

VESA adapter compatible with DELL monitor (S2216M, S2316H, S2317HJ, SE2417HGX and more) - 75x75mm

3idee Give your Dell monitor VESA capability and increase efficiency and convenience!
SKU:
AV1140
EAN:
5430002906515
Manufacturer:
3idee
Graduated prices:
1 20,64 €
2 19,81 €
3 19,40 €
4 - 5 18,99 €
6 - 9 18,57 €
10 - 39 17,33 €
> 40 16,51 €
Black
20,64 €
24h
incl. VAT, plus Shipping

Support

Phone: +352 661 267 276

E-Mail: info@vesa-adapter.com

Mon - Fri: 09:00 - 16:00

Payment methods

Paypal amazon pay Visa Mastercard klarna giropay

Shipping

DPD FedEx

Transform your Dell monitor into a flexible work tool with our specially developed VESA adapter. It fits perfectly with the S2216M, S2316H, S2316M and many other Dell monitors. The easy installation allows you to effortlessly attach your monitor to a monitor arm or wall mount. We also offer a selection of colour options to personalize your workspace. Thanks to the 75x75mm VESA standard, you get maximum flexibility in positioning your monitor to increase productivity and comfort.

Compatibility

This Dell VESA adapter is compatible with the following Dell monitors:

  • S2216M
  • S2316H
  • S2316M
  • S2317HJ
  • S2416H
  • S2717Q
  • S2817Q
  • SE2216H
  • SE2416HSC
  • SE2416HX
  • SE2417HGX
  • SE2716H
  • SE2717HR
  • SE2717HX

Quality

Thanks to the integrated metal part, our VESA adapter offers a high level of stability. It meets the highest quality standards and is individually tested before shipping. Find out more about our product safety standards.

Easy installation

Installation is child's play. The monitor is simply pushed into the VESA adapter. All necessary screws are included in the scope of delivery. A detailed instruction manual and PDF version are available.

Color options

Design your workspace just the way you want it by choosing from a selection of color options for your VESA adapter. This allows you to create an environment that is not only functional, but also aesthetically pleasing and suits your individual taste.

Graduated prices

Our attractive graduated prices offer financial benefits when purchasing multiple adapters. These discounts apply to both private customers and companies. We ensure that you benefit from lucrative discounts regardless of the quantity, allowing you to enjoy the quality of our products at an affordable price.

VESA standard

Our adapter complies with the MIS-D VESA 75x75mm standard, giving you maximum flexibility when positioning your Dell monitor.

The VESA adapter is compatible with the following products from DELL (dell.com):

S2216M

S2316H

S2316M

S2317HJ

S2416H

S2717Q

S2817Q

SE2216H

SE2416HSC

SE2416HX

SE2417HGX

SE2716H

SE2717HR

SE2717HX

The VESA adapter allows you to conveniently mount your DELL brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.

If you want to mount your VESA adapter directly to the wall, use suitable screws and dowels (not included).


Here you can download the manual as a PDF

Download as PDF

Please read these instructions carefully

Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.



IMPORTANT - KEEP FOR FUTURE REFERENCE.

• This product should always be used in accordance with the specified safety instructions.
• Do not install your VESA adapter in combination with the monitor in places where there are people below.
• Do not exceed the maximum weight of the compatible monitor models as this may result in serious injury or damage to property.
• Observe the maximum ambient temperature of 35°C when using the product.
• Do not mount the VESA adapter near a heat source or in direct sunlight, as this could heat up the adapter.
• Check whether your mounting point (e.g. monitor arm) can withstand the weight of the monitor with VESA adapter.
The product is designed exclusively for mounting with a hole pattern of 75x75 mm.
• After installing the VESA adapter, the position of the monitor must be readjusted to ensure correct ergonomics.

⚠ CAUTION
Ensure that the device is switched off and disconnected from the power supply before installation to avoid possible injury or damage.

1. Before First Use

Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.

⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.

2. Maintenance and Cleaning

2.1 Maintenance

- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.

2.2 Cleaning

- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.

3. Waste Disposal

For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.

4. Manufacturer Information

3idee Technologies S.à r.l.
5 Um Lenster Bierg
L-6125 Junglinster
Luxembourg

5. Help and Feedback

If you need help with your article, we are here for you. We also appreciate any feedback.

https://help.3idee.eu/en/contact

M4x14 screw with cross recess (SP2)

4x M4x14 screw with cross recess (SP2)

Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly.

We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

However, monitors are designed for horizontal alignment by default.

Horizontal Mounting: YES

de-se2417 VESA Adapter

Vertical Mounting:  YES

de-se2417 VESA Adapter

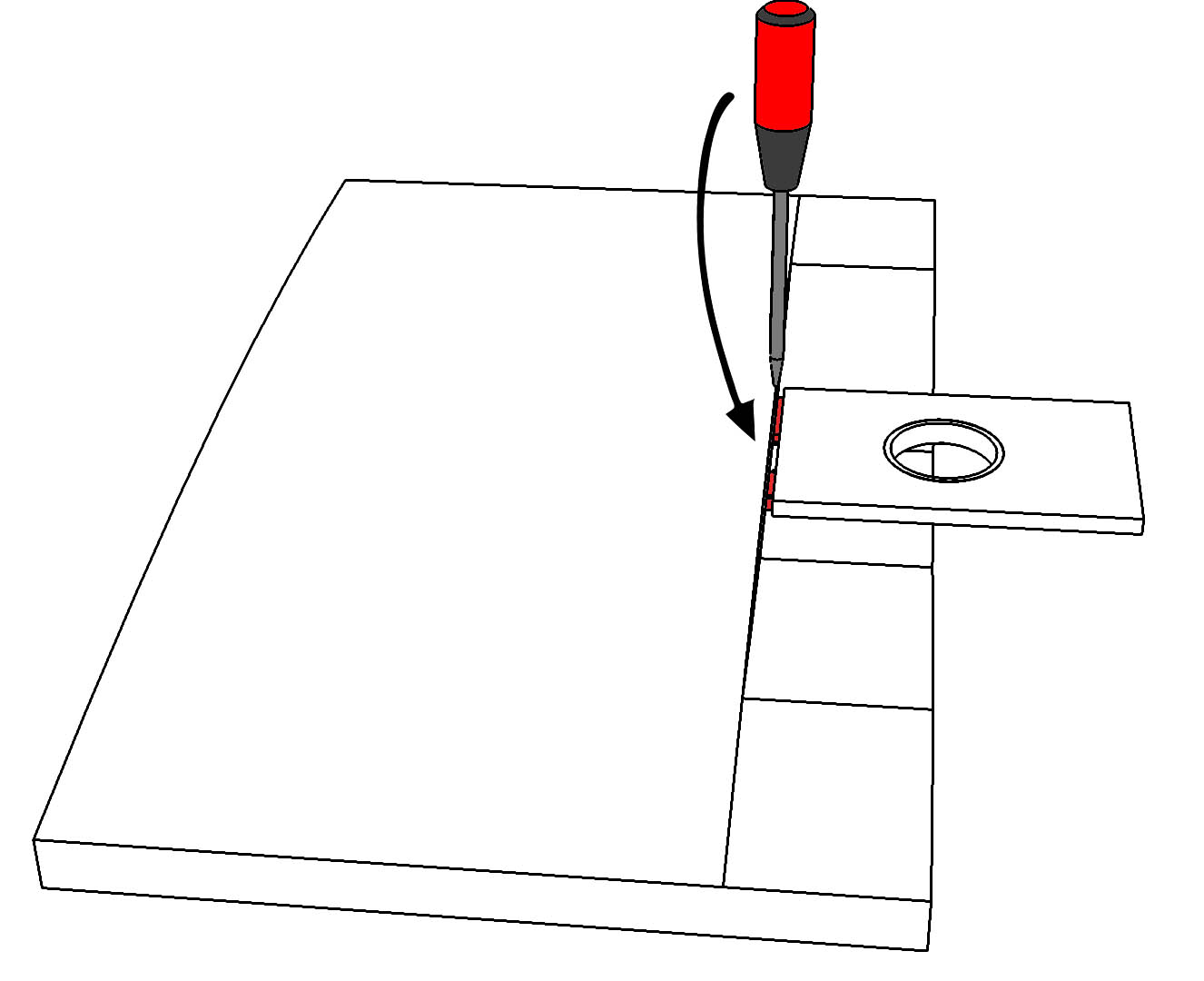

Step 1

Place your screen in a safe, soft place so that your screen does not get damaged.


Remove the base of your monitor if it is already attached. Use a screwdriver and press it into the white dot above the base.

de-se2417 VESA Adapter

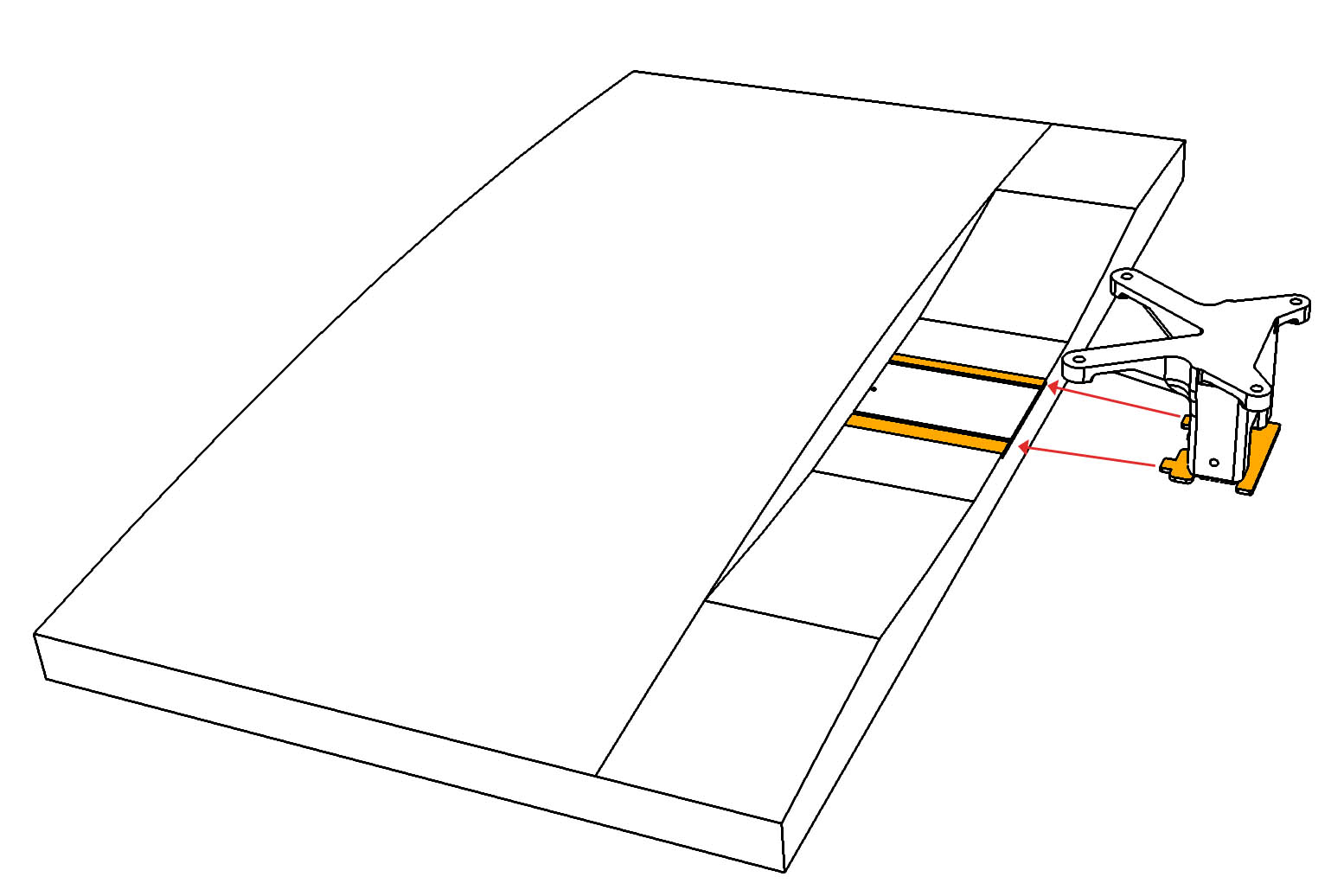

Step 2

Slide the VESA adapter into the screen as shown. (Figure 1)

When you hear a "click" sound, the adapter has successfully snapped into place and is securely connected to the screen.

To check: Pull a little on your adapter to test if it is properly engaged.

Figure 1 Figure 1

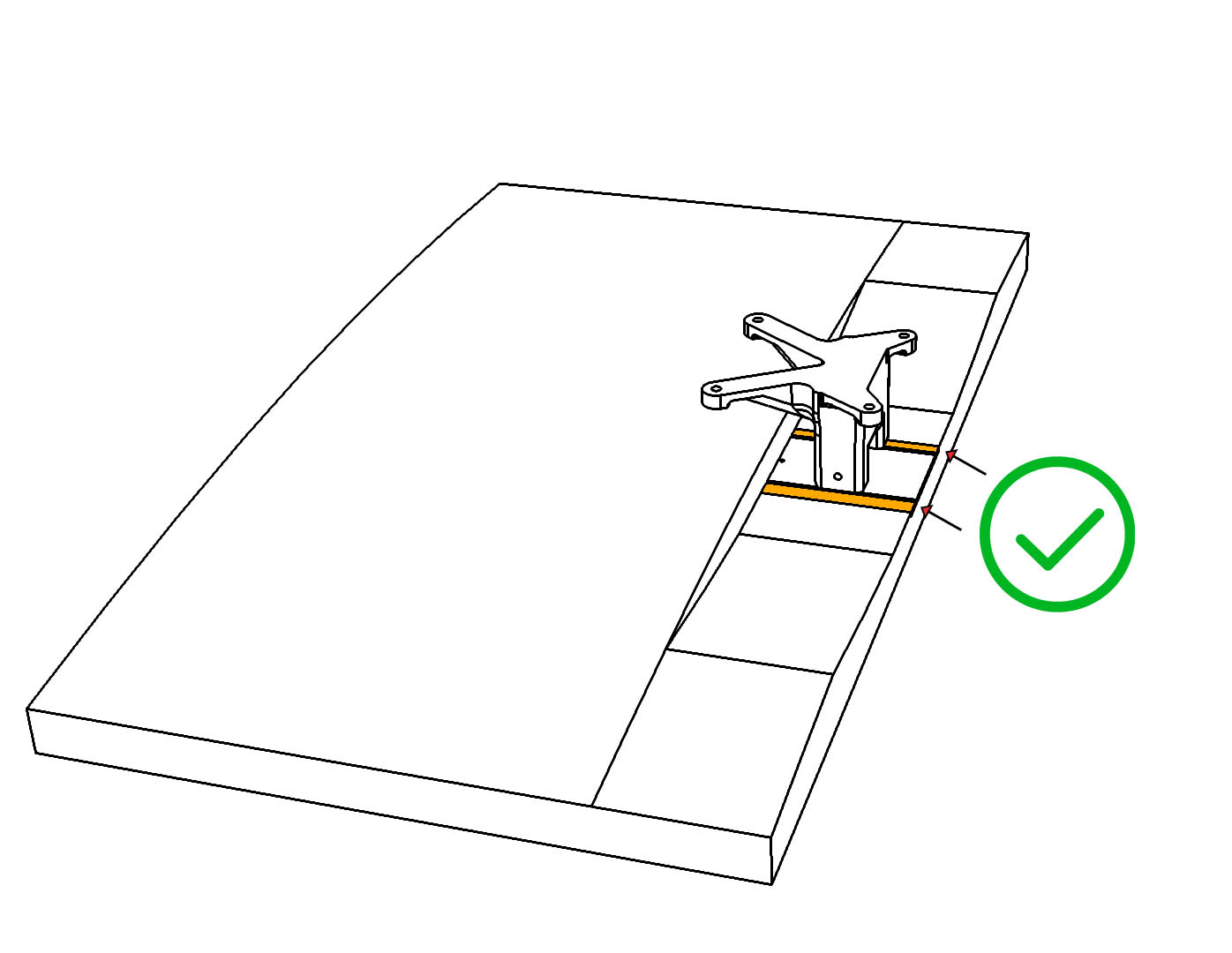

Step 3

Check again if the VESA adapter is firmly connected to the monitor. (Figure 2)

Figure 2 Figure 2

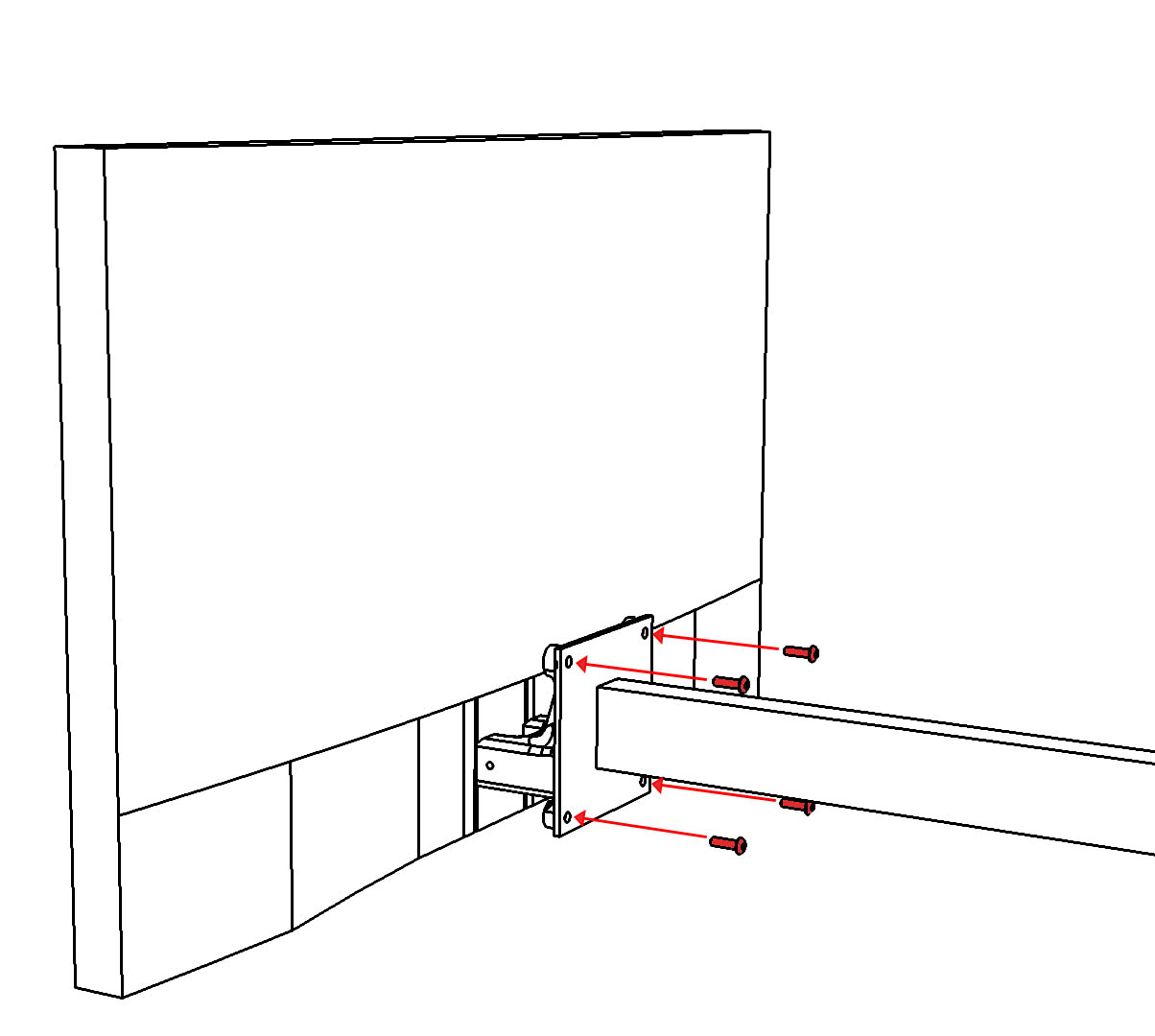

Step 4

For this step we recommend a 2nd person.

Now lift the monitor and hold it to your monitor mount. Fasten the VESA adapter with the 4 included M4x14 screws (screw bag: SP2).

It is best to fasten 2 screws diagonally first, so that the monitor cannot fall down and you can fasten the remaining screws without any effort.

ATTENTION: Pay attention to the right screws!

(Figure 3)

Figure 3 Figure 3

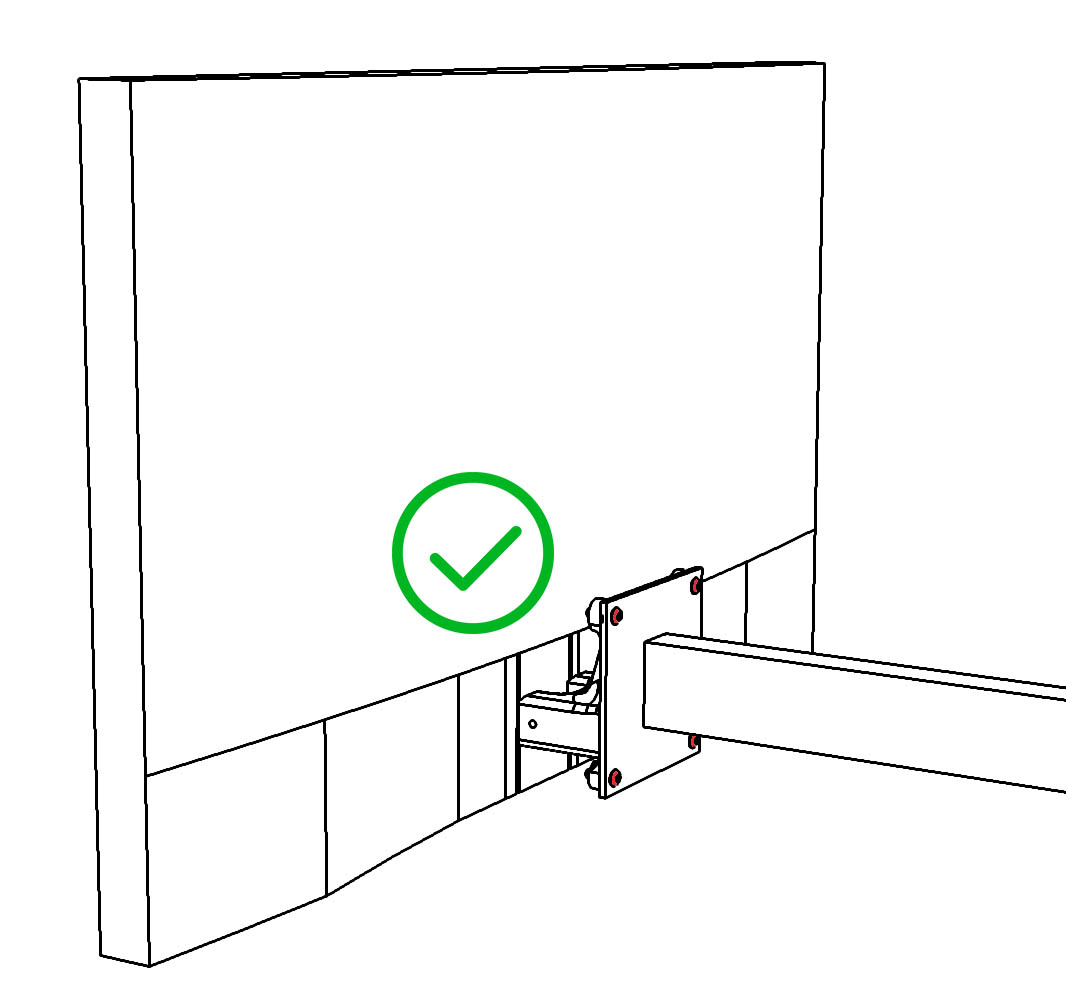

Step 5

When fully assembled, it should now look as shown. (Figure 4)

Figure 4 Figure 4
