VESA Adapter  /  HP

VESA adapter compatible with HP monitor (Pavilion 27q) - 75x75mm

3idee VESA adapter compatible with HP Pavilion 27q monitor. Easy installation. 75x75 mm
SKU:
AV1401
EAN:
5430002906072
Manufacturer:
3idee
Graduated prices:
1 16,70 €
2 16,03 €
3 15,70 €
4 - 5 15,37 €
6 - 9 15,03 €
10 - 39 14,03 €
> 40 13,36 €
Black
16,70 €
24h
incl. VAT, plus Shipping

Support

Phone: +352 661 267 276

E-Mail: info@vesa-adapter.com

Mon - Fri: 09:00 - 16:00

Payment methods

Paypal amazon pay Visa Mastercard klarna giropay

Shipping

DPD FedEx

Optimize the alignment of your HP Pavilion 27q monitor with our custom VESA adapter. Easily attach it to monitor arms, wall mounts and other VESA-compatible mounts to take advantage of flexible alignment and increase your workspace efficiency.

Compatibility

This VESA adapter is designed for the HP Pavilion:

  • 27q

Quality

Our VESA adapters are not only practical, but also sustainable and robust. Made from recycled PLA plastic using the latest 3D printing technology, they meet the highest quality standards. Each adapter is individually tested to ensure maximum durability. Learn more about our product safety standards.

Easy installation

Installation is child's play thanks to our click system. All necessary screws are included. A detailed instruction manual and PDF version are available.

Color options

Choose between different color options to perfectly match the adapter to your monitor and workstation.

Graduated prices

Benefit from our attractive discounts when ordering multiple adapters, both for private customers and companies.

VESA standard

Our adapter complies with the MIS-D VESA 75x75mm standard, giving you maximum flexibility when positioning your HP monitor.

The VESA adapter is compatible with the following products from hp (hp.com):

27q

The VESA adapter allows you to conveniently mount your HP brand monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and nuts.

If you want to mount your VESA adapter directly to the wall, use suitable screws and dowels (not included).


Here you can download the manual as a PDF

Download as PDF

Please read these instructions carefully

Please read these instructions carefully and keep them for future reference. If you pass the product on to third parties, these instructions should always be included. Failure to follow these instructions may result in injury or damage to persons or the product, for which we cannot accept any liability.



IMPORTANT - KEEP FOR FUTURE REFERENCE.

• This product should always be used in accordance with the specified safety instructions.
• Do not install your VESA adapter in combination with the monitor in places where there are people below.
• Do not exceed the maximum weight of the compatible monitor models as this may result in serious injury or damage to property.
• Observe the maximum ambient temperature of 35°C when using the product.
• Do not mount the VESA adapter near a heat source or in direct sunlight, as this could heat up the adapter.
• Check whether your mounting point (e.g. monitor arm) can withstand the weight of the monitor with VESA adapter.
The product is designed exclusively for mounting with a hole pattern of 75x75 mm.
• After installing the VESA adapter, the position of the monitor must be readjusted to ensure correct ergonomics.

⚠ CAUTION
Ensure that the device is switched off and disconnected from the power supply before installation to avoid possible injury or damage.

1. Before First Use

Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.

⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.

2. Maintenance and Cleaning

2.1 Maintenance

- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.

2.2 Cleaning

- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.

3. Waste Disposal

For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.

4. Manufacturer Information

3idee Technologies S.à r.l.
5 Um Lenster Bierg
L-6125 Junglinster
Luxembourg

5. Help and Feedback

If you need help with your article, we are here for you. We also appreciate any feedback.

https://help.3idee.eu/en/contact

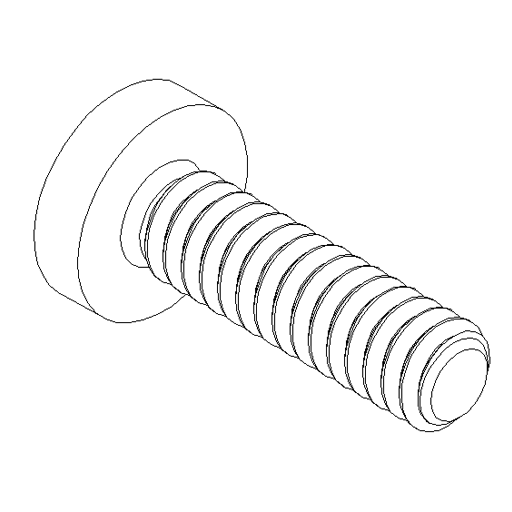

M4x14 screw with cross recess (SP18)

4x M4x14 screw with cross recess (SP18)

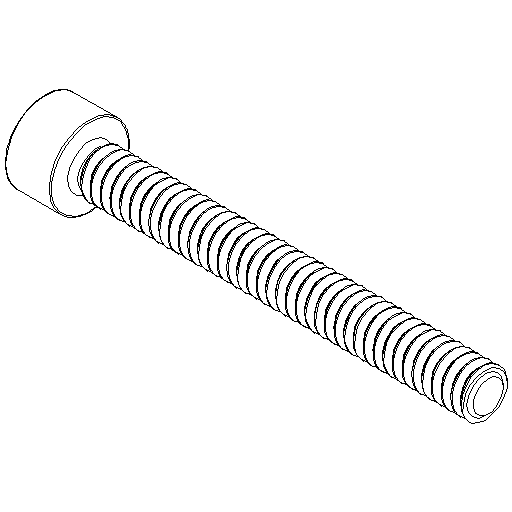

M4x35 cylinder head screw (SP18)

1x M4x35 cylinder head screw (SP18)

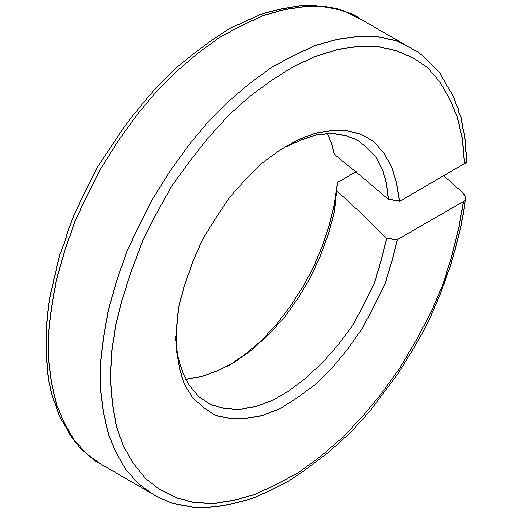

Spring washer for M4 (SP18)

1x Spring washer for M4 (SP18)

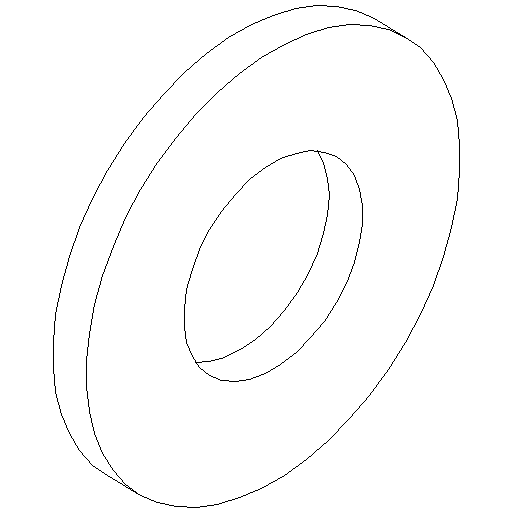

U washer for M4 (SP18)

1x U washer for M4 (SP18)

Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly.

We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.

However, monitors are designed for horizontal alignment by default.

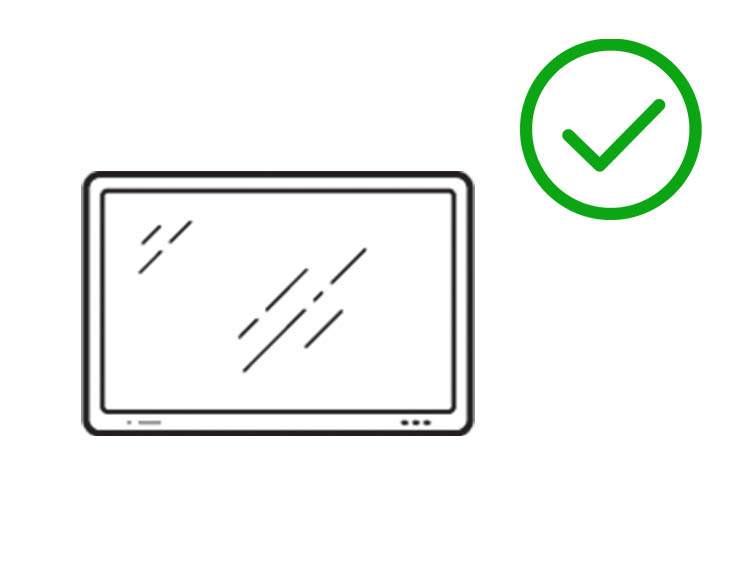

Horizontal Mounting: YES

hp-q VESA Adapter

Vertical Mounting:  YES

hp-q VESA Adapter
Step 1

Remove the base of your monitor.


Step 2

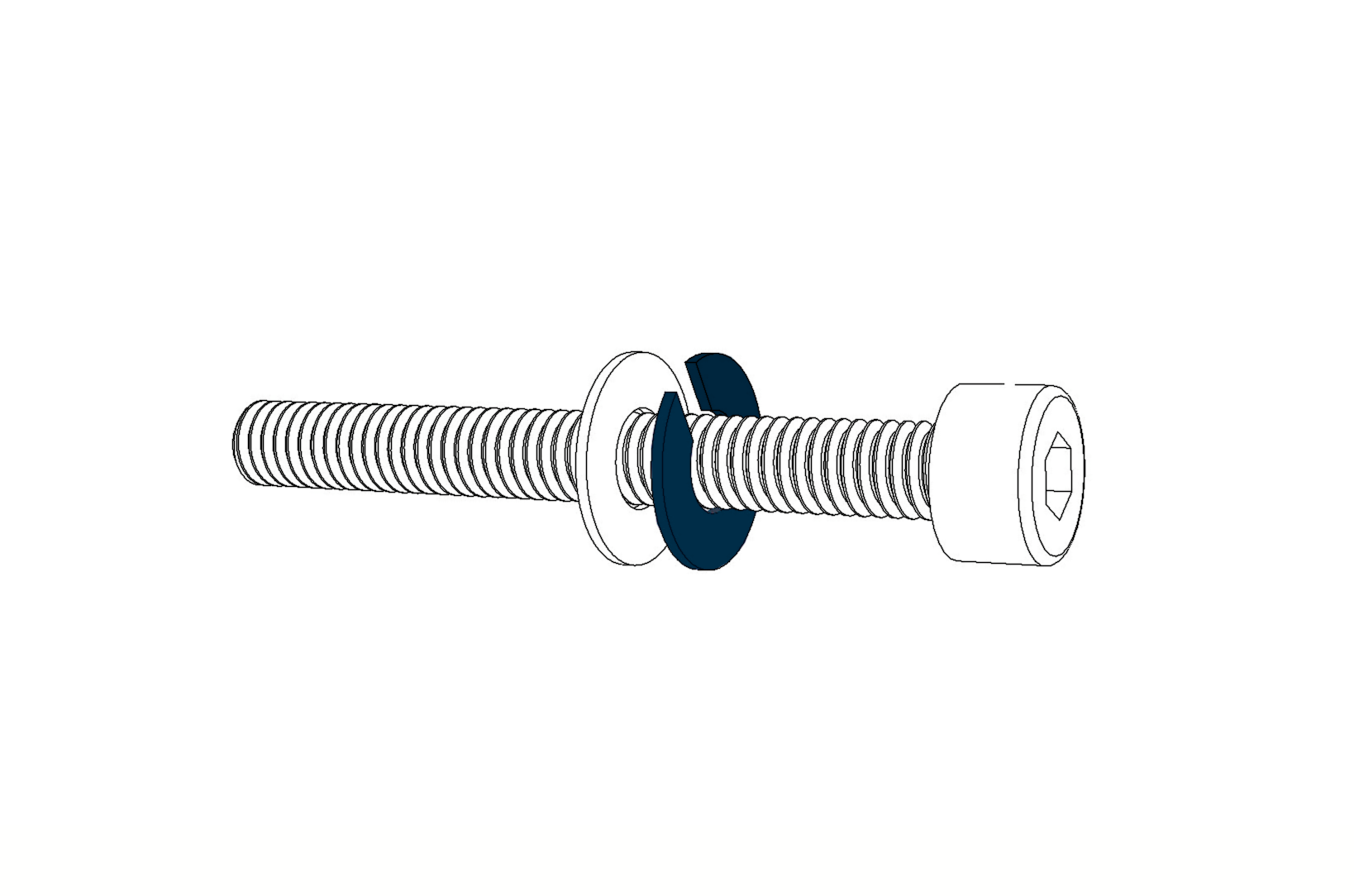

Before we start: It is important that you pay attention to the correct order of the long mounting screw. First slide the spring washer (write with slot) and then the normal washer onto the screw. (Figure 1)

Figure 1 Figure 1

Step 3

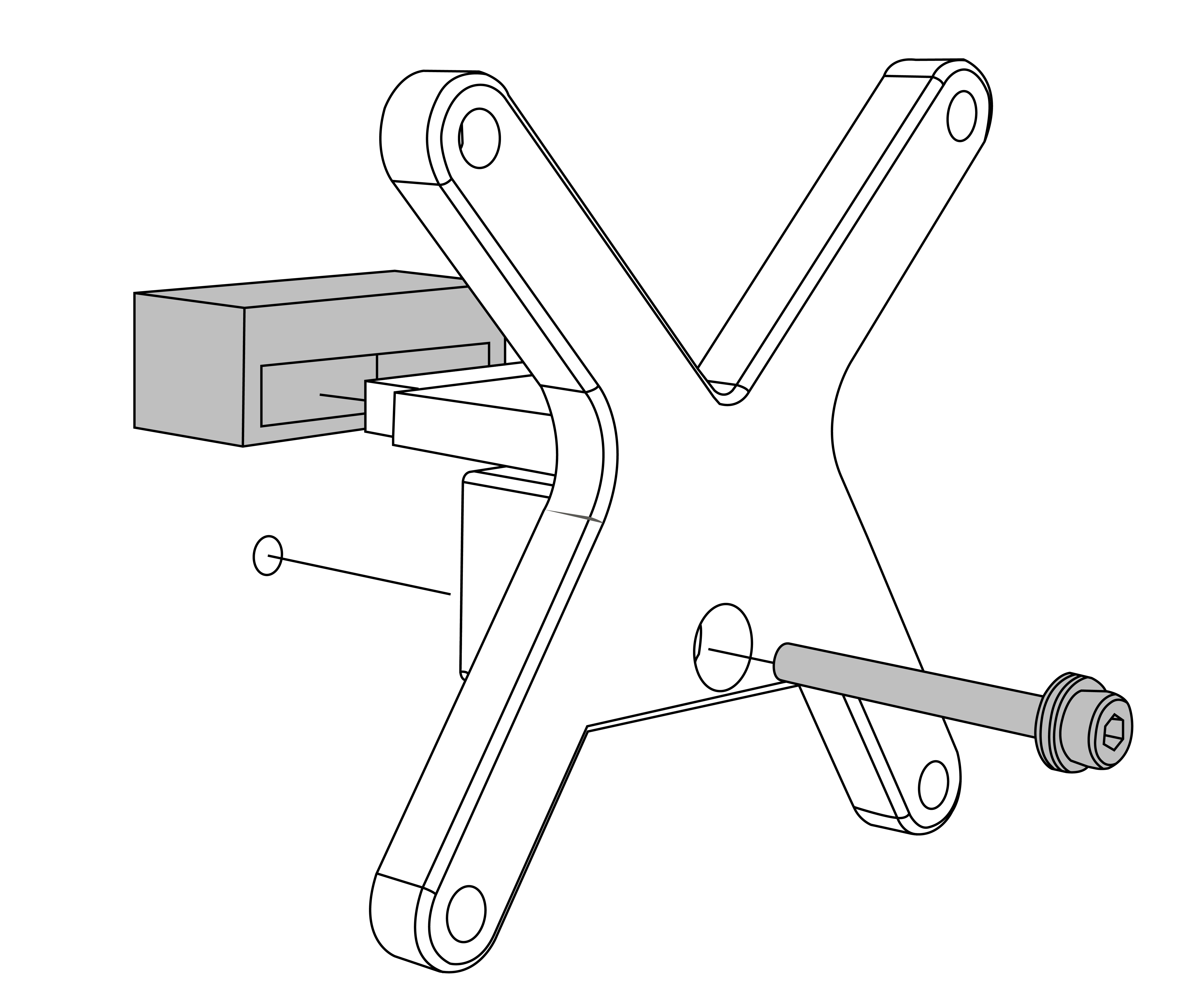

Insert the adapter into the screen and fix it with the long screw. (Figure 2)

Figure 2 Figure 2

Step 4

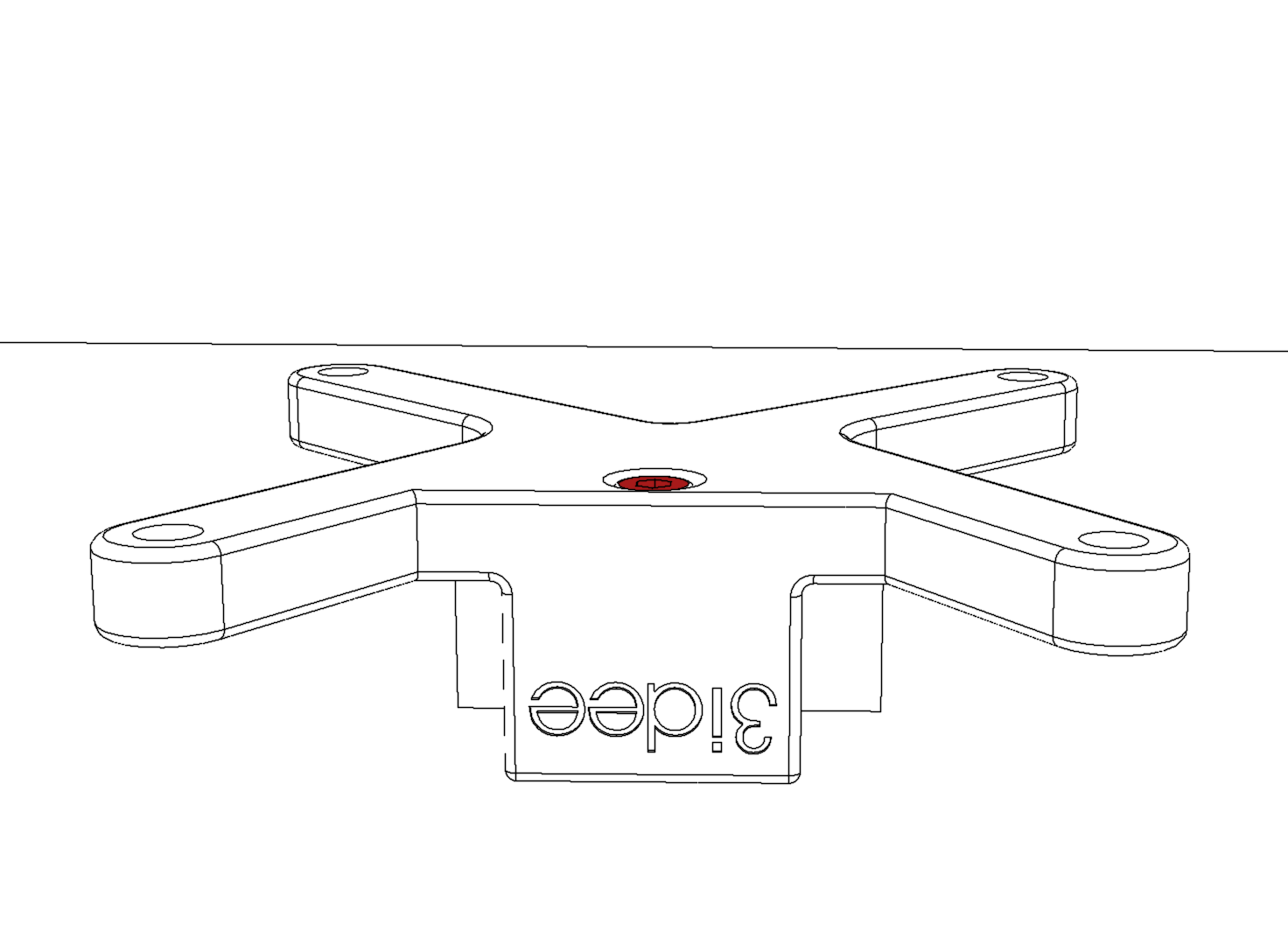

Make sure that the screw is properly tightened and no longer protrudes.

Attention: Tighten the screw with feeling! The plastic could otherwise break

(Figure 3)

Figure 3 Figure 3

Step 5

For this step we recommend a 2nd person.

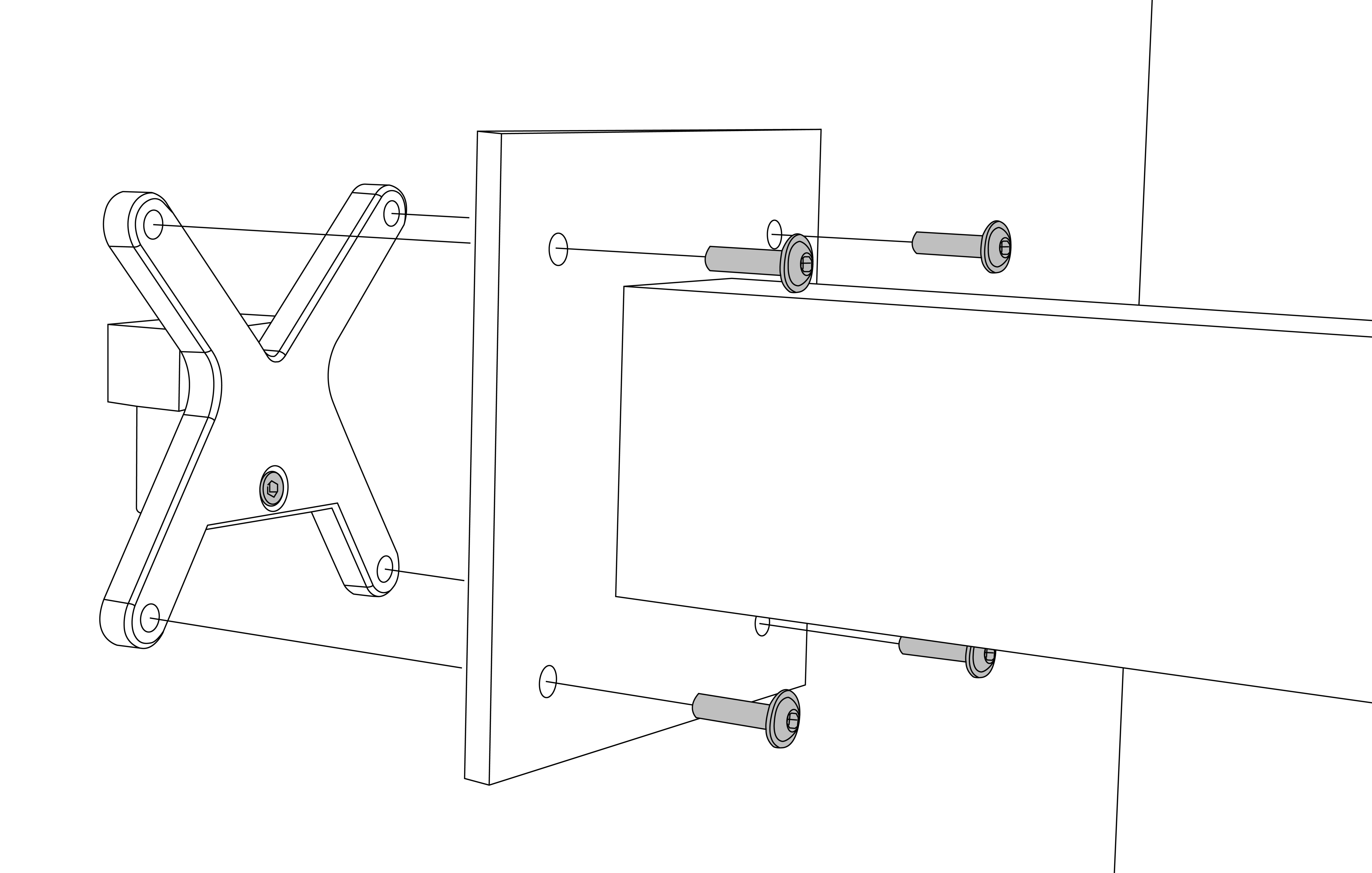

Now lift the monitor and hold it to your monitor mount. Fasten the VESA adapter with the 4 included M4x14 screws (screw bag: SP2).

It is best to fasten 2 screws diagonally first, so that the monitor cannot fall down and you can fasten the remaining screws without any effort.

ATTENTION: Pay attention to the right screws!

(Figure 4)

Figure 4 Figure 4
