Attach HP Pavilion 32 QHD monitor to monitor arms or wall mounts with our VESA adapter.
| 1 - 4 | 24,57 € |
| 5 - 9 | 24,08 € |
| 10 - 19 | 23,59 € |
| 20 - 39 | 22,60 € |
| > 40 | 22,11 € |
--75x75mm___152_0_316973.jpg)
--75x75mm___164_0_630994.jpg)
--75x75mm___153_0_556069.jpg)
--75x75-mm___177_0_832493.jpg)
--75x75mm___161_10_116100.jpg)
--75x75mm___107_0_832217.jpeg)
--75x75mm___112_0_228978.jpeg)
--75x75mm___114_3_462464.jpg)
--75x75mm___113_0_611295.jpeg)
--75x75mm___109_0_404329.jpeg)
--75x75mm___132_0_116872.png)
--75x75mm___108_0_294780.jpg)
--75x75mm___187_0_903888.jpg)
--75x75mm___176_0_709543.jpg)
--75x75mm___115_0_949300.jpeg)
--75x75mm___203_0_199917.jpg)
--75x75mm___147_0_840415.jpg)
Improve your working environment by making your HP Pavilion 32 QHD monitor VESA-ready. Our custom VESA adapter makes mounting to monitor arms or wall mounts a breeze.
Compatibility
Our VESA adapter was developed specifically for the following HP monitor:
Quality
Our VESA adapter offers high stability thanks to its steel part. Manufactured with the latest technology, it meets the highest quality standards. Each adapter is individually tested to ensure maximum load capacity. Learn more about our product safety standards.
Easy installation
Installation is child's play. Simply slide the monitor into the VESA adapter. All necessary screws are included in the scope of delivery. A detailed instruction manual and PDF version are available.
Graduated prices
Discounts are available from the second adapter order for both private customers and companies.
VESA standard
Our adapter complies with the MIS-D VESA standard 75x75mm, giving you maximum flexibility when positioning your HP monitor.
Table of contents
The VESA adapter is compatible with the following products from hp (hp.com):
Pavillion 32 QHD
With the VESA adapter, you can easily attach your HP monitor to a monitor arm with a VESA hole pattern (75 x 75mm). Use the supplied screws and nuts for this.
Direct wall mounting is NOT possible, as the VESA adapter already contains metric threads through which no screws can be inserted for mounting to the wall.
Here you can download the manual as a PDF
 |
Please read this manual carefully and keep it for future reference. If you pass the product on to third parties, this manual should always be included. Ignoring these instructions may result in injuries or damage to people and products, for which we cannot accept any liability. |
||||||
IMPORTANT - KEEP FOR FUTURE REFERENCE.
• The use of this product should always be in accordance with the specified safety instructions.
• Do not install your VESA adapter in combination with the monitor in places where people are located below.
• Do not exceed the maximum weight of the compatible monitor models, as this may result in serious injuries or property damage.
• Pay attention to the maximum ambient temperature of 35°C when using the product.
• Do not mount the VESA adapter near a heat source or in direct sunlight, as this may cause the adapter to overheat.
• Check if your mounting point (e.g., monitor arm) can support the weight of the monitor with the VESA adapter.
• The product is designed exclusively for mounting with a hole pattern of 75x75 / 100x100mm / 200x200mm.
• After installing the VESA adapter, the position of the monitor must be readjusted to ensure proper ergonomics.
⚠ WARNING
Ensure that the device is turned off and disconnected from the power supply before installation to avoid possible injuries or damage.
Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.
⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.
2.1 Maintenance
- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.
2.2 Cleaning
- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.
For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.
3idee S.à r.l.
19 Rue de Bitbourg
L-1273 Luxembourg
Luxembourg
mail: info@3idee.eu
If you need help with your article, we are here for you. We also appreciate any feedback.
https://help.3idee.eu/en/contact
4x M4x14 screw with cross slot (SP2)
1x M4x35 screw with cross slot (SP24)
⚠ NOTE: Not all VESA adapters and monitors are designed for a vertical (portrait) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can be quickly exceeded if not mounted properly.
We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.
By default, however, monitors are designed for a horizontal orientation.
Horizontal Mounting: YES
Vertical Mounting: NO
Place your HP monitor securely on a soft surface.
Remove the base of your HP monitor if it is attached.
Loosen the screw that connects the base to your monitor and pull the base off.

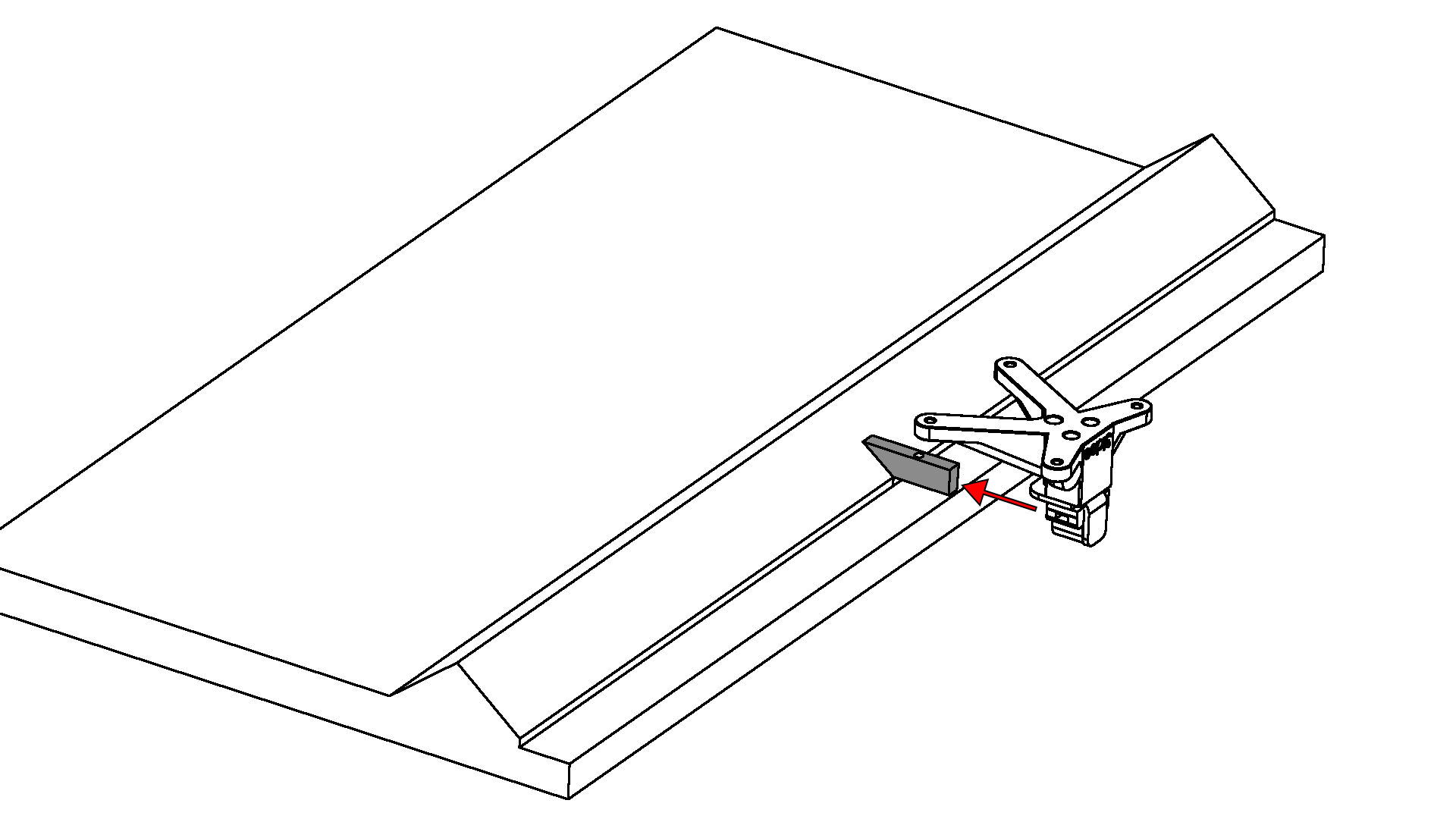

Now slide the 3idee VESA adapter into the mount of your monitor as shown. (Figure 1)
A little force is required for this.
Figure 1
Make sure that the hole in the monitor mount is aligned with the hole in the VESA adapter.

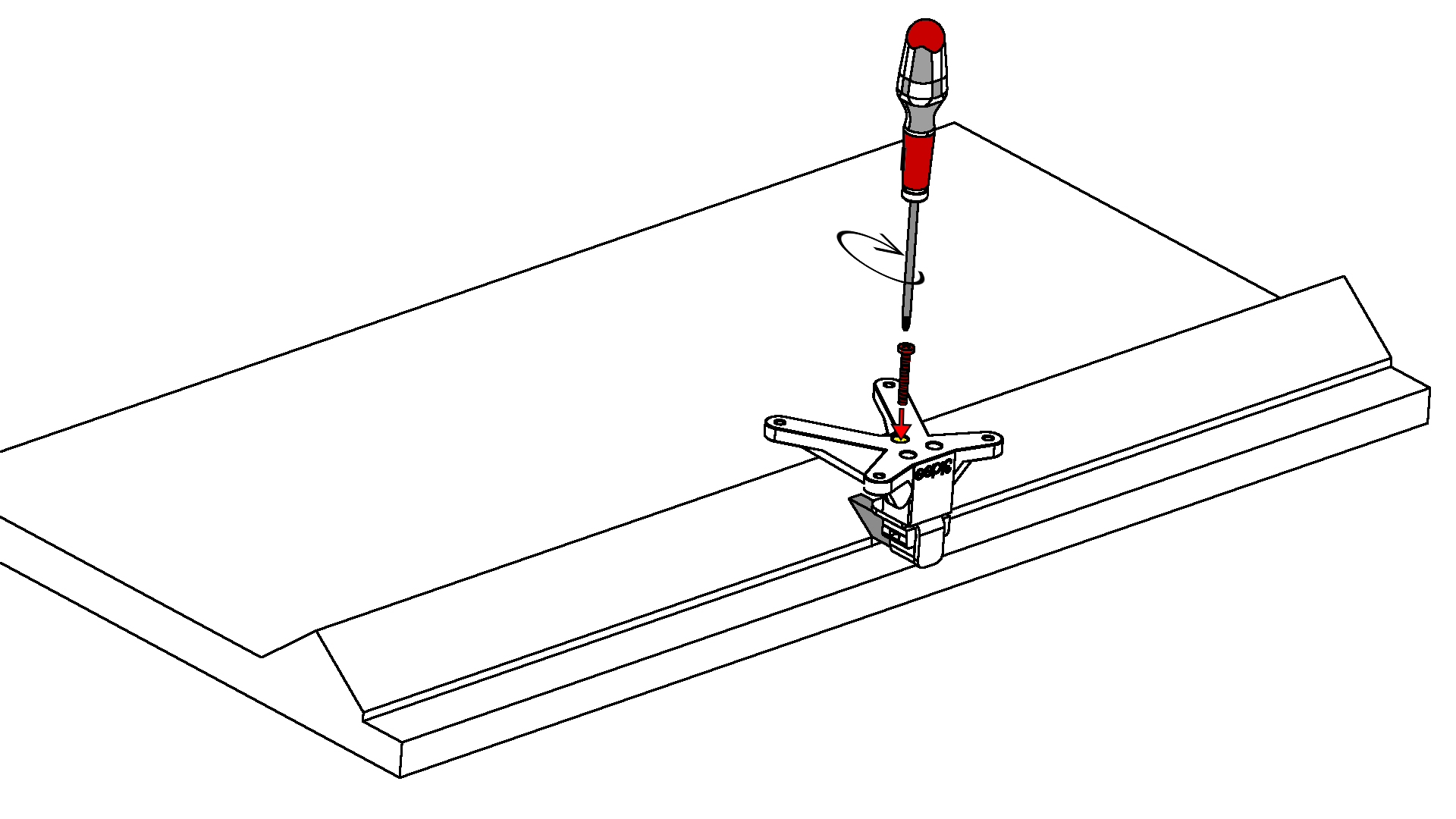

Now use the included short screw and tighten the VESA adapter to your monitor. (Figure 2)
Figure 2
⚠ Important: If the instructions in this step are not suitable for your device, please follow the mounting guidelines of the manufacturer of your monitor arm or swivel arm to mount the monitor to the wall or swivel arm.
We recommend a second person for this step.

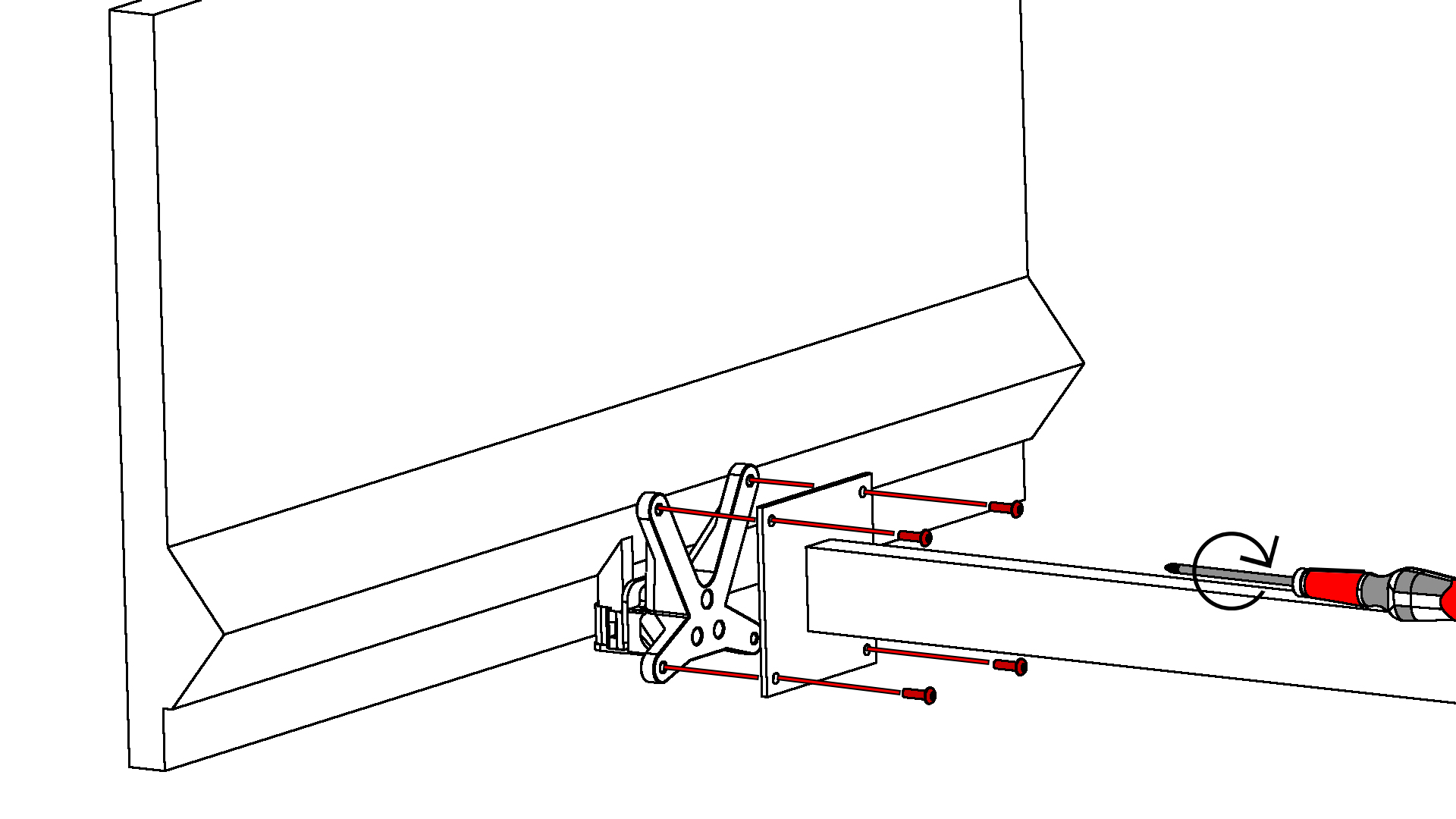

Now lift the monitor and hold it against your monitor mount. Attach the VESA adapter using the 4 M4x14 screws supplied (screw bag: SP2).
It is best to fasten 2 screws diagonally first so that the monitor can no longer fall down and you can fasten the remaining screws easily.
ATTENTION: Make sure you use the right screws!
(Figure 3)
Figure 3

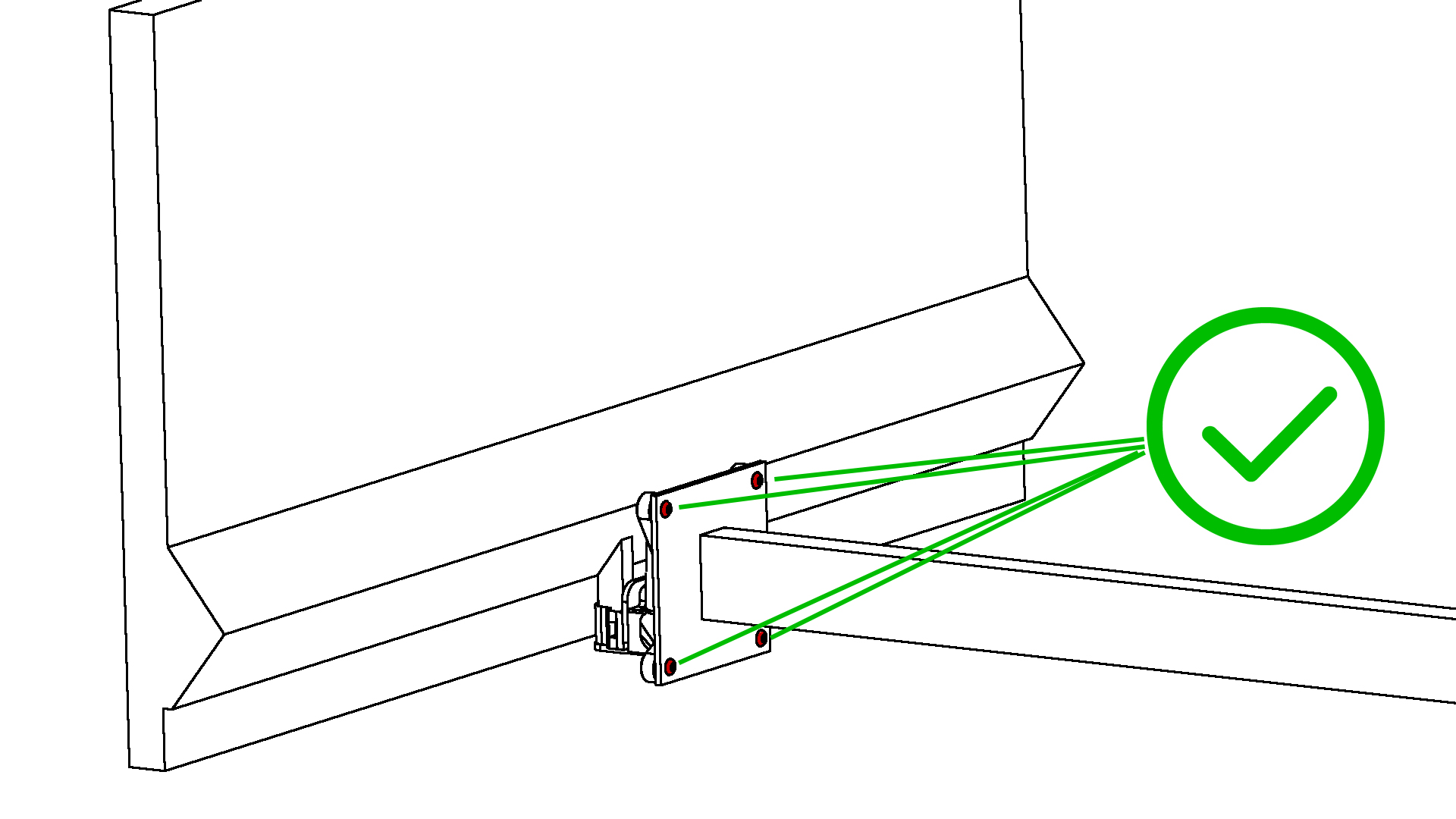

Please make sure that all 4 screws are tight. (Figure 4)
Figure 4
