3IDEE VertiFlex Height-Adjustable VESA Adapter

3IDEE VertiFlex VESA Height Adapter for Monitors

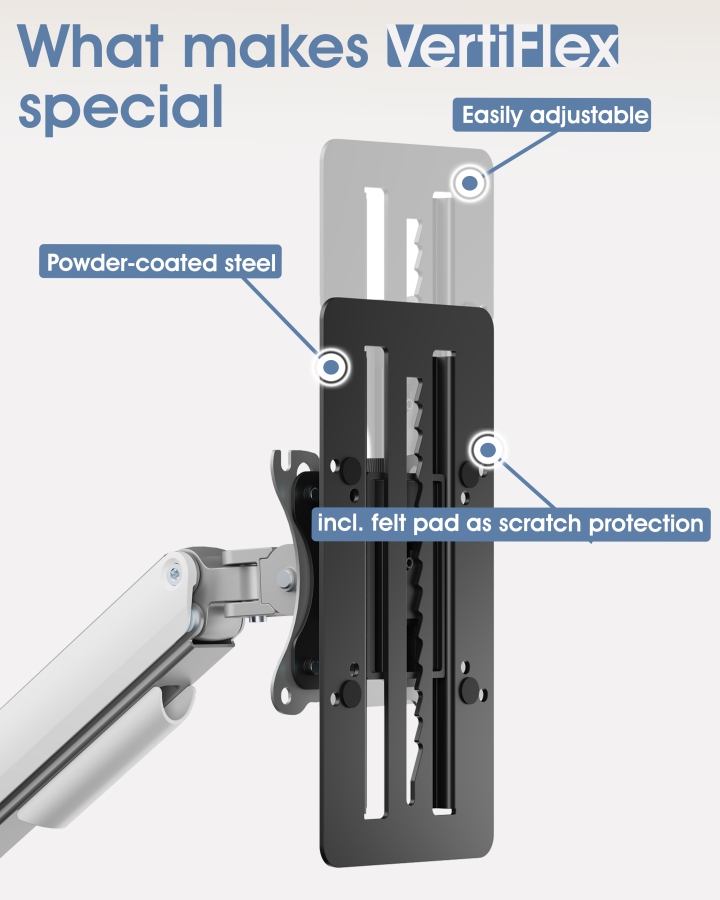

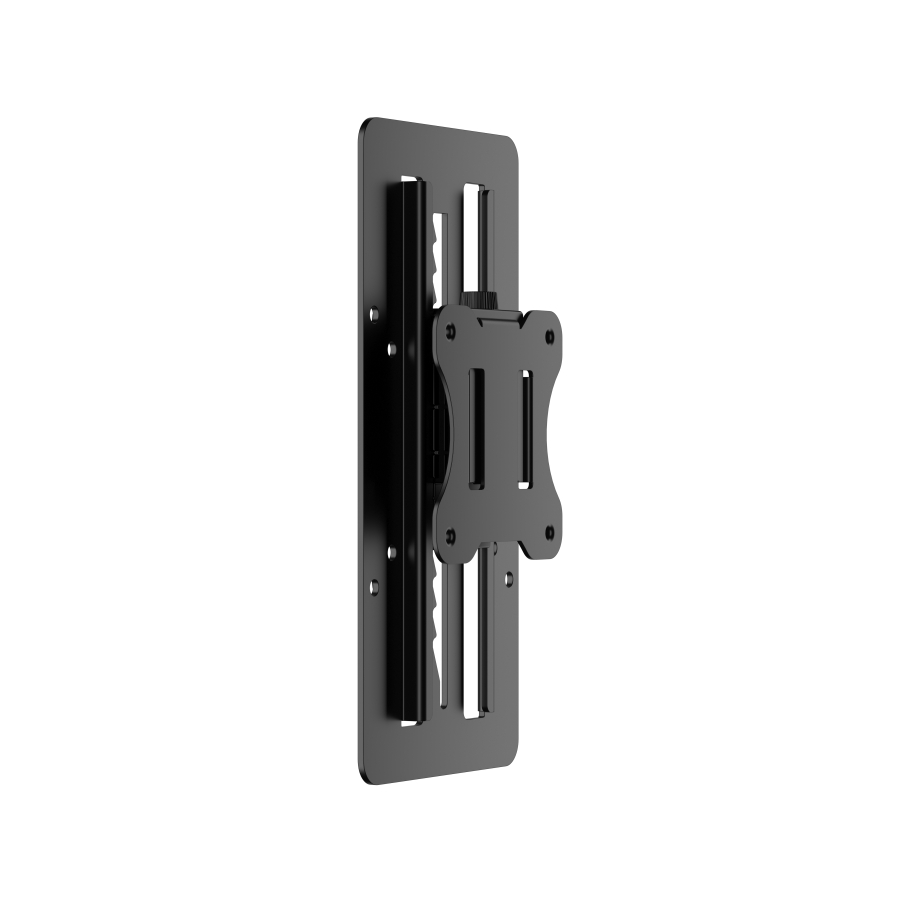

The 3IDEE VertiFlex VESA Height Adapter enables precise vertical adjustment of your monitor directly at the VESA mount. It is compatible with VESA 75x75 mm and VESA 100x100 mm and allows height adjustment of up to 15 cm.

The adapter is installed between the monitor and the mount. This allows you to move a monitor up or down without having to reinstall or reposition the monitor arm, desk mount, or wall mount. It is particularly useful for dual-monitor setups, rigid crossbars, or monitors with different heights.

When is the VertiFlex the right solution?

The VertiFlex is useful when your monitor already has a compatible VESA mounting interface, but its height is not quite right. This is particularly relevant for multi-monitor setups or mounts that do not provide sufficient individual height adjustment.

• • Align monitors at the same height: Ideal when two screens positioned side by side are not perfectly aligned.
• • Align a dual-monitor setup: Particularly helpful with rigid crossbars or mounts without separate height adjustment for each monitor.
• • Fine-tune a wall-mounted monitor: Useful if the monitor sits slightly too high or too low after installation.
• • Compensate for different monitor models: Helpful when the VESA mounting positions are located at different heights on two monitors.

Height adjustment of up to 15 cm

The VertiFlex provides height adjustment of up to 15 cm. This allows you to vertically align your monitor so that the top or bottom edge lines up neatly with a second screen.

The height adjustment takes place directly between the VESA plate and the monitor. This is particularly practical when the existing mount is stable but does not offer sufficient fine adjustment.

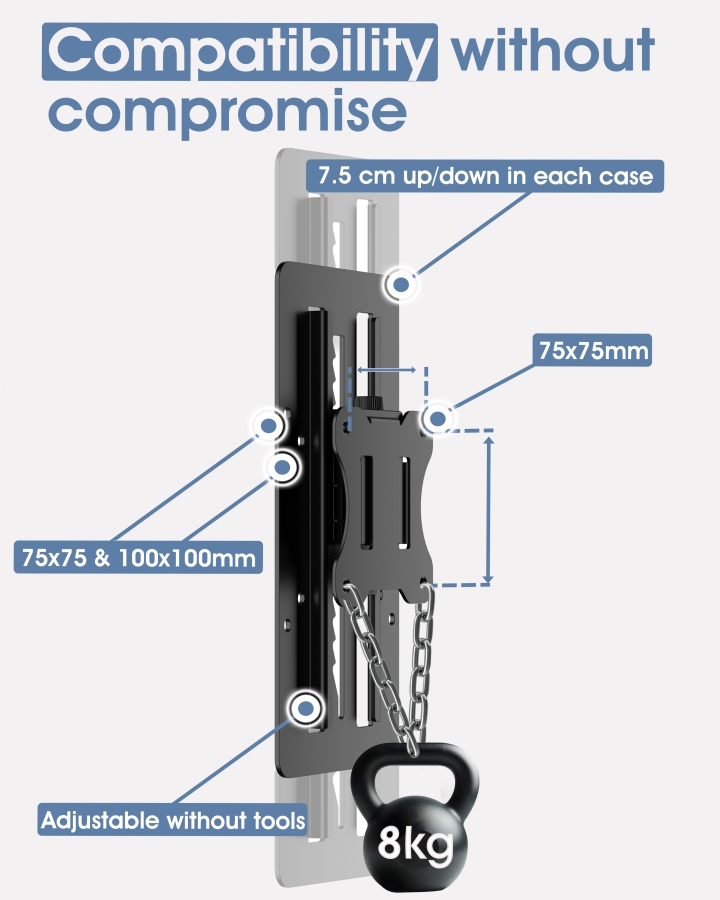

Compatible with VESA 75x75 and 100x100

The adapter is designed for monitors and mounts with VESA 75x75 mm and VESA 100x100 mm. It is essential that your monitor has a compatible VESA mounting interface and that the weight is within the permitted load capacity.

If you are unsure about your VESA size, measure the distance between the mounting holes from center to center. A spacing of 75 mm corresponds to VESA 75x75, while 100 mm corresponds to VESA 100x100.

For monitors up to 8 kg

The VertiFlex is designed for monitors weighing up to 8 kg. Before installation, check the weight of your monitor and make sure that your existing monitor mount is also suitable for this weight.

The monitor, VESA mount, adapter, and screws must be mechanically compatible. Therefore, always check the VESA size, weight, thread depth, screw length, and available clearance on the back of the monitor before installation.

Important before purchasing

The VertiFlex sits flat against the monitor. It is therefore not automatically suitable for monitors with deeply recessed VESA mounting points, curved rear housings, or centrally positioned connectors.

• • Recessed VESA mounting points: If the VESA mounting points are deeply recessed into the housing, additional suitable VESA spacers may be required.
• • Centrally positioned connectors: If power or video connectors are located in the center of the monitor's rear panel, the adapter may obstruct them.
• • No change to the mounting pattern: The VertiFlex is designed for height adjustment. It does not replace a standard VESA adapter plate for changing the mounting pattern.

Difference between an adapter plate and a spacer

The VertiFlex is a VESA height adapter. Its purpose is to vertically align the monitor. It is not the same as a VESA adapter plate or a VESA spacer.

• • VertiFlex VESA Height Adapter: moves the monitor up or down.
• • VESA adapter plate: adapts different mounting patterns, for example 75x75 to 100x100 or 100x100 to 200x200.
• • VESA spacer: creates additional space between the back of the monitor and the mount.

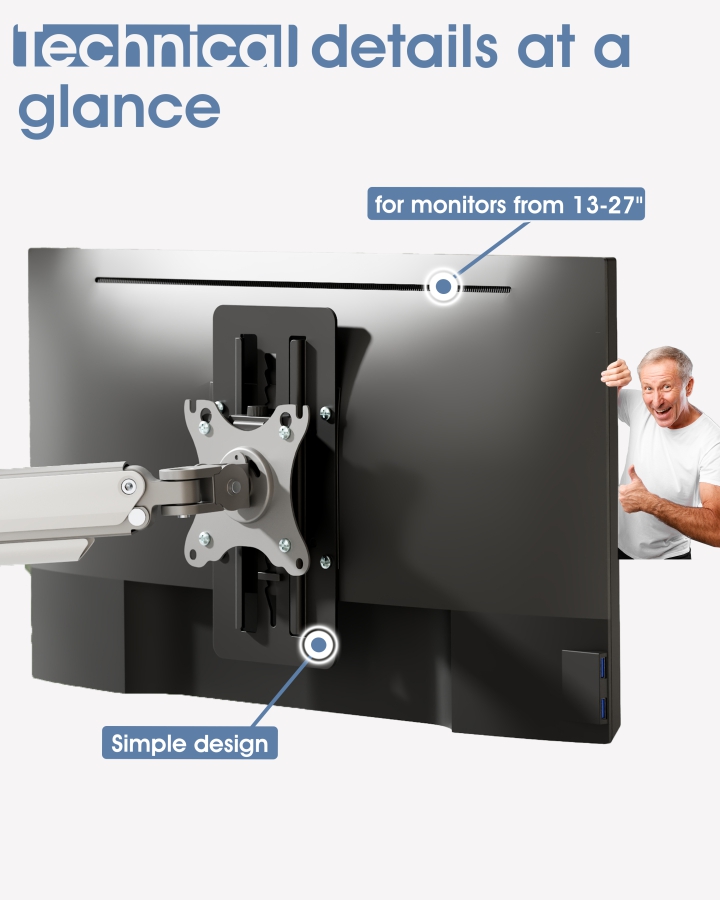

Technical specifications

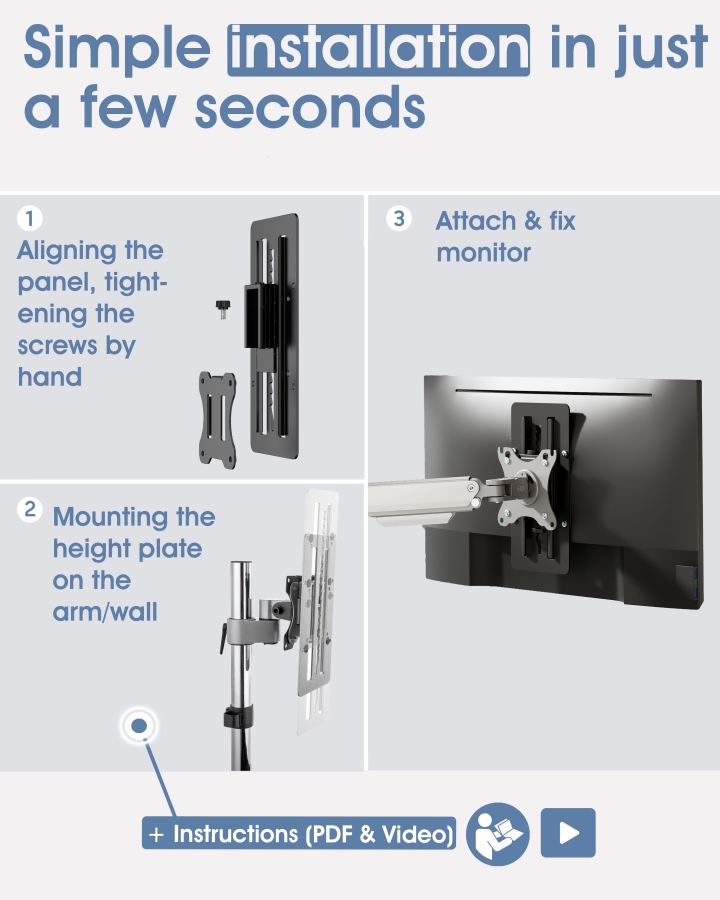

Installation instructions

1. Check whether your monitor has a VESA 75x75 or VESA 100x100 mounting pattern.
2. Check that your monitor weighs no more than 8 kg.
3. Make sure that connectors and cables on the back of the monitor are not obstructed by the adapter.
4. Install the VertiFlex between the monitor and the VESA mount.
5. Adjust the monitor vertically until the desired height is reached.
6. After installation, check that all screws are securely tightened.

Note: Before installation, always check the VESA size, monitor weight, screw length, thread depth, and clearance on the back of the monitor. Additional spacers may be required for recessed VESA mounting points.
