3IDEE VESA Adapter 200x200

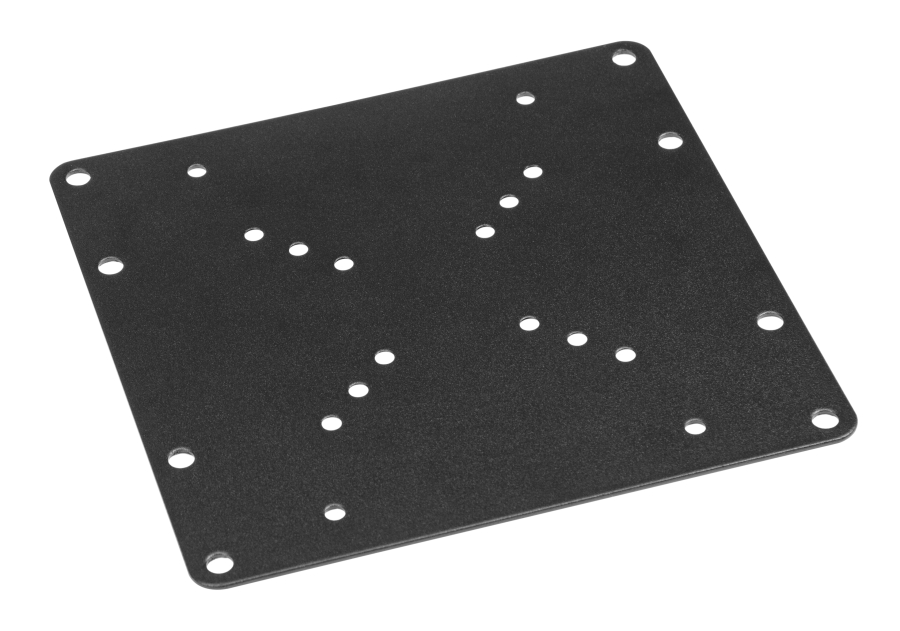

VESA Adapter Plate 100x100 to 200x200

This VESA adapter plate expands smaller VESA mounting patterns to 200x200 mm. It is ideal when your monitor, TV, or mount is VESA-compatible, but the existing mounting pattern does not match the required mounting points.

Typical applications include VESA 50x50 to 200x200, VESA 100x100 to 200x200, and VESA 200x100 to 200x200. This allows you to continue using existing monitor arms or TV wall mounts when only the VESA mounting pattern needs to be adapted.

Which VESA sizes can be expanded?

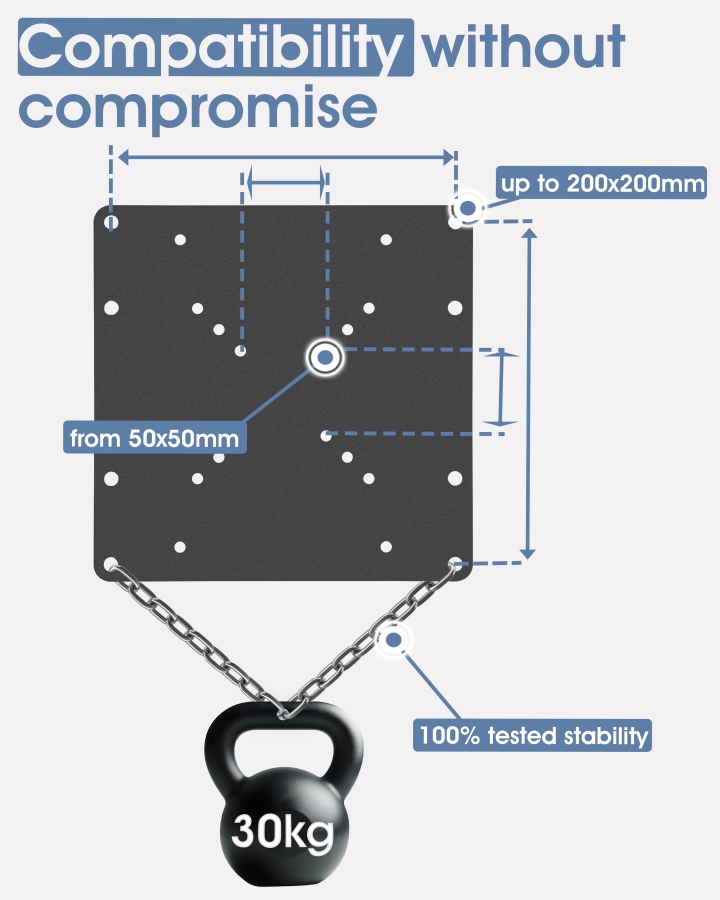

The adapter plate is designed for setups where an existing VESA mounting pattern needs to be expanded to 200x200 mm. The key measurement is the distance between the centers of the mounting holes.

• • VESA 50x50 to 200x200: For smaller mounting patterns that need to be expanded to a larger 200x200 mounting pattern.
• • VESA 100x100 to 200x200: The most common application when an existing 100x100 mounting pattern does not match the mount.
• • VESA 200x100 to 200x200: When a rectangular mounting pattern needs to be adapted to a square 200x200 configuration.

For monitors and TVs up to 42 inches

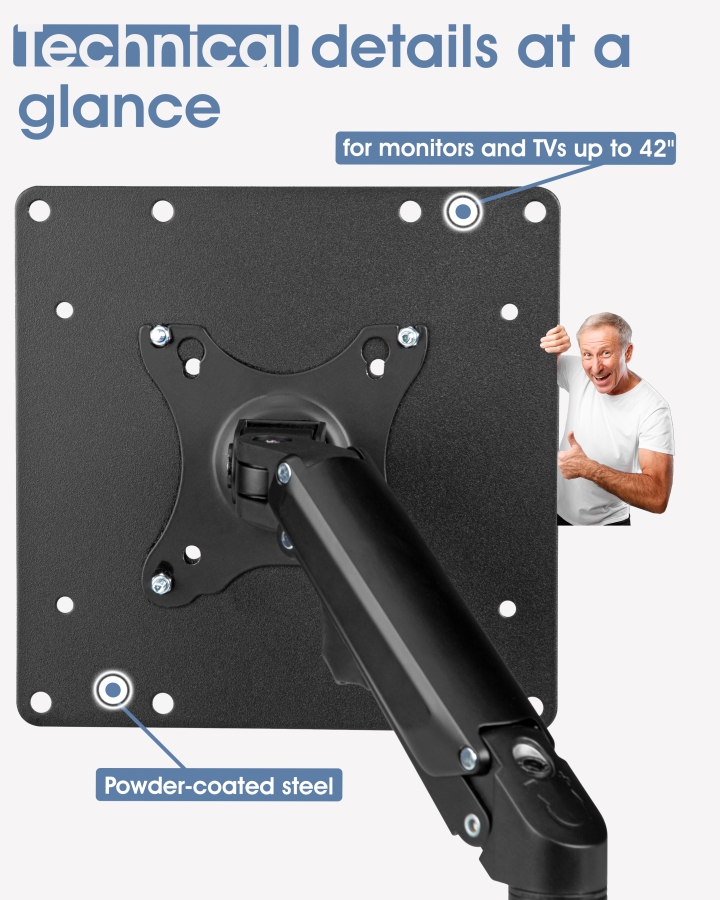

The 3IDEE VESA adapter plate is designed for monitors and TVs up to 42 inches and supports loads of up to 30 kg. This makes it suitable for many monitor arms, smaller TV wall mounts, and setups where an existing VESA mounting pattern needs to be expanded.

The adapter plate is made of powder-coated steel and is designed to provide a stable connection between the screen and the mount. Before installation, make sure that the screen weight, mount, screws, and VESA mounting pattern are compatible with each other.

When is this VESA adapter plate the right choice?

This adapter plate is the right choice when your monitor or TV already has VESA mounting holes, but they do not match the mounting pattern of your mount. It changes the VESA mounting pattern but does not provide additional clearance from the back of the screen.

• • Right choice: Your monitor has VESA 100x100, but the mount requires 200x200.
• • Right choice: Your TV or monitor has VESA 50x50 or 200x100 and needs to be expanded to 200x200.

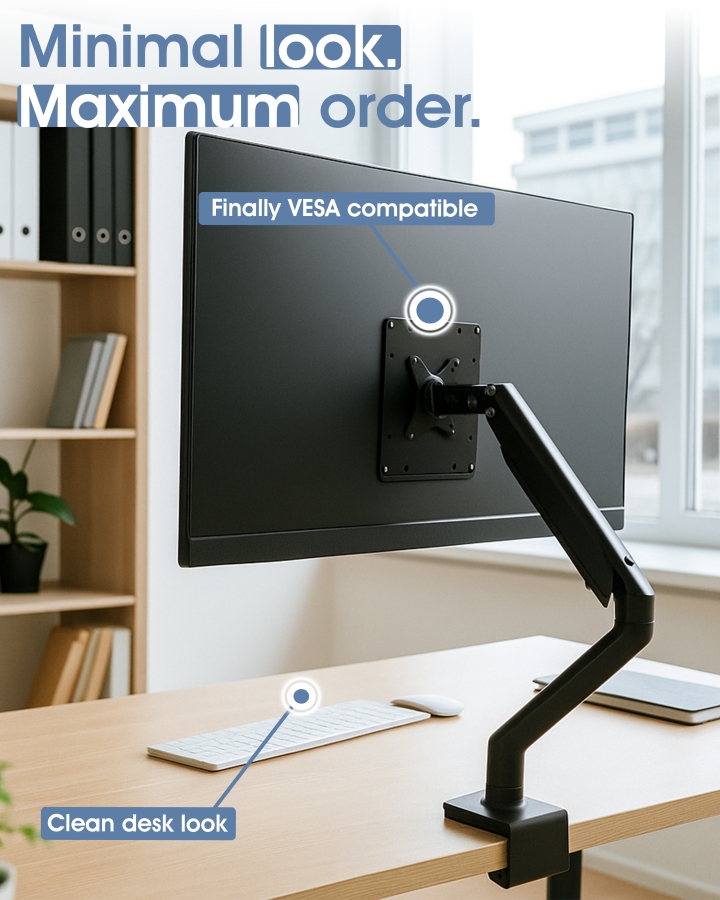

• • Right choice: You want to continue using an existing monitor arm or TV wall mount.
• • Not the right choice: Your monitor has no VESA mounting holes. In this case, you need a more suitable model-specific VESA adapter.
• • Not the right choice: The VESA plate cannot sit flush because of a recess or curved back panel. In this case, our guide to VESA spacers can help.

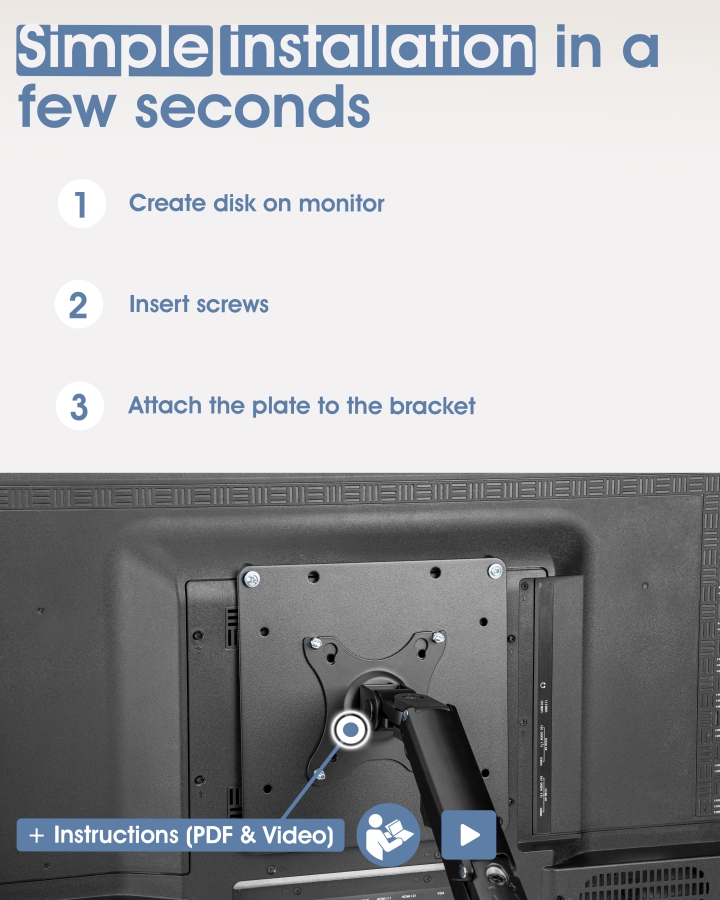

Installation: What should you keep in mind?

Before installation, measure the VESA size of your screen and the mounting pattern of your mount. It is important that the adapter plate fits mechanically and that the screws engage securely.

• • Measure the VESA size: Measure the horizontal and vertical distance between the mounting-hole centers.
• • Check the original size: For example, 50x50, 100x100, or 200x100.
• • Check the target size: This adapter plate expands the mounting pattern to 200x200 mm.
• • Observe the load capacity: The screen, adapter plate, mount, and wall or desk mounting system must be compatible with each other.

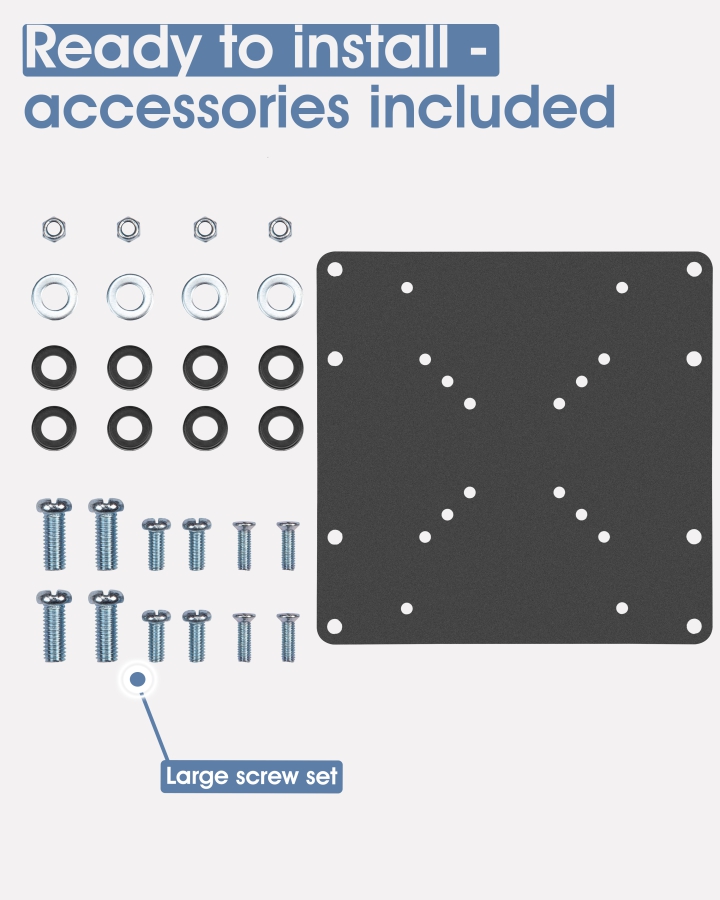

• • Check the screws: The screws must engage securely and must not be screwed in too deeply.
