75x75 mm VESA Adapter for AOC Monitors 24V2Q and 27V2Q - Easy installation by simply screwing the monitor onto the adapter.
| 1 - 4 | 18,67 € |
| 5 - 9 | 18,30 € |
| 10 - 19 | 17,92 € |
| 20 - 39 | 17,18 € |
| > 40 | 16,80 € |
--75x75mm___136_0_306359.jpg)
--75x75mm___154_0_566826.jpg)
Your AOC monitor cannot be attached to a wall mount or VESA monitor arm? With our VESA adapter for the AOC models 24V2Q and 27V2Q this will no longer be a problem!
Compatibility
This VESA adapter has been specially designed for AOC monitors and is compatible with the models:
Quality
Our VESA adapters are not only practical but also sustainable and robust. Made from recycled PLA plastic using state-of-the-art 3D printing technology, they meet the highest quality standards. Each adapter is individually tested to ensure maximum load capacity. Learn more about our product safety standards.
Graduated prices
Benefit from our attractive discounts when ordering multiple adapters, both for private customers and for companies.
Easy Installation
Installation is a breeze with our system. Simply screw the monitor onto the VESA adapter. All necessary screws are included in the delivery. A detailed instruction manual and a PDF version are available.
VESA Standard
Our adapter complies with the MIS-D VESA standard 75x75mm, offering you maximum flexibility in positioning your AOC monitor.
Table of contents
This VESA adapter is compatible with the following AOC brand monitors:
24v2q
27v2q
⚠ WARNING
To minimize the risk of injury, it is important to read all instructions carefully before installation. We accept no liability for personal or material damage caused by improper use of this product.
Also, be sure to pay attention to the technical specifications of the product.
1. Read all instructions thoroughly.
2. A faulty installation can lead to damage or serious injury. Ensure that the product and the monitor are securely mounted before use.
3. Make sure that the mount to which the product is attached can easily support the total weight of the monitor, computer, and adapter.
Here you can download the manual as a PDF
- Maximum monitor weight: 7 kg / 15.4 lbs
- VESA standard compatibility: 75x75 mm
- Material: plastic
- Pivot angle: not compatible
- Maximum operating temperature: 35°C / 95°F
- Maximum ambient temperature: 35°C / 95°F
⚠ WARNING
Exceeding the maximum load capacity, operating temperature or ambient temperature can lead to serious injury or damage.
 |
Please read this manual carefully and keep it for future reference. If you pass the product on to third parties, this manual should always be included. Ignoring these instructions may result in injuries or damage to people and products, for which we cannot accept any liability. |
||||||
IMPORTANT - KEEP FOR FUTURE REFERENCE.
• The use of this product should always be in accordance with the specified safety instructions.
• Do not install your VESA adapter in combination with the monitor in places where people are located below.
• Do not exceed the maximum weight of the compatible monitor models, as this may result in serious injuries or property damage.
• Pay attention to the maximum ambient temperature of 35°C when using the product.
• Do not mount the VESA adapter near a heat source or in direct sunlight, as this may cause the adapter to overheat.
• Check if your mounting point (e.g., monitor arm) can support the weight of the monitor with the VESA adapter.
• The product is designed exclusively for mounting with a hole pattern of 75x75 / 100x100mm / 200x200mm.
• After installing the VESA adapter, the position of the monitor must be readjusted to ensure proper ergonomics.
⚠ WARNING
Ensure that the device is turned off and disconnected from the power supply before installation to avoid possible injuries or damage.
Check the product carefully for possible transport damage and for the absence of accessories, such as screws, which should be included in the scope of delivery.
⚠ CAUTION
Make sure that packaging materials and small screws and parts contained therein are inaccessible to children to minimize the risk of choking and other risks.
2.1 Maintenance
- It is recommended to check every three months that all screws are still tight. Also, regularly check the condition of all components of the product.
- Store the product in a cool and safe place, ideally at a maximum storage temperature of 40°C. For additional safety, keep the product away from children and preferably in its original packaging.
- Avoid any vibrations and shocks so as not to affect the life and functionality of the product.
2.2 Cleaning
- No corrosive or hot cleaning agents should be used to clean the product. Likewise, wire brushes, metal or other sharp materials are unsuitable for cleaning and should not be used.
- For gentle and effective cleaning, the use of a soft, damp cloth is recommended.
For the disposal of this product we recommend to contact the responsible local authorities or disposal services. They can provide you with detailed information on available disposal options and recycling centers in your area.
3idee S.à r.l.
19 Rue de Bitbourg
L-1273 Luxembourg
Luxembourg
mail: info@3idee.eu
If you need help with your article, we are here for you. We also appreciate any feedback.
https://help.3idee.eu/en/contact
4x M4x14 screw with cross slot (SP1)

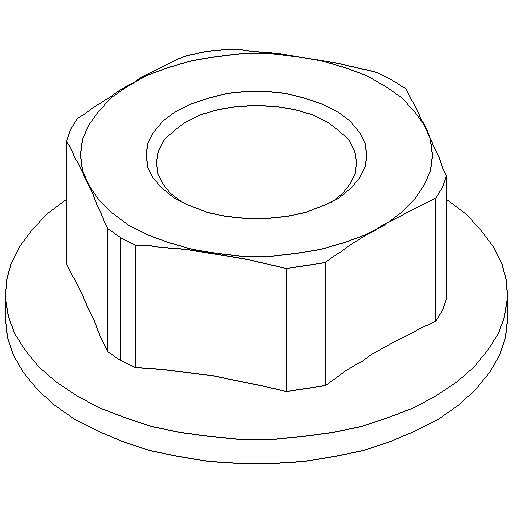

4x M4 lock nut (SP1)
1x M5x20 knurled screw

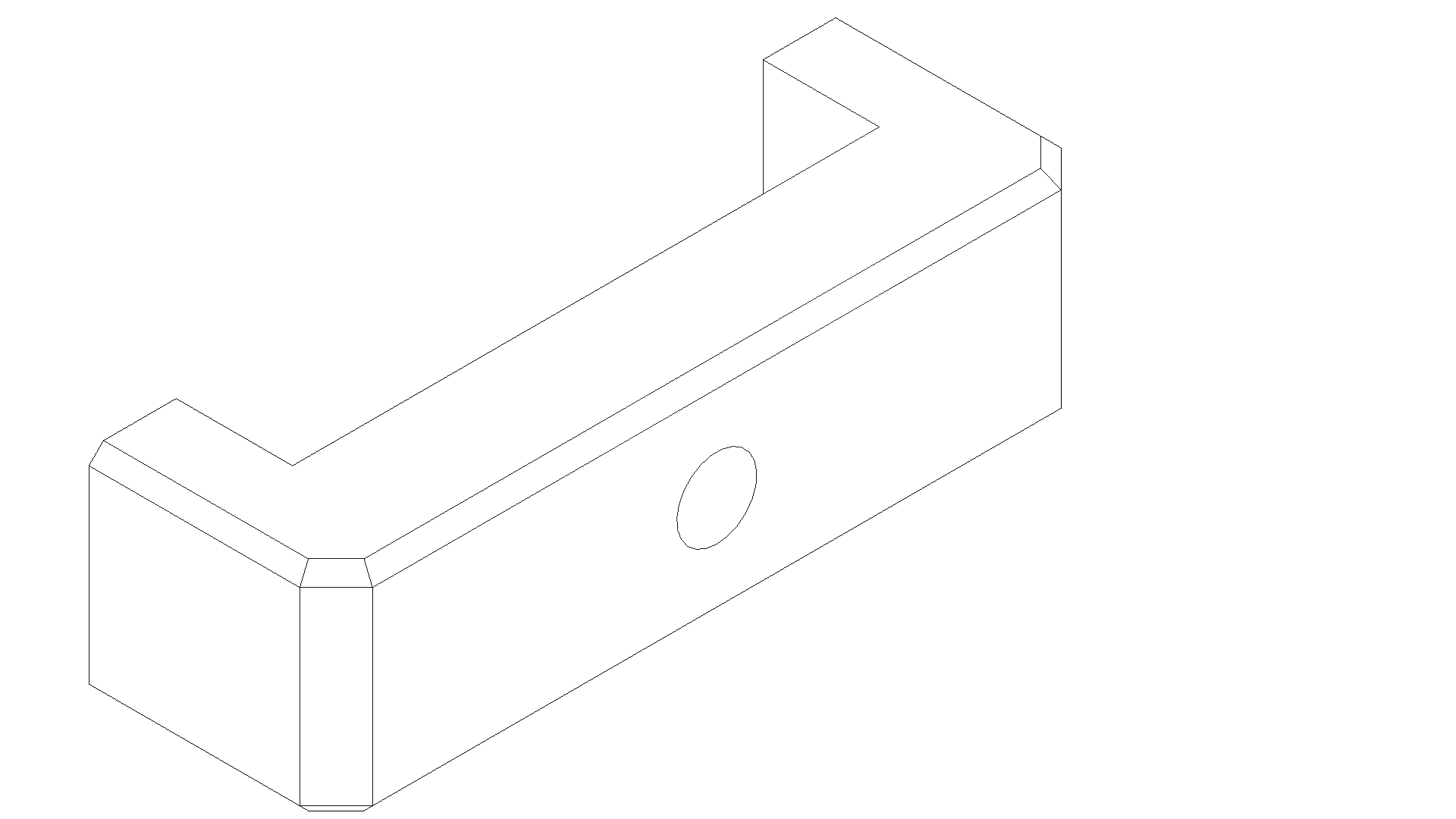

1x 24V2Q Part2 connector
⚠ NOTE: Please check before assembly that all accessory parts are complete. If anything is missing, please contact our customer service immediately by email or phone. We are happy to assist you.
Please note: Not all VESA adapters and monitors are designed for vertical (upright) orientation. This limitation is often due to the specific geometry of the adapter or monitor. Do not ignore this information, as the load limit of the adapter can quickly be exceeded if not installed properly.
We are continuously working on developing monitors and adapters that are also suitable for vertical orientation.
However, monitors are designed for horizontal alignment by default.
Horizontal Mounting: YES
Vertical Mounting: NO

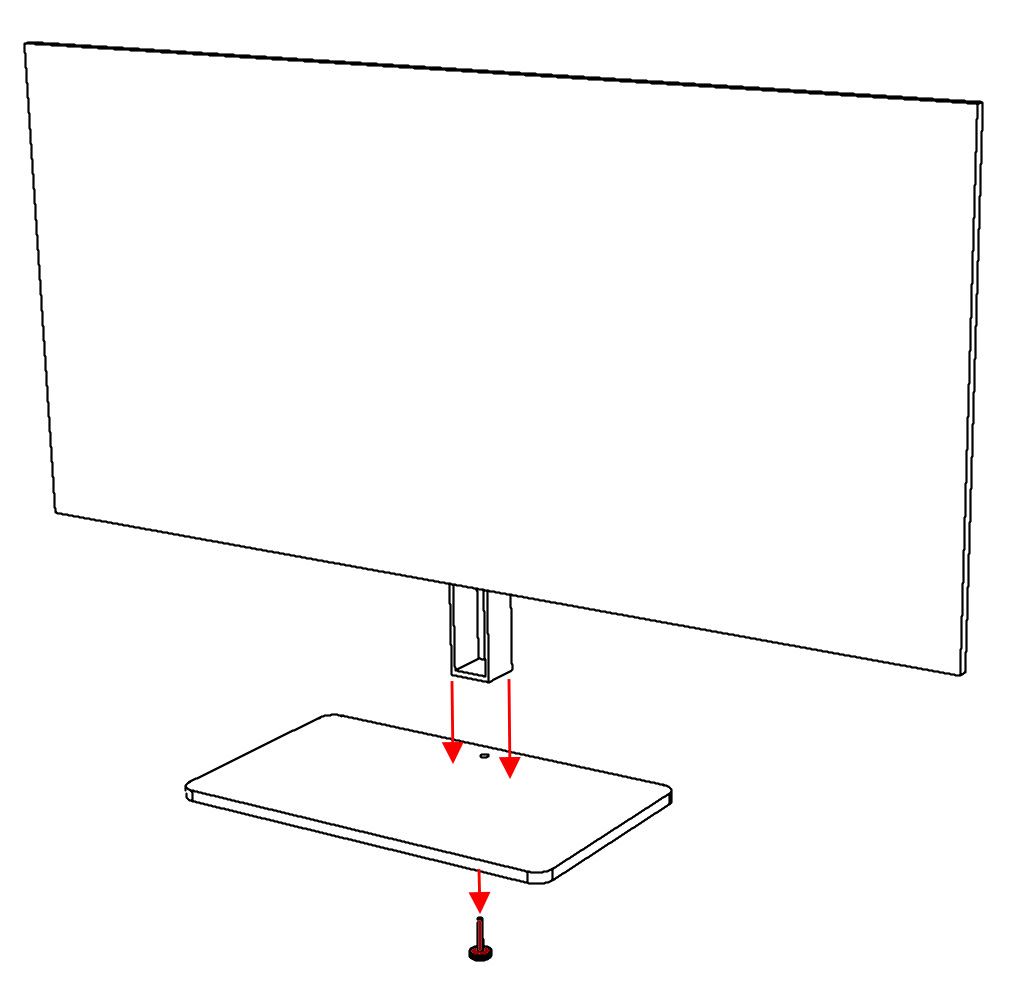

Remove the lower part of the base of your AOC monitor. (Figure 1)
Figure 1

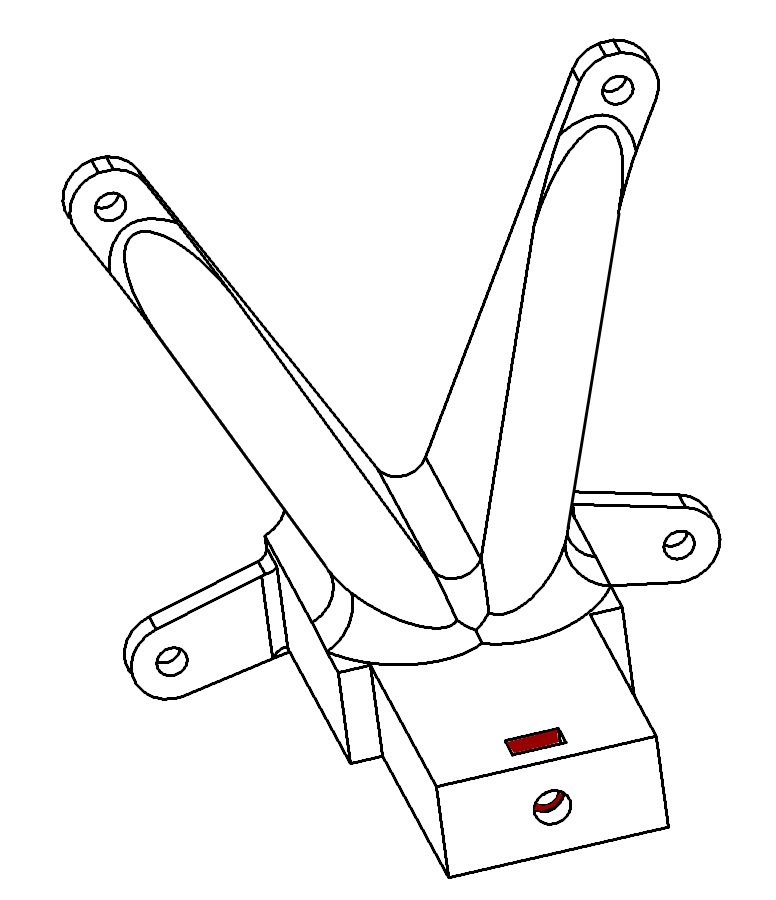

Check whether the square nut is still in the correct position.
This step is already taken care of in our production, but it may happen that the square nut falls out during longer transports by a shipping service provider. (Figure 2)
Figure 2
⚠ NOTE: If the instructions provided in this step are not suitable for your device, please follow the manufacturer's mounting guidelines for your monitor arm or swivel arm to attach the monitor to the wall or the swivel arm.

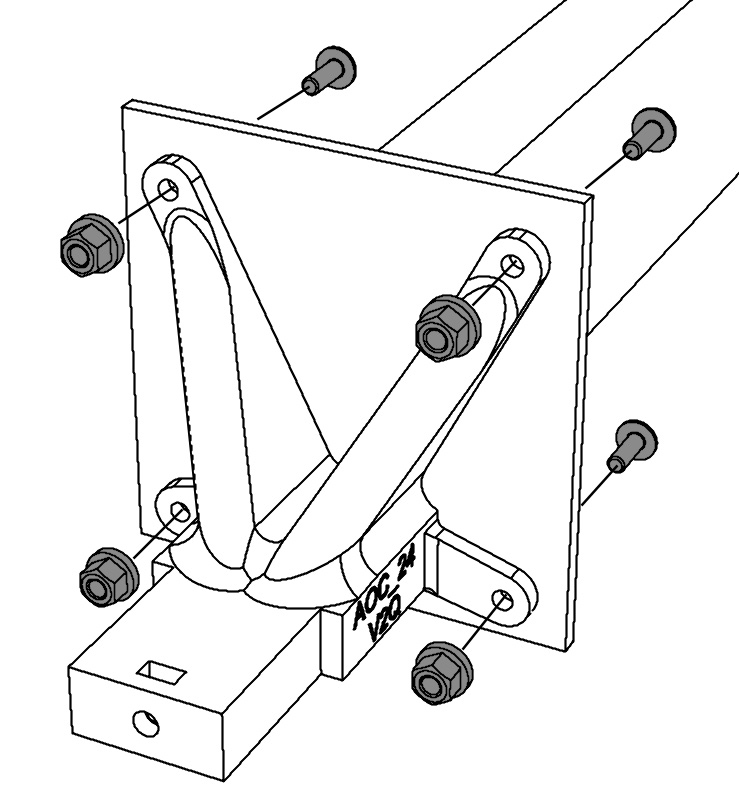

Now attach the VESA adapter to your monitor arm using the screws included in the package. (Figure 3)
Make sure to tighten the screws enough, but please remember that it is plastic.
Figure 3

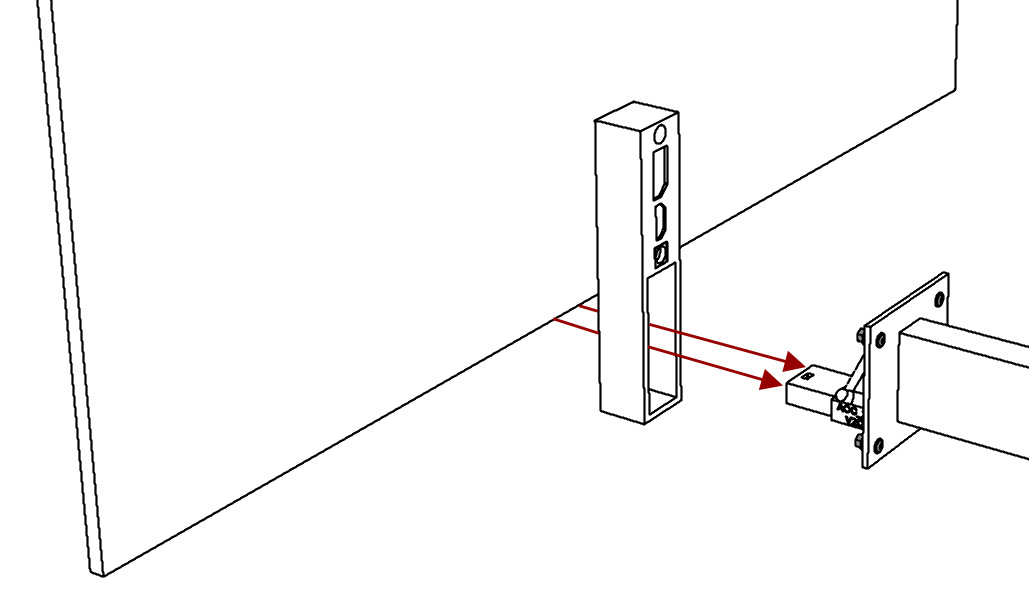

Now you can "slide" your AOC monitor onto the 3idee VESA adapter. Of course, you can determine the height yourself. (Figure 4)
Figure 4

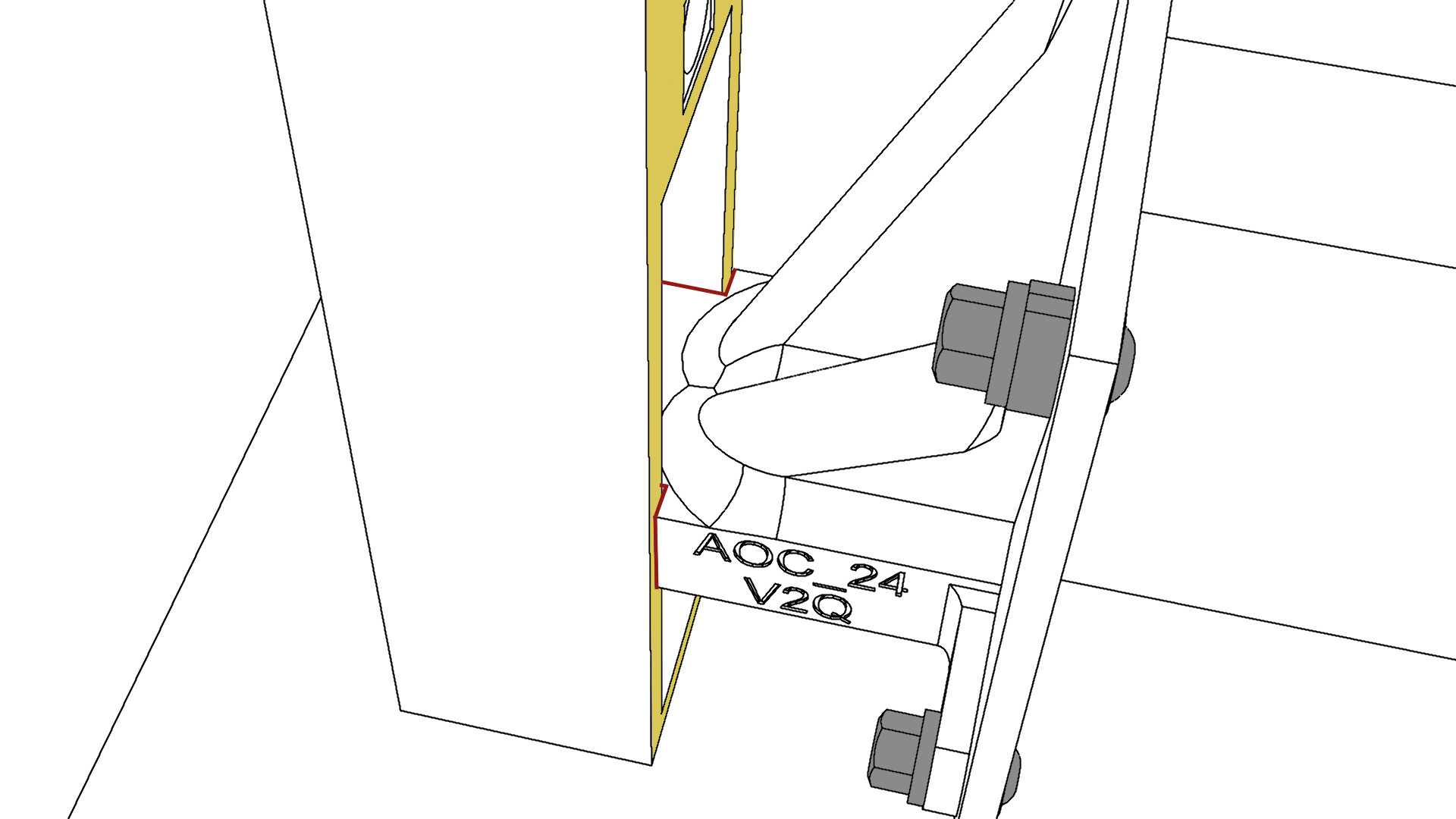

Now please check whether the screen has been correctly slid onto the VESA adapter. For this purpose, the rear surface of the screen base (yellow ) and the red marked area of the VESA adapter should be aligned. (Figure 5)
Figure 5

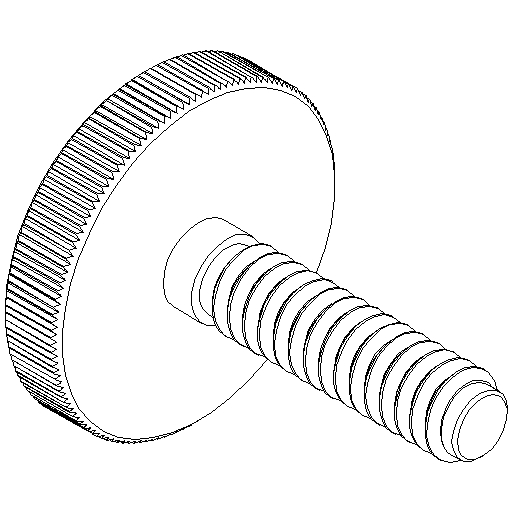

Now comes the small part of the 3idee bracket and the thumbscrew. (Figure 6)
This looks as shown and is in the product packaging.
Figure 6

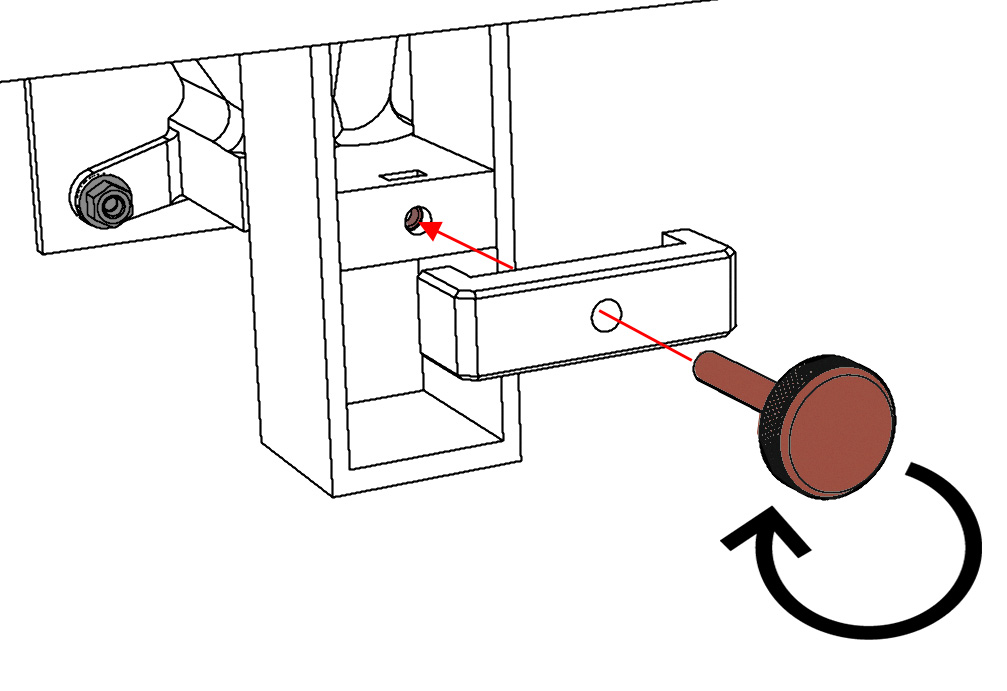

Now attach the "clamp" from step 6 to the 3idee VES adapter so that it holds your screen in place (Figure 7).

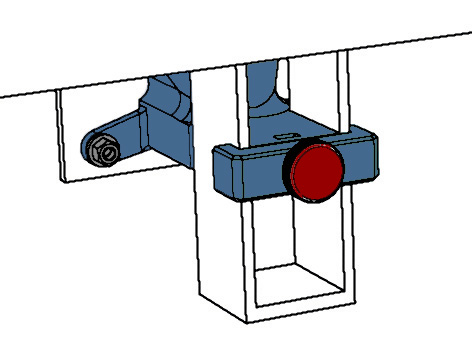

Check if the screen can still move in the bracket, if so, tighten the thumb screw (red) a little more.
Figure 7
Now your screen is fixed and you can enjoy your newfound space
